About the product

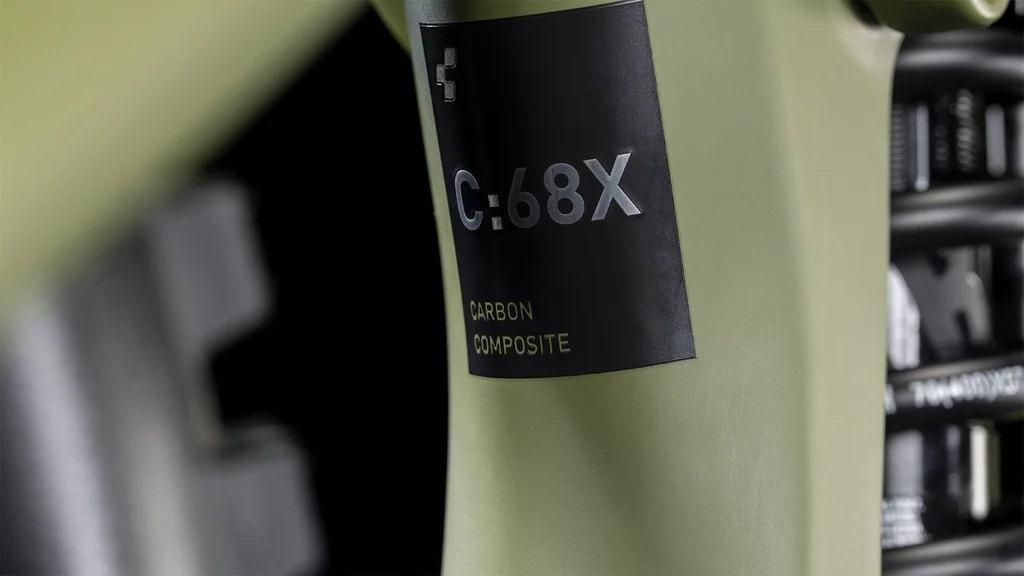

Improving perfection is difficult, but with the new Stereo ONE77 C:68X frame, we’ve done just that.The ultra-light frame weighs only 3.2 kg, and that weight difference is noticeable both on climbs and descents. It offers two mounting points for both coil and air shocks. A head angle adjustment insert allows you to switch between 63.8° and 64.4°.
There’s no built-in storage on the bike — a deliberate choice to reduce weight and increase durability. However, there is a mounting point under the down tube where tools can be attached.
Technology
Aluminum lite
Aluminum alloy 6061 is resistant to corrosion and stress, making it suitable for lightweight tubes with high stiffness.
Advanced Hydroforming
This method of production reduces the number of welds, reduces the mass of the frame and increases its durability.
Comfortable geometry
With a specially designed frame, you can also cycle longer distances.
Rear shock
The suspension works well in all conditions and can adjust to the weight of the cyclist.
Air suspension
The suspension works well in all conditions and can adjust to the weight of the cyclist.
Hydraulic brakes
Hydraulic brakes for maximum braking power in all conditions.
Boost 148 hubs
The Boost 148 mm technology provides accurate wheel guidance on each terrain.
Size table
Properly selected bike size is crucial for your safety and comfort. The appropriate size is selected based onour body height.
Specifications
| Frame | C: 68x® Monocoque Advanced Twin Mold Technology, Air/Coil Shock Mount Flip-Chip, ISCG, Boost148, UDH ™, 170mm Travel | ||||
| Fork | Rockshox Zeb Select+ RC2, Tapered, 15x110mm, 170mm | ||||
| Rear shock | Rockshox Super Deluxe Ultimate Coil, 230x65mm | ||||
| Wheel size | 29 '' | ||||
| Speeds | 12 gears | ||||
| Front lever | - | ||||
| Rear lever | SRAM GX EAGLE ™ Trigger | ||||
| Front derailleur | - | ||||
| Rear derailleur | SRAM GX EAGLE ™, 12-Speed | ||||
| Crankset | Shame GX EAGLE ™ Boost Dub, 30t | ||||

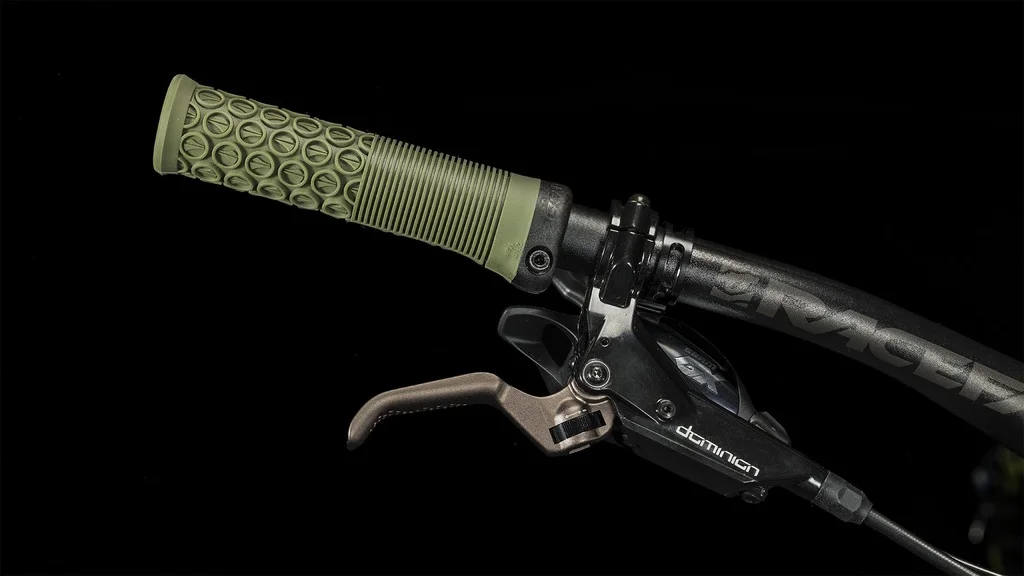

| Front brake | Hayes Dominion A4, Hydr. DISC Brake | ||||
| Rear brake | Hayes Dominion A4, Hydr. DISC Brake | ||||
| Front disk | 203 mm | ||||
| Rear disk | 180 mm | ||||
| Tyre | Tubeless Ready, 2.5 WT | ||||
| Rim | Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready / Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT | ||||
| Front hub | Newmen Evolution 15x110mm | ||||
| Rear hub | Newmen Evolution 12x148m | ||||
| Cassette | SRAM XG-1275 EALELE ™, 10-52T | ||||
| Handlebar | Race Face Turbine R 35, 800mm | ||||
| Steam | Race Face Turbine R 35 | ||||
| Seatpost | SDG Tellis, Handlebar Lever, Internal Cable Routing, 31.6mm | ||||
| Sadlle | SDG BEL AIR V3 Lux Alloy | ||||
| Pedals | CUBE PP MTB | ||||
| Front light | - | ||||
| Rear light | - | ||||
| Payload | 130 kg | ||||
| Weight | 15.1 kg |
