About product
Cube Aim ONE salmon and black
Rugged. Simple. Dependable. Because we wanted the Aim ONE to just get out of your way and let you enjoy the ride, we gave it Shimano's reliable and easy-to-use Cues 1x9 gears with a wide-ranging 11-46T cassette. We backed that up with a set of Shimano hydraulic disc brakes, which have the stopping power you need in any conditions, wet or dry. 2.25-inch-wide tyres roll effortlessly over forest tracks, gravel and tarmac, whilst the Suntour suspension fork with 100 mm of travel noticeably smooths out roots, stones and potholes. Clever: thanks to the CUBE Size Split System, everyone can find the right frame size for maximum riding enjoyment.
Highlights:
Aluminum frame
Shimano Cues RD-U4000-GS, 9-speed with 1 x 9 gears
Shimano BR-MT200/UR300, hydraulic disc brakes, Shimano PM/FM (160/160) brake discs
SR Suntour XCS, 100 mm travel
Shimano Cues RD-U4000-GS, 9-speed with 1 x 9 gearsShimano BR-MT200/UR300, hydraulic disc brakes, Shimano PM/FM (160/160) brake discsYou'll notice that the Aim's High Performance Aluminium frame features almost organic lines, carefully crafted tube profiles and joints that are so smooth, one tube practically flows into the next. None of that is an accident – we believe a frame that functions brilliantly should also have an elegant form. To that end, we routed cables internally – including provision for a dropper seatpost. Mounting points include compatibility with our Semi-Integrated Carrier 2.1 and a flat mount kickstand, while a tapered head tube ensures confidence-inspiring handling and the replaceable gear hanger means it's easy to get up and running again in the event of a knock to the derailleur.
Manufacturer number: 1140120
Model year: 2027
Specifications
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Frame material | Aluminium |
| Wheel size | Size Split: 27.5: XS, S // 29: M, L, XL |
| Speeds | 1 x 9 |

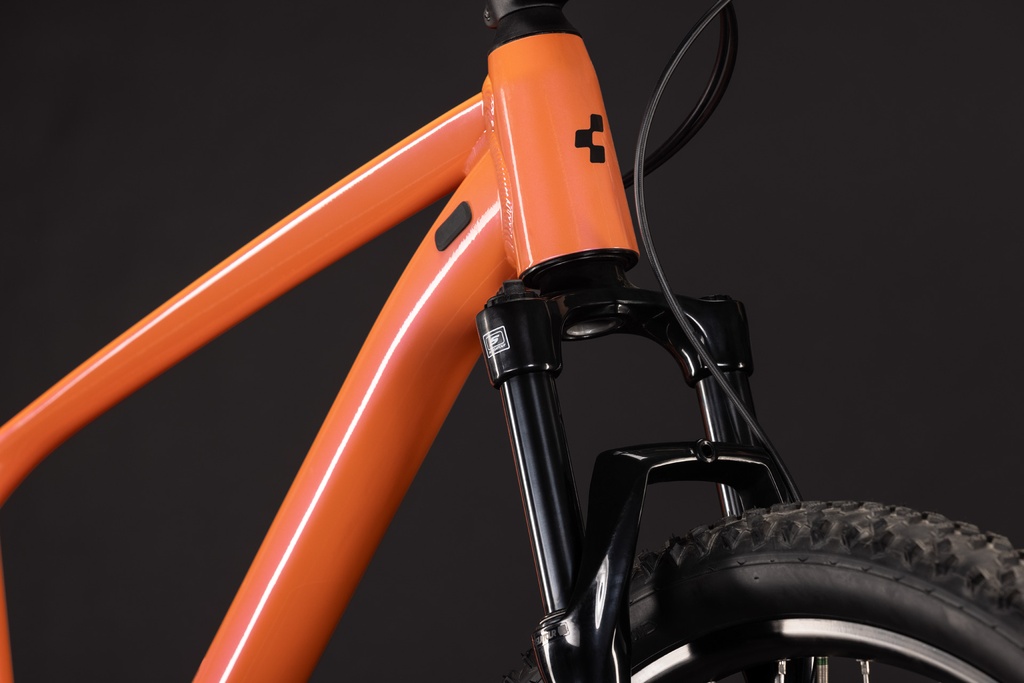

| Fork | SR Suntour XCE, 100mm |
| Travel | 100 mm |
| Brakes | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Brake discs | 160/160 mm |
| Headset | CUBE FPH863, Semi-Integrated |
| Stem | CUBE Performance Stem, 31.8mm |

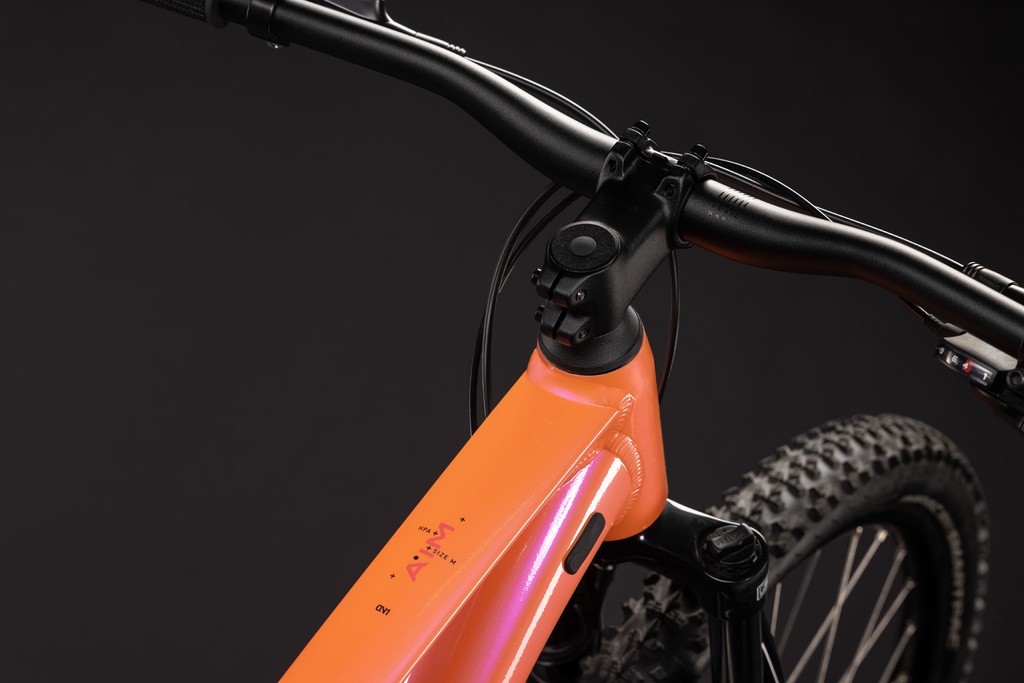

| Handlebar | CUBE Rise Trail Bar, 680mm |
| Grips | ACID Icon |
| Saddle | ACID Venec Lite |

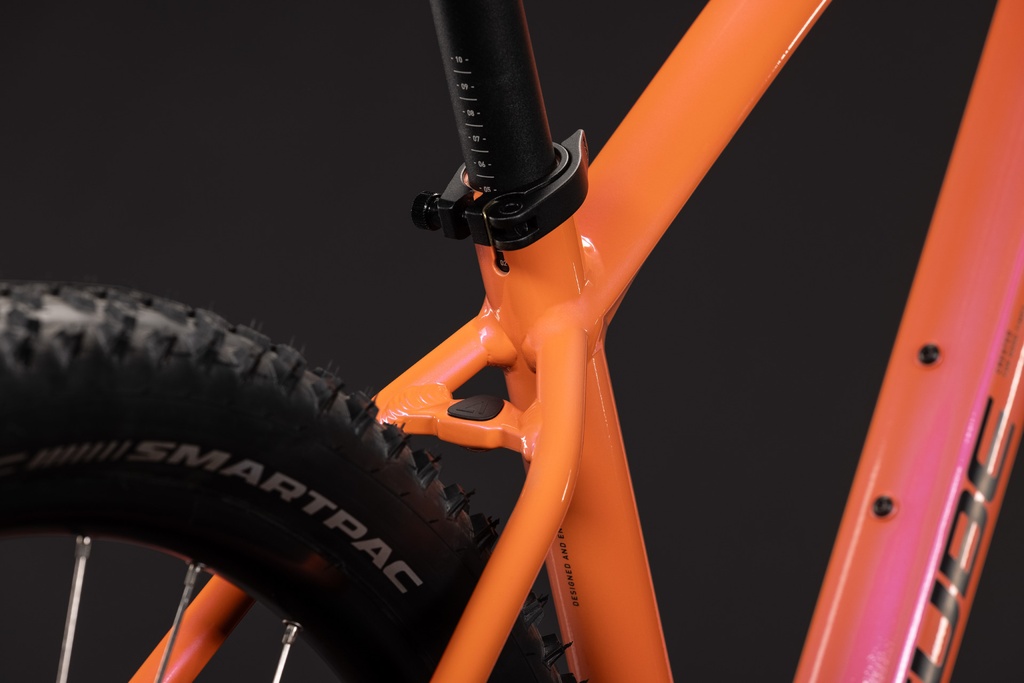

| Seatpost | CUBE Performance Post, 27.2mm |

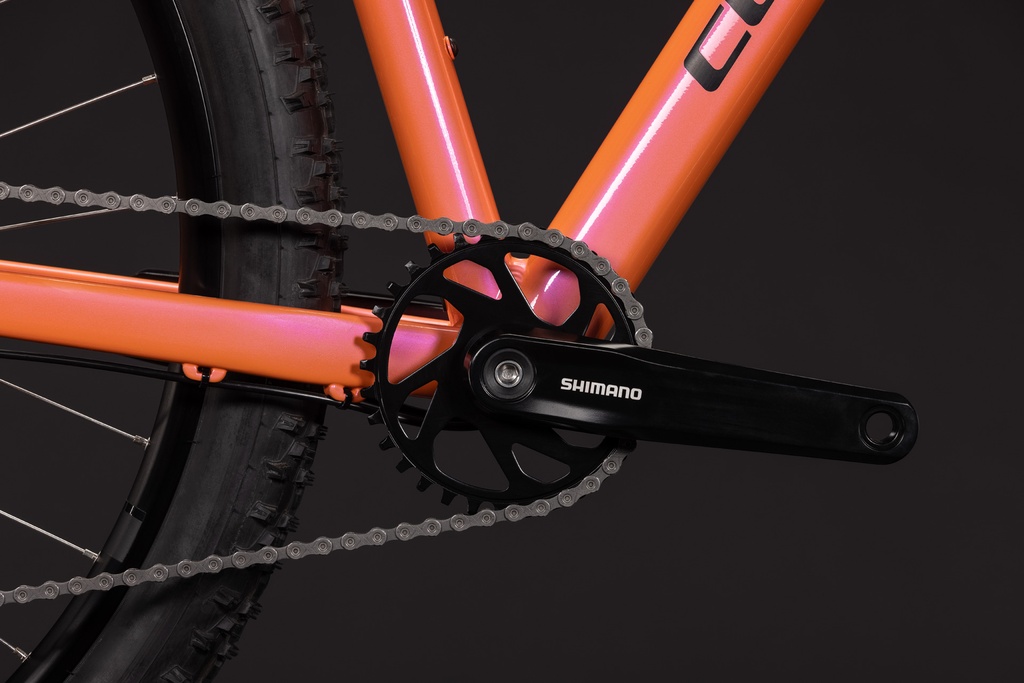

| Crankset | Shimano Cues FC-UT400, 32T |
| Bottom bracket | Thun Paso-ML, 73mm BSA |
| Rear derailleur | Shimano Cues RD-U4000-GS, 9-Speed |
| Gear shifters | Shimano Cues SL-U4010, Rapidfire-Plus |
| Front derailleur | - |
| Cassette | Shimano Cues CS-LG300, 11-46T |
| Chain | KMC Z9 |
| Tyre | CUBE MTB, Draht, 2.25 |
| Wheelset | ACID Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready |
| Pedals | CUBE PP MTB |
| Maximum total weight allowed | 140 kg (cyclist's weight + bike + equipment) |
| Weight | 15,1 kg |
Video
Size chart
Choosing the correct frame is key to a comfortable and safe ride. Based on your height and inseam length, our frame size calculator helps you find the ideal size for optimal comfort, control, and riding efficiency.
