About the product

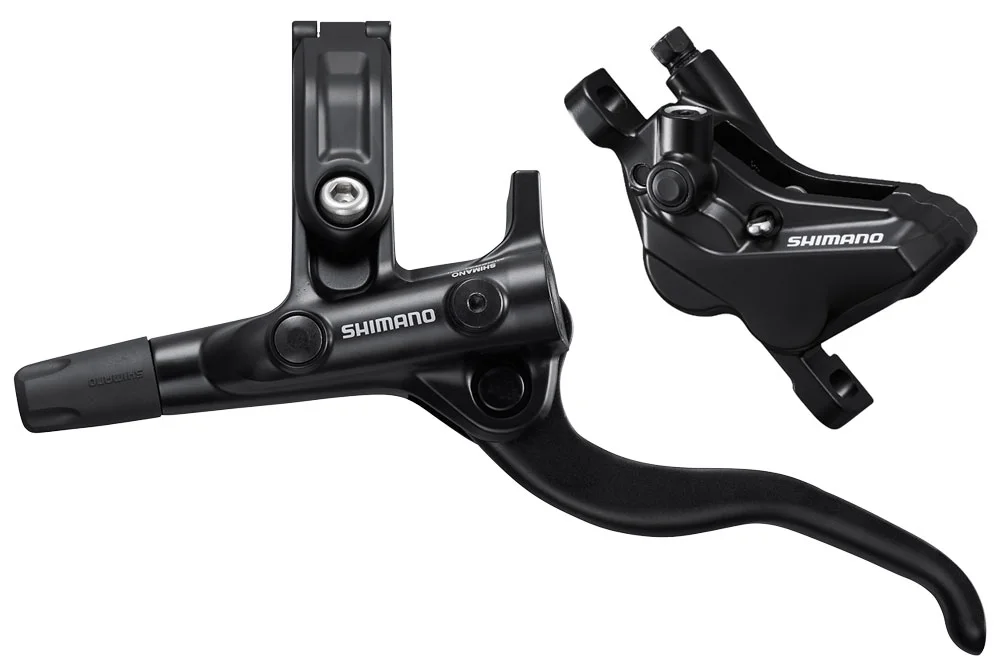

Shimano DEORE BL-M4100 / BR-MT420 Hydraulic Disc Brake – 1000 mm (Front)
The Shimano DEORE BL-M4100 brake lever (2-finger) combined with the BR-MT420 4-piston caliper delivers powerful, precise braking performance that fits seamlessly into the DEORE M4100 component lineup.
Key Features
-
Strong and intuitive braking with 4-piston caliper
-
Quick response with shorter free stroke
-
Optimized ergonomics with 2-finger brake lever
-
Increased stiffness thanks to an additional contact point on the lever
-
Easy maintenance with One-Way Bleeding system
-
I-Spec EV compatibility (mount shifter directly on the brake lever)
Technical Specifications
-
Use: MTB
-
Group: Shimano DEORE M4100
-
Model: BL-M4100 / BR-MT420 (front)
-
Brake type: Hydraulic disc brake
-
Brake lever: BL-M4100, 2-finger, left side, open clamp
-
Mounting system: I-Spec EV (not compatible with I-Spec II or I-Spec B)
-
Reach adjustment: Yes (with tool)
-
Caliper: BR-MT420, 4-piston, Postmount
-
Brake pads: D03S Resin (without cooling fins)
-
Brake hose: SM-BH90-SS, front 1000 mm (shortenable)
-
Hose connection: Straight (lever & caliper)
-
Bleeding: One-Way Bleeding
-
Brake fluid: Mineral oil (eco-friendly, non-toxic, non-corrosive)
-
Recommended rotors (sold separately): SM-RT64, SM-RT66 (140, 160, 180, 203 mm)
Materials
-
Lever: Aluminum
-
Caliper: Aluminum
Color
-
Black
Weight
-
Approx. 297 g (without rotor and adapter)
The scope of the package
1x Shimano DEORE BL-M4100 / BR-MT420 Hydraulic Disc Brake – 1000 mm (Front)
