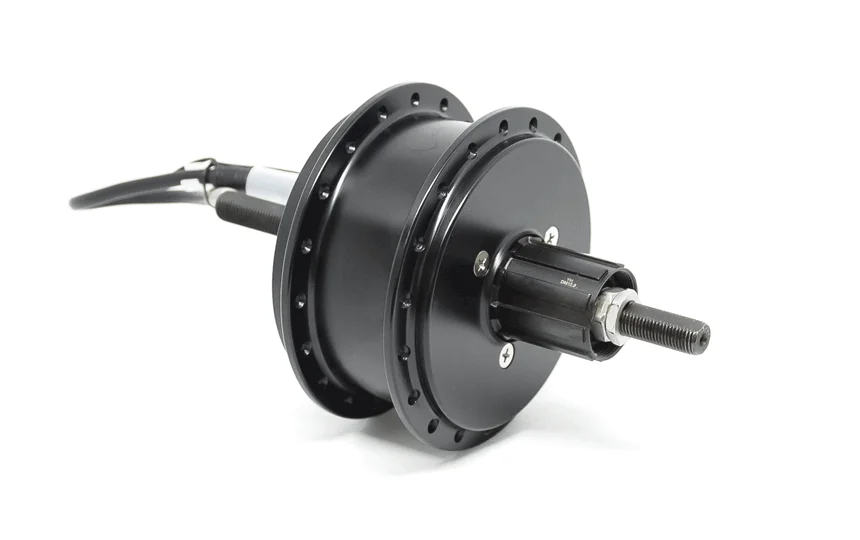

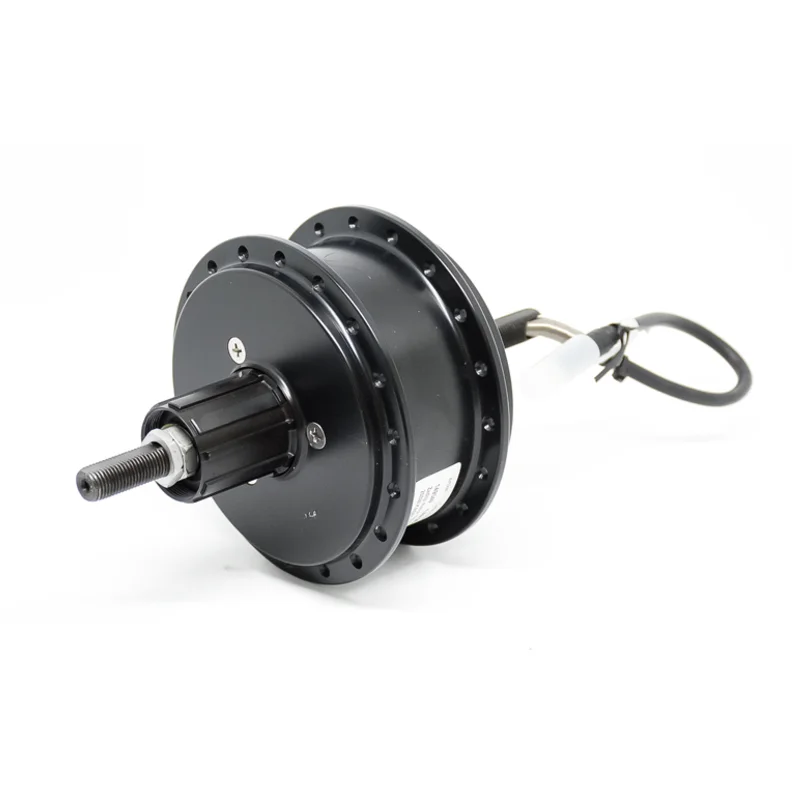

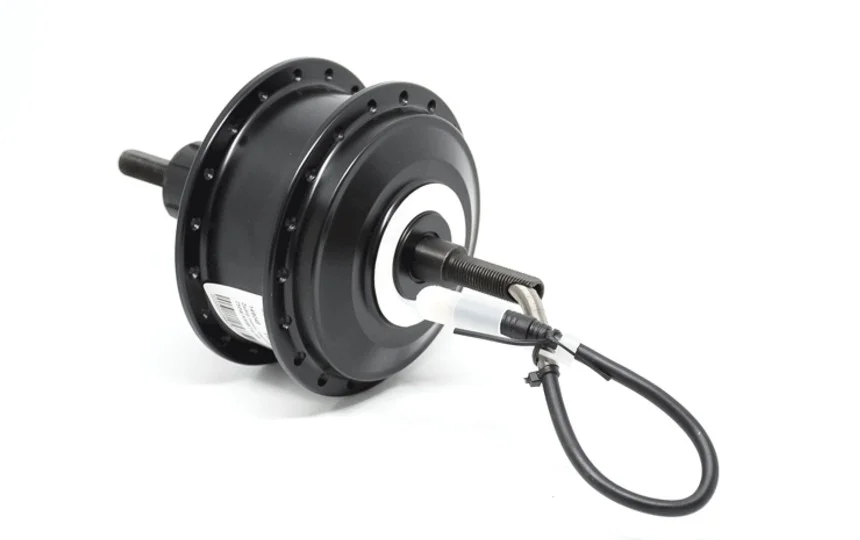

Zadnji motor TSD100R 36V 250W KASETA
Z motorjem na zadnjem kolesu boste imeli občutek, kot da imate veter v hrbet. Ker je motor v zadnji pesti je tudi neviden in kolo izgleda bolj elegantno. Poleg tega je njegovo krmiljenje enostavnejše, saj je teža z zadnjim motorjem celotnega kolesa manjša. Motor je primeren za mestno kolesarjenje kot tudi za vožnjo po manj strmih klancih.
| Dimension H1 | 109mm |
| Dimension H2 | 120mm |
| Dimension W1 | 10mm |
| Dimension W2 | 41mm |
| Dimension W3 | 15.5mm |
| Dimension W4 | 47mm |
| Dimension W5 | 25mm |
| Dimension w6 | 28mm |
| Dimension OLD | 142.5mm |
| Nominal tension | 36v |
| Nominal power | 250W |
| The size of the supported wheels | 12 "of 28" |
| Max. navor | 35nm |
| Speed | 25km/h |
| Weight | 2.2 kg |
| IP protection | 65 |
| Izkoristek | ≥80 |
| The temperature range of operation | from -20 to 45 ° C |
Attributes
| Others | |
|---|---|
| Brand | TongSheng |
