Bosch Kiox 400C (BRC3200) - Display for The Smart System

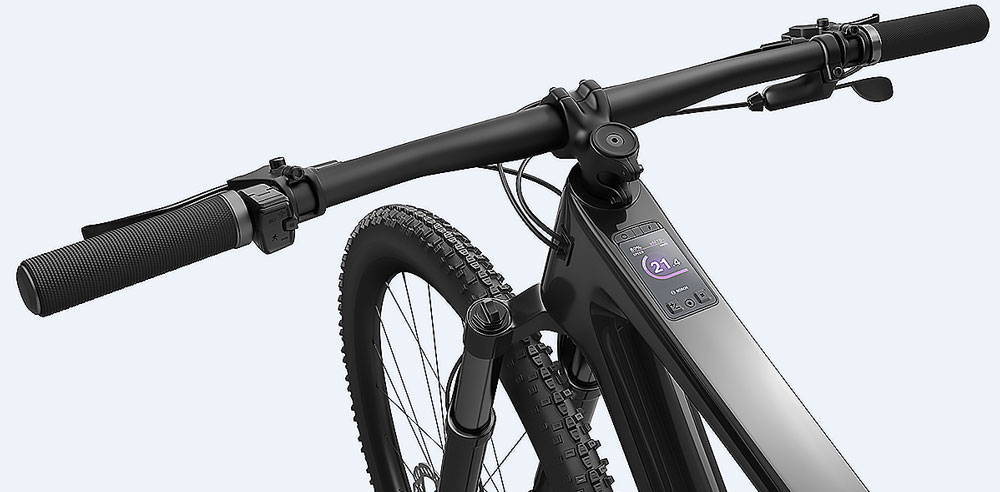

The Bosch Kiox 400C is a color display designed for e-mountain bikes and the Bosch Smart System. The display is seamlessly integrated into the frame's top tube, where it is well-protected against impacts and vibrations, even during demanding rides and fast descents.
The 2.0-inch color display, with high brightness of up to 1,000 cd/m², ensures clear data visibility. It can be customized via the eBike Flow app with over 30 display options, supports navigation with audio prompts, and allows for the charging of external devices via USB-C.
Key features
- 2.0" (5.1 cm) color display
- Brightness up to 1,000 cd/m²
- Automatic brightness adjustment based on ambient light
- Top tube mounting
- Highly resistant to impacts and vibrations
- Dynamic information display without manual screen switching
- Navigation with audio alerts
- Over 30 display customization options via the eBike Flow app
- USB-C port for charging external devices
- Expandable with the Mini Remote controller
- Powered by the e-bike battery and an internal battery
Technical specifications
- Model: Bosch Kiox 400C
- Designation: BRC3200
- System: Bosch The Smart System
- Display size: 2.0" / 5.1 cm
- Dimensions (H × W × D): 45 × 86 × 20 mm
- Maximum typical brightness: 1,000 cd/m²
- Charging port: USB-C
- Color: Black
- Weight: 57 g
Package contents
- 1 × Bosch Kiox 400C (BRC3200)
- 1 × screw EB1320009N
- 1 × operating and installation instructions
