About product

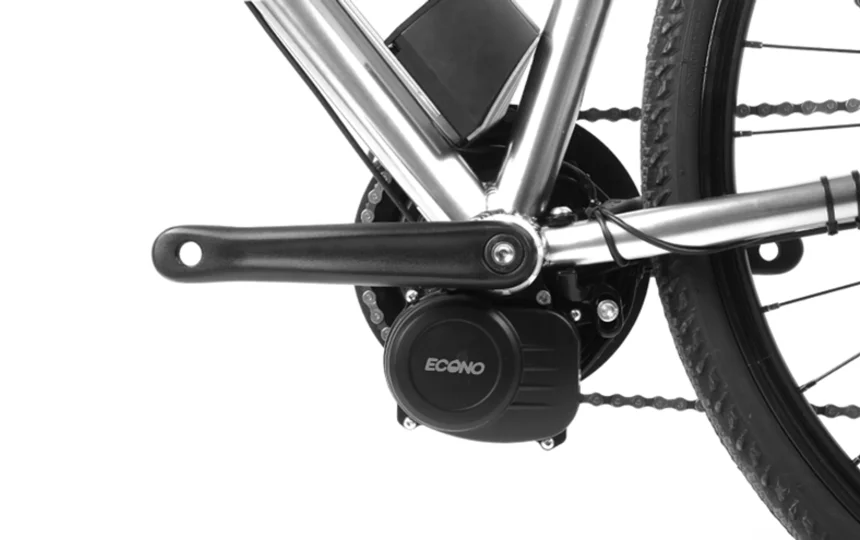

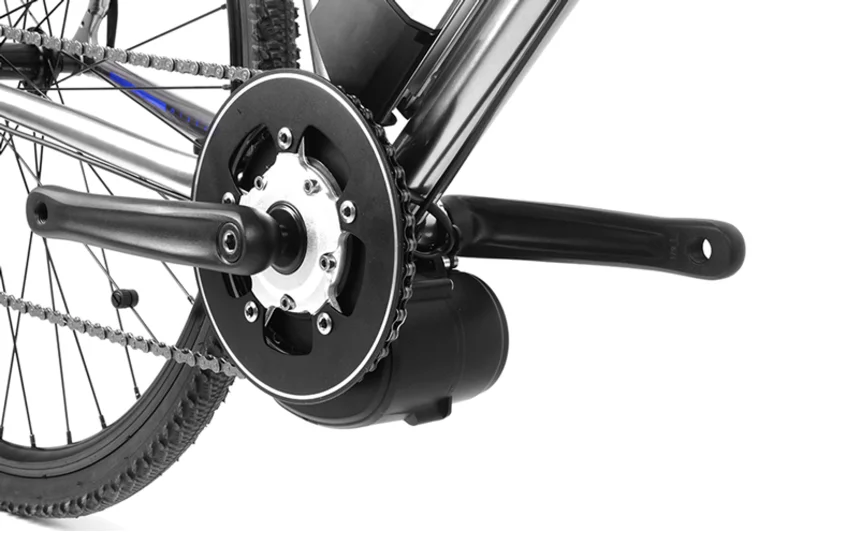

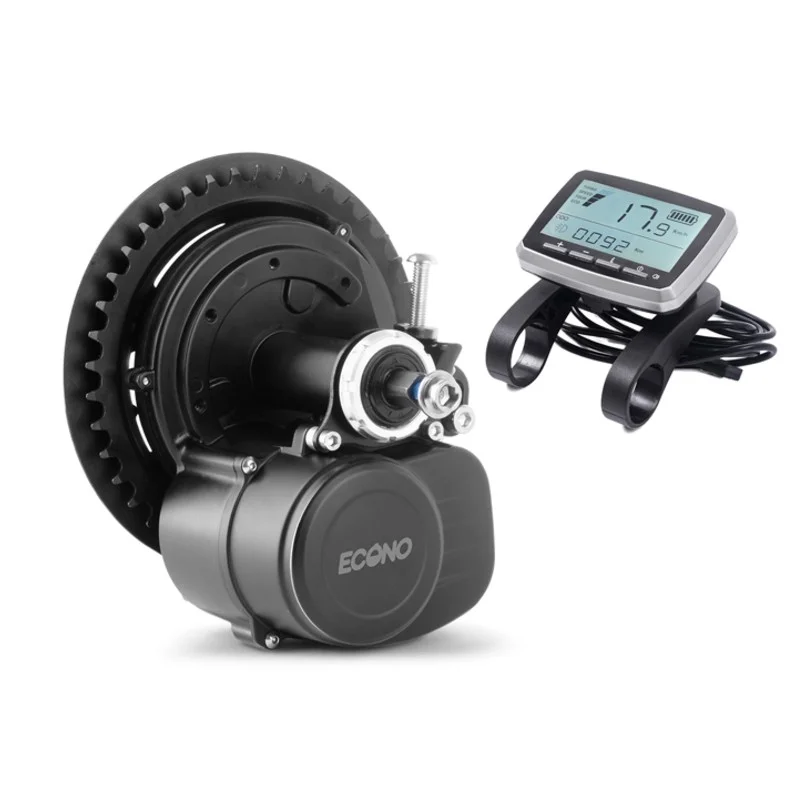

The econo mid-electric motor for the processing of your ordinary bicycle into an electric ono. It is very elegant in shape and weighs 3.6 kg. The engino has a torque sensor, which means that the engino detects the power with which you press the pedals and helps you with proportionally the same power, depending on the level of help you are selected. As a result, the power consumption is lower compared to enginos without a torque sensor. The quiet and smooth operation of the engino ensures a comfortable and safe ride wherever you go. Excellent operation both on the plano and in the hill thanks to 80 nm torque. Simply install it by removing the driving bearing on the wheel, inserting the motor and attaching the supplied motors. You have as much as 4 levels of assistance.  Depending on the level of assistance chosen, the engino helps us with a minimum of 36 and a maximum of 300% glede per own power input.

Engino specifications

Display specifications

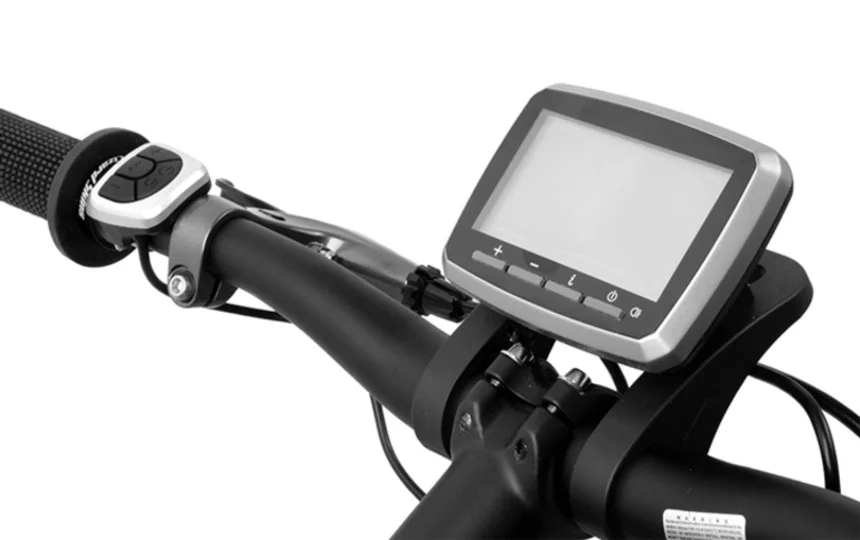

The VLCD5 display is compatible with the Central Econo enginos. It is distinguished by the big screen and transparency. The screen shall be placed in the centre of the handlebar. also includes the control unit which is placed on the side of the handlebar noxt to the gear levers.

• 4 rates of aid,

• battery charge indicator,

• instantanoous driving speed (km/h),

• average driving speed (km/h),

• kilometres travelled (TRIP),

• total kilometres travelled (ODO),

• turn on lights

• Walk Assist (6km/h)

• driving time

• backlight

• for voltages 20 to 60V

• dimensions 102 x 95 x 103mm

• operating in a temperature range between -20 and 45°C

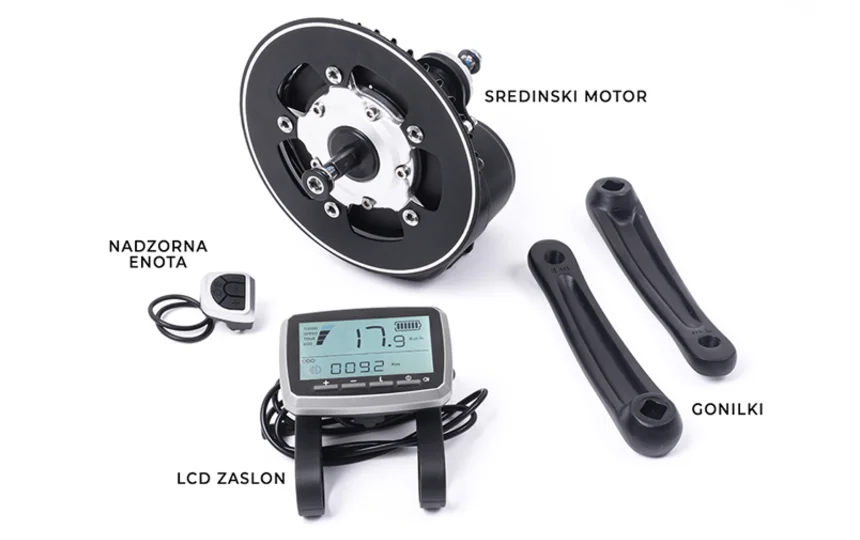

Package included

• 1x central motor 36 in 250 w

• 1x LCD display VLCD5

• 2x driver

• 1x controller for LCD display

• 1x speed sensor

• 1x assembly tool
