About product

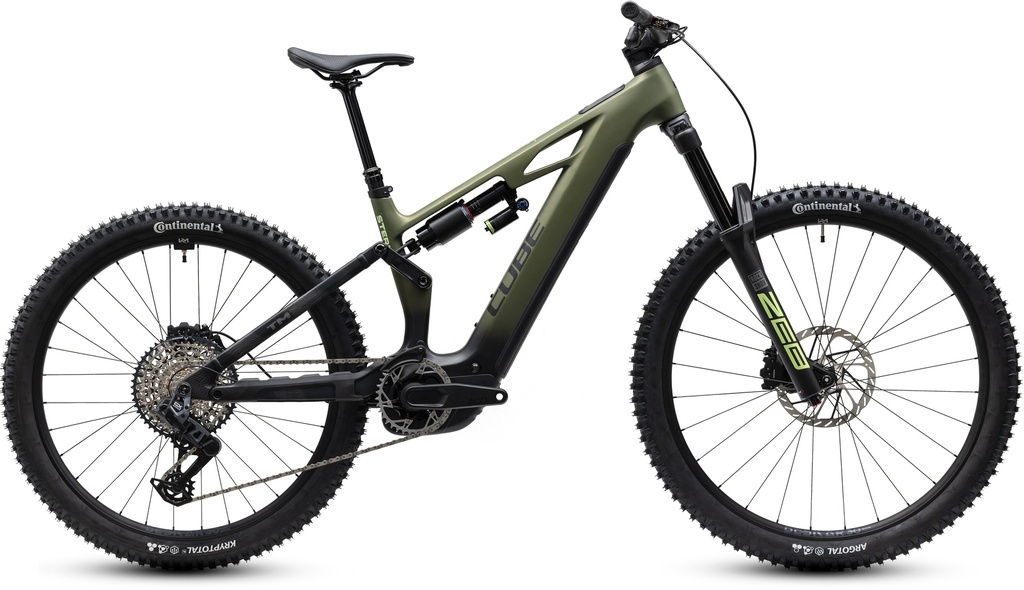

Cube Stereo Hybrid ONE77 HPC TM 800 reedgreen´n´gillse
In keeping with CUBE Trail Motion tradition, the Stereo Hybrid ONE77 HPC TM is something rather special. For starters, we fed the power of the Bosch CX drive and 800Wh PowerTube battery through Sram's GX Eagle Transmission 1x12 gears for effortless ratio selection and incredible electronic precision – and the Kiox 400C display shows you exactly what's going on. Next, we chose a RockShox Zeb Select+ fork and paired it with a Vivid Select shock. Together, they provide 170mm of travel – with loads of adjustment – to help keep the rubber side down. Speaking of which, the mullet Newmen Beskar 30 wheelset is shod with Continental's grippy Argotal and Kryptotal 2.4in tyres. Which is a good thing, because all that traction helps the powerful Sram Maven Bronze hydraulic disc brakes do their job. Combined with a remote dropper seatpost, it's everything you need to pick a fight with gravity and come out on top.
Highlights:
High-quality frame: front part made of carbon, rear triangle made of aluminum, internally routed cables, UDH derailleur hanger, designed for a maximum system weight of 150 kg
Motor Bosch Performance Line CX Gen.5 Smart System s 120 Nm
Bosch PowerTube 800 Wh battery for long range
Bosch Kiox 400C display, System Controller integrated into the frame, and Mini Remote on the handlebar for easy system control
RockShox ZEB Select+ Charger 3.2 fork (170 mm travel) and RockShox Vivid Select rear shock
Sram GX Eagle AXS™ drivetrain
Sram Maven Bronze hydraulic 4-piston disc brakes with 200 mm rotors s 200 mm rotorji
Durable and lightweight Newmen Beskar tubeless-ready wheels in a mullet configuration
The frame offers 170 mm of travel front and rear, combined with a mullet wheel setup (29" front, 27.5" rear), providing an ideal balance of stability and agility. Internal cable routing is complemented by an adjustable headset for fine-tuning handling. The 800 Wh PowerTube battery is discreetly integrated into the carbon down tube above the Bosch CX motor. The rear aluminum triangle features a UDH dropout for robustness and future compatibility, while the Direct Mount chain guide ensures reliable power transfer even on the most demanding descents.
Manufacturer number: 1104600
Model year: 2027
Specifications
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
| Frame material | Front: Carbon, Rear: Aluminium |
| Wheel size | Mullet, Front: 29" / rear: 27.5" |
| Speeds | 1 x 12 |
| Fork | RockShox Zeb Select+ Charger 3.2 RC2 Air, Tapered, 15x110mm, 170mm |
| Rear Shock | RockShox Vivid Select, 230x65, Rebound Adjust, 2-Position Lever |
| Travel | 170 mm / 170 mm |
| Brakes | Sram Maven Bronze, Hydr. Disc Brake (200/200) |
| Brake discs | 203/203 mm |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interfac |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | CUBE Rise Trail Bar 35 VariGrip System |
| Grip | ACID Endure VariGrip System |
| Saddle | ACID Venec EMTB Trail 140 |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Crankset | ACID MTB Hybrid Pro, 36T |
| Rear derailleur | Sram GX Eagle AXS™ Transmission, 12-Speed |
| Gear shifters | Sram AXS™ Pod Controller |
| Chain guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
| Cassette | Sram XS-1275, 10-52T |
| Chain | Sram GX Eagle™ Transmission |
| Front tyre | Conti Argotal, Enduro Soft, Tubeless Ready, 2.4 |
| Rear tyre | Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4 |
| Wheelset | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Display | Bosch Kiox 400C, Bosch System Control incl. Mini Remote |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 2A |
| Motor | Bosch Drive Unit Performance Line CX Gen.5 max. 120Nm (BDU38) |
| Bearing dimension | Front: 30x8mm, Rear: DU-Bushing 12,7mm |
| Maximum total weight allowed | 160 kg (tbody weight + bike + equipment) |
| Weight | Starts24,7 kg |
Video
From 2:13:42 to 2:18:57 Stereo Hybrid ONE77
Technologies
Fully integrated battery
The Fully Integrated Battery system hides the power of the Bosch battery inside the bike’s down tube. The battery is protected by a splash- and dust-proof cover and can be locked to prevent theft. This results in an elegantly designed frame that combines aesthetic appeal with practicality.
Advanced internal cable routing
Gear and brake cables run entirely through the frame—without any additional holes near the headset. Bikes with cable routing through the headset have a clean, elegant look with no unnecessary visual distractions.
Modular Battery System
The battery is the heart of the e-bike. The Modular Battery System makes it easy to use—you can charge the battery on the bike or remove it. The frame also has enough space for higher-capacity batteries, ensuring you always have plenty of range.
Semi-integrated seatpost clamp
The discreet Semi Integrated Seatpost Clamp blends seamlessly with the frame’s design, providing a clean look and reducing the chance of snagging the bike when carrying it.
Boost148
A wider hub means a stiffer and stronger wheel, resulting in better handling. The Boost148 standard allows for greater flange spacing, improving wheel performance without affecting shifting or drivetrain efficiency.
Agile Trail Geometry
Agile Trail geometry is designed for riders who enjoy pushing their limits. A lower frame height and more room for movement provide freedom on the trails and reward bolder line choices.
Universal Derailleur Hanger (UDH)
The Universal Derailleur Hanger provides a standardized solution compatible with all drivetrains. It reduces the risk of chain jams, improves shifting performance, and is widely available as a replacement part.
Adjustable headset angle
With the Adjustable Headset Angle, you can fine-tune the bike’s geometry—slacker for more stability on descents or steeper for increased agility on technical sections.
High Performance Carbon (HPC)
Using HPC – High Performance Carbon, Cube designs lightweight, stiff, and durable frames. Careful design and variable carbon layer thickness achieve an optimal balance of weight, stiffness, and durability.
Advanced Twin Mold
The Advanced Twin Mold process uses two precise molds to ensure each carbon fiber is accurately placed and held in position during frame curing. The result is a lighter, stronger frame with optimally distributed fiber density.
Flat Mount kickstand
The Flat Mount kickstand allows you to park your bike anywhere, providing a secure and stable stand on flat surfaces.
Efficient Trail Control
The Efficient Trail Control system ensures sensitive suspension response on rough terrain while minimizing pedal-induced bobbing. This means full use of the travel and more fun on the trail.
Size chart
Choosing the correct frame is key to a comfortable and safe ride. Based on your height and inseam length, our frame size calculator helps you find the ideal size for optimal comfort, control, and riding efficiency.
