You can tell from its purposeful stance and mullet wheel sizing that the Stereo Hybrid ONE77 HPC Race means business. But the devil, as always, is in the detail. The Bosch CX drive and 800Wh PowerTube battery work with Sram's Eagle 90 Transmission 12-speed gears to swallow tricky routes whole. Meanwhile, a pair of Magura MT Louise hydraulic disc brakes and 2.4in Schwalbe Magic Mary and Tacky Chan tyres have the grip you need to stay in control, whatever the trail throws your way. A RockShox Domain Gold fork and Super Deluxe Select shock help keep the rubber side down and rolling. And, with a remote dropper post thrown into the mix, the only question is which line you'll take back down the mountain.
About product

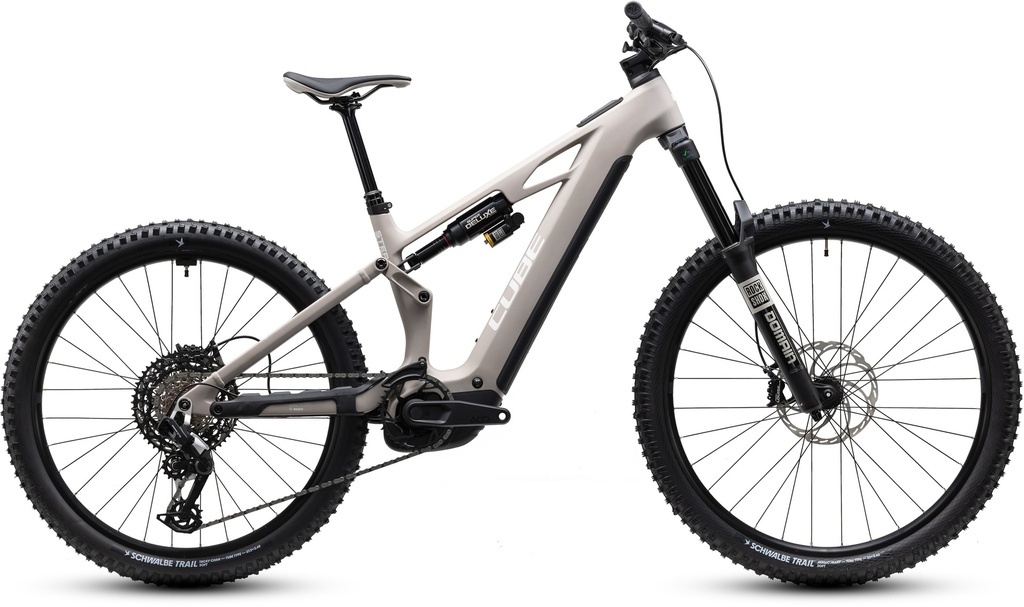

Cube Stereo Hybrid ONE77 HPC RACE 800 oatgrey´n´yellow
Highlights:
High-quality frame: front part made of carbon, rear triangle made of aluminum, internally routed cables, UDH derailleur hanger, designed for a maximum system weight of 150 kg
Motor Bosch Performance Line CX Gen.5 Smart System s 120 Nm
Bosch PowerTube 800 Wh battery for long range
Bosch Kiox 400C display and Mini Remote on the handlebar - for clear and intuitive e-bike system control
RockShox Domain suspension fork with 170 mm of travel and RockShox Super Deluxe Select rear shock.
SRAM Eagle 90 Transmission drivetrain
Magura MT Thirty hydraulic 4-piston disc brakes with 203 mm rotors
Strong and lightweight ACID SLX 30 tubeless-ready wheelset v mullet konfiguraciji
Detail matters. That's why the Stereo Hybrid ONE44 HPC is fitted with an angle-adjustable headset – allowing the Agile Trail Geometry to be tuned exactly to your preferences. Advanced Internal Cable Routing complements the frame's clean lines, while the integrated Bosch remote top tube controller shows exactly what's happening with the Bosch CX drive and 800Wh PowerTube battery. A Direct Mount chain guide keeps the gears running smoothly, and the future-proof UDH dropout adds durability and versatility. The frame is also X-Connect ready, so a compatible ACID front light can be plugged in easily. With a 170mm fork, 170mm of rear-wheel travel and Size Split for a wide range of sizes, it's the trail-ready e-MTB for any rider.
Manufacturer item no.: 1104300
Model year: 2027
Specifications
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
| Frame material | Carbon |
| Wheel size | Front: 29'' // Rear: 27,5'' |
| Speeds | 1 x 12 |
| Fork | RockShox Domain Gold RC3 Isolator Air, Tapered, 15x110mm, 170mm |

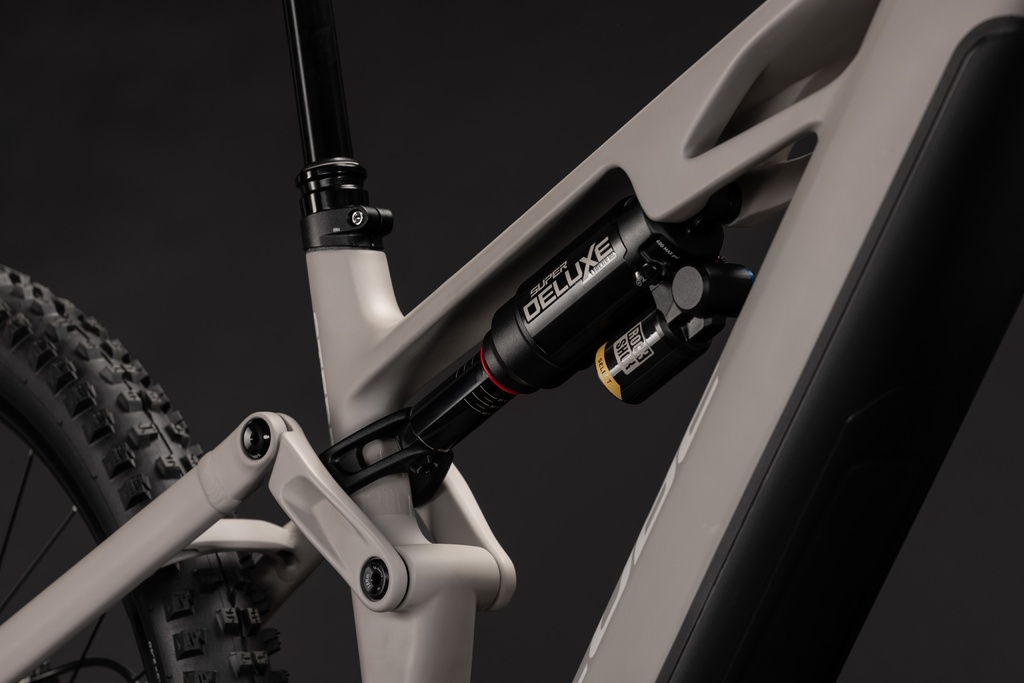

| Rear Shock | RockShox Super Deluxe Select, 230x65, Rebound Adjust, 2-Position Lever |
| Travel | 170 mm / 170 mm |
| Brakes | Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203 |
| Brake discs | 203/203 mm |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | CUBE Rise Trail Bar 35 VariGrip System |
| Grip | ACID Endure VariGrip System |
| Saddle | ACID Venec EMTB Trail 140 |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Crankset | ACID MTB Hybrid Pro, 36T |
| Rear derailleur | Sram Eagle 90 Transmission, 12-Speed |
| Gear shifters | Sram Eagle 70 Transmission, Single Click |
| Chain guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
| Cassette | Sram XS-1270, 10-52T |
| Chain | Sram Eagle 70 Transmission |
| Front tyre | Schwalbe Magic Mary, Performance, 2.4 |
| Rear tyre | Schwalbe Tacky Chan, Performance, 2.4 |
| Wheelset | ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Display | Bosch system control, Bosch Mini Remote |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 2A |
| Motor | Bosch Drive Unit Performance Line CX Gen.5 max. 100Nm (BDU38) |
| Bearing dimension | Front: 30x8mm, Rear: DU-Bushing 12,7mm |
| Maximum total weight allowed | 160 kg (tbody weight + bike + equipment) |
| Weight | Star at 25,1 kg |
Video
From 2:13:42 to 2:18:57 Stereo Hybrid ONE77
Technologies
Fully integrated battery
The Fully Integrated Battery system hides the power of the Bosch battery inside the bike’s down tube. The battery is protected by a splash- and dust-proof cover and can be locked to prevent theft. This results in an elegantly designed frame that combines aesthetic appeal with practicality.
Advanced internal cable routing
Gear and brake cables run entirely through the frame—without any additional holes near the headset. Bikes with cable routing through the headset have a clean, elegant look with no unnecessary visual distractions.
Modular Battery System
The battery is the heart of the e-bike. The Modular Battery System makes it easy to use—you can charge the battery on the bike or remove it. The frame also has enough space for higher-capacity batteries, ensuring you always have plenty of range.
Semi-integrated seatpost clamp
The discreet Semi Integrated Seatpost Clamp blends seamlessly with the frame’s design, providing a clean look and reducing the chance of snagging the bike when carrying it.
Boost148
A wider hub means a stiffer and stronger wheel, resulting in better handling. The Boost148 standard allows for greater flange spacing, improving wheel performance without affecting shifting or drivetrain efficiency.
Agile Trail Geometry
Agile Trail geometry is designed for riders who enjoy pushing their limits. A lower frame height and more room for movement provide freedom on the trails and reward bolder line choices.
Universal Derailleur Hanger (UDH)
The Universal Derailleur Hanger provides a standardized solution compatible with all drivetrains. It reduces the risk of chain jams, improves shifting performance, and is widely available as a replacement part.
Adjustable headset angle
With the Adjustable Headset Angle, you can fine-tune the bike’s geometry—slacker for more stability on descents or steeper for increased agility on technical sections.
High Performance Carbon (HPC)
Using HPC – High Performance Carbon, Cube designs lightweight, stiff, and durable frames. Careful design and variable carbon layer thickness achieve an optimal balance of weight, stiffness, and durability.
Advanced Twin Mold
The Advanced Twin Mold process uses two precise molds to ensure each carbon fiber is accurately placed and held in position during frame curing. The result is a lighter, stronger frame with optimally distributed fiber density.
Flat Mount kickstand
The Flat Mount kickstand allows you to park your bike anywhere, providing a secure and stable stand on flat surfaces.
Efficient Trail Control
The Efficient Trail Control system ensures sensitive suspension response on rough terrain while minimizing pedal-induced bobbing. This means full use of the travel and more fun on the trail.
Size chart
Choosing the correct frame is key to a comfortable and safe ride. Based on your height and inseam length, our frame size calculator helps you find the ideal size for optimal comfort, control, and riding efficiency.
