About product

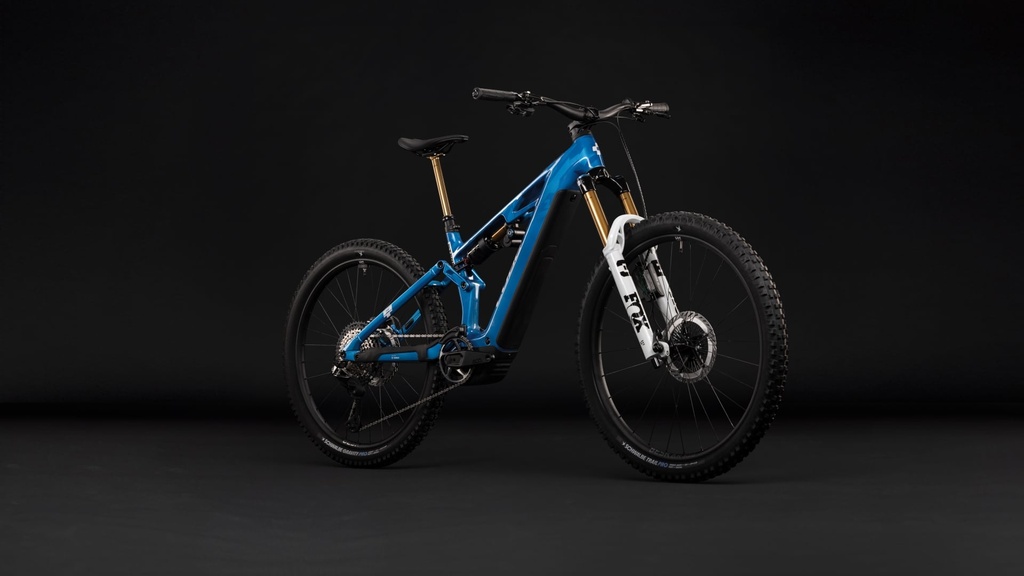

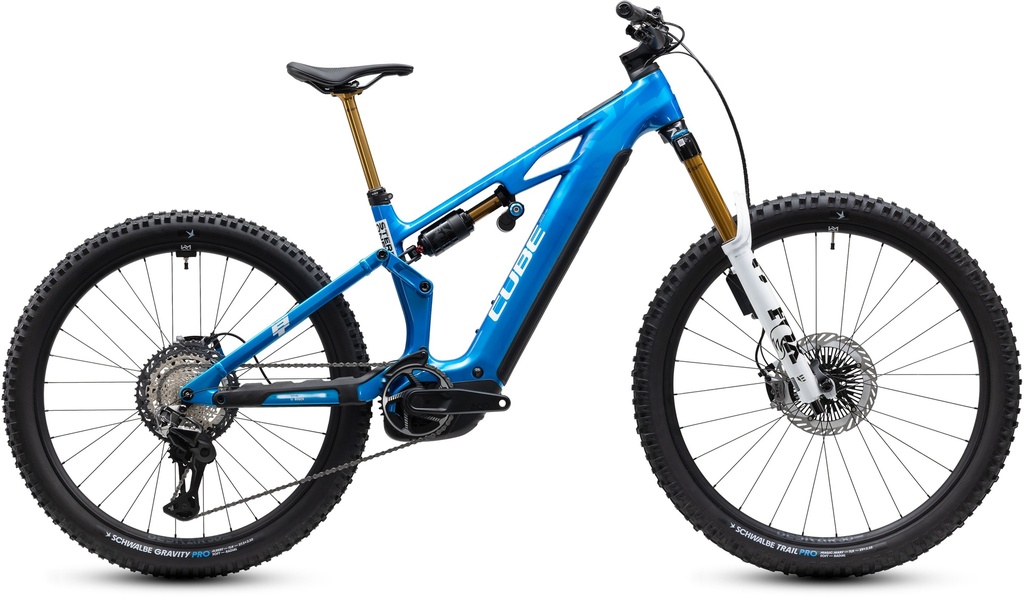

Cube Stereo Hybrid ONE77 HPC AT 800 actionteam
The Stereo Hybrid ONE77 HPC AT is built with big mountains in mind. To that end, we fitted Fox's 38 Factory Grip X2 fork and Float X2 Factory shock – because when you're making full use of 170mm of travel, you need to know you're in good hands. Shimano's XTR Di2 1x12 gears select with uncanny electronic precision, getting your power to the trail with help from Bosch's CX drive, the 800Wh PowerTube battery and a Kiox 400C top tube-mounted display. We added a remote dropper seatpost, while Shimano XTR hydraulic disc brakes with ABS Pro ensure you can safely keep your speed in check. And Newmen Beskar 30 wheels – in mullet configuration – with Schwalbe 2.5in Magic Mary and Albert tyres – keep you rolling, whatever obstacles lie in your path.
Highlights:
High-quality frame: front part made of carbon, rear triangle made of aluminum, internally routed cables, UDH derailleur hanger, designed for a maximum system weight of 150 kg
Motor Bosch Performance Line CX Gen.5 Smart System s 120 Nm
Bosch PowerTube 800 Wh battery for long range

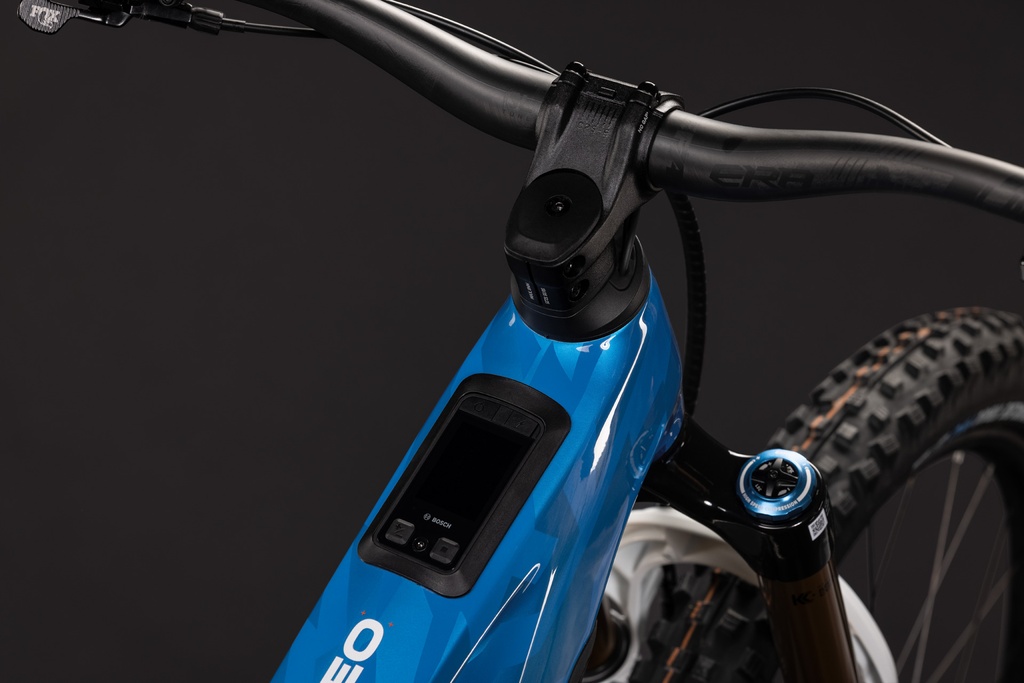

Bosch Kiox 400C display, System Controller integrated into the frame, and Mini Remote on the handlebar for easy system control

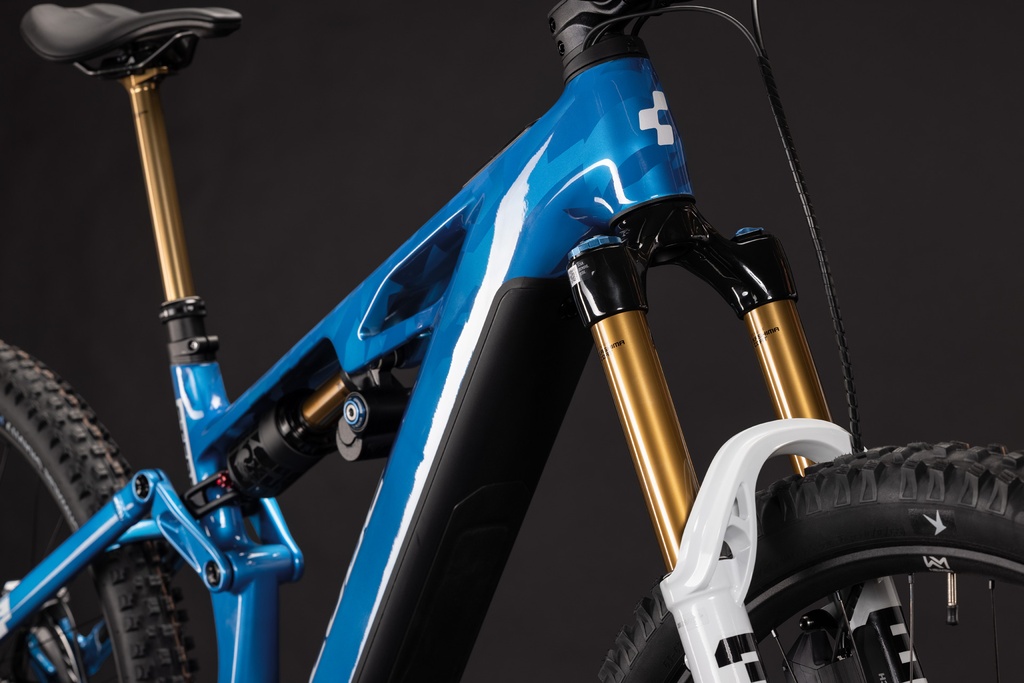

Fox 38 Float Factory GRIPX2 fork (170 mm) and Fox Float X2 Factory rear shock
Shimano XTR Di2 electronic shifting system
Shimano XTR BR-M9220 hydraulic 4-piston disc brakes with 203 mm rotors
Durable and lightweight Newmen Beskar tubeless-ready wheels in a mullet configuration
The frame offers 170 mm of travel front and rear, combined with a mullet wheel setup (29" front, 27.5" rear), providing an ideal balance of stability and agility. Internal cable routing is complemented by an adjustable headset for fine-tuning handling. The 800 Wh PowerTube battery is discreetly integrated into the carbon down tube above the Bosch CX motor. The rear aluminum triangle features a UDH dropout for robustness and future compatibility, while the Direct Mount chain guide ensures reliable power transfer even on the most demanding descents.
Manufacturer number: 1104810
Model year: 2027
Specifications
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
| Frame material | Front: Carbon, Rear: Aluminium |
| Wheel size | Mullet, Front: 29" / rear: 27.5" |
| Speeds | 1 x 12 |
| Fork | Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm |

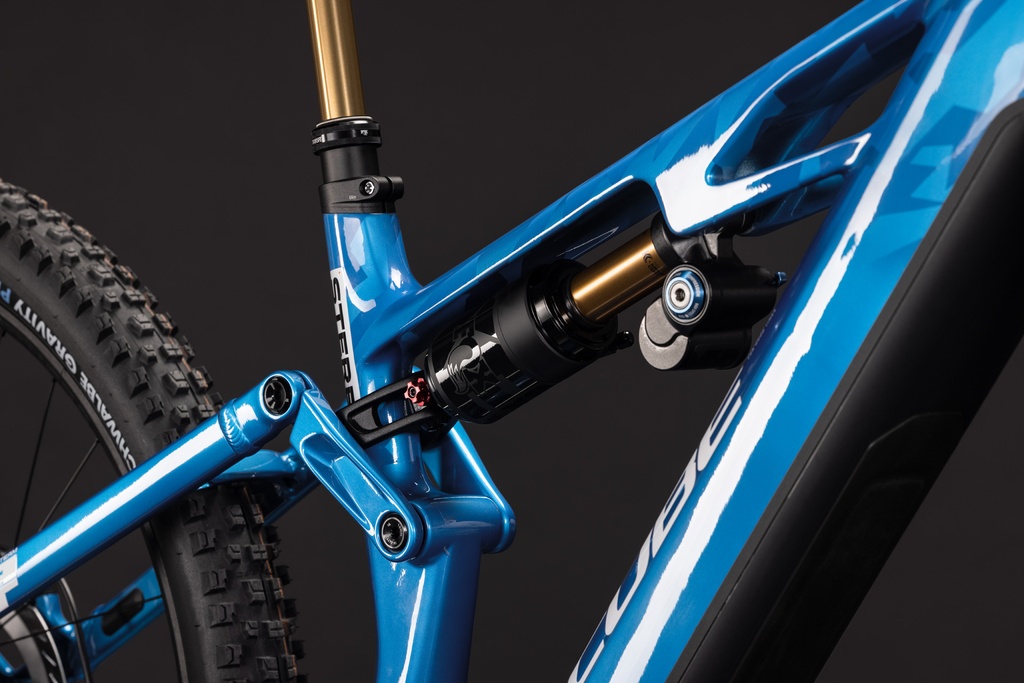

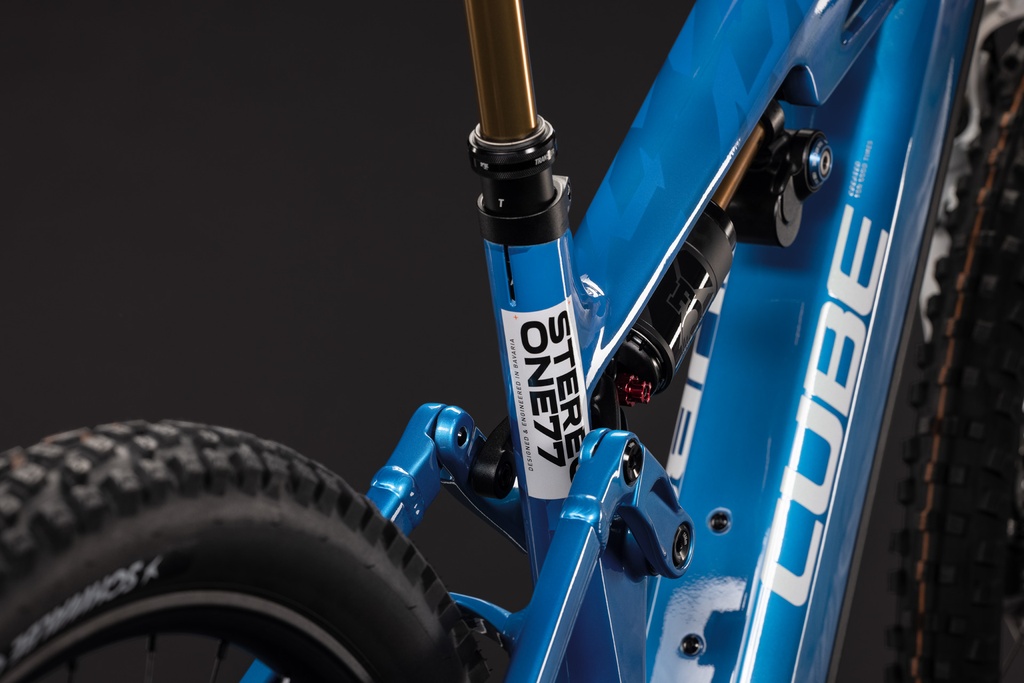

| Rear Shock | Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated |
| Travel | 170 mm / 170 mm |
| Brakes | Shimano XTR BR-M9220, Hydr. Disc Brake w/ Front ABS (203/203 |
| Brake discs | 203/203 mm |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interfac |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | Race Face ERA 35 |
| Grip | ACID Endure VariGrip System |
| Saddle | ACID Endure |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Crankset | ACID MTB Hybrid Pro, 36T |
| Rear derailleur | Shimano XTR Di2 RD-M9260, 12-Speed, Electronic Shifting System |
| Gear shifters | Shimano XTR Di2 SW-M9250-I, Direct Attach |

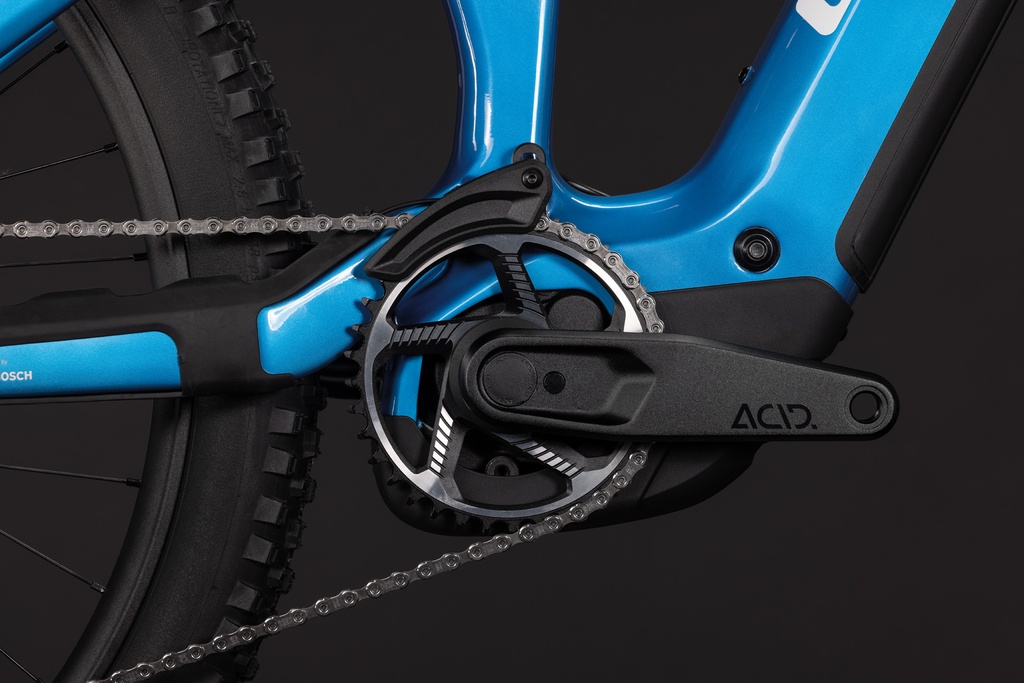

| Chain guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
| Cassette | Shimano XT CS-M8200, 10-51T |
| Chain | Shimano XT CN-M8100 |
| Front tyre | Schwalbe Magic Mary Trail Pro, Addix Soft, Kevlar, 2.5 |
| Rear tyre | Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5 |
| Wheelset | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Display | Bosch Kiox 400C, Bosch System Control incl. Mini Remote |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 2A |
| Motor | Bosch Drive Unit Performance Line CX Gen.5 max. 120Nm (BDU38) |
| Bearing dimension | Front: 30x8mm, Rear: DU-Bushing 12,7mm |
| Maximum total weight allowed | 160 kg (tbody weight + bike + equipment) |
| Weight | Starts at 24,7 kg |
Video
From 2:13:42 to 2:18:57 Stereo Hybrid ONE77
Technologies
Fully integrated battery
The Fully Integrated Battery system hides the power of the Bosch battery inside the bike’s down tube. The battery is protected by a splash- and dust-proof cover and can be locked to prevent theft. This results in an elegantly designed frame that combines aesthetic appeal with practicality.
Advanced internal cable routing
Gear and brake cables run entirely through the frame—without any additional holes near the headset. Bikes with cable routing through the headset have a clean, elegant look with no unnecessary visual distractions.
Modular Battery System
The battery is the heart of the e-bike. The Modular Battery System makes it easy to use—you can charge the battery on the bike or remove it. The frame also has enough space for higher-capacity batteries, ensuring you always have plenty of range.
Semi-integrated seatpost clamp
The discreet Semi Integrated Seatpost Clamp blends seamlessly with the frame’s design, providing a clean look and reducing the chance of snagging the bike when carrying it.
Boost148
A wider hub means a stiffer and stronger wheel, resulting in better handling. The Boost148 standard allows for greater flange spacing, improving wheel performance without affecting shifting or drivetrain efficiency.
Agile Trail Geometry
Agile Trail geometry is designed for riders who enjoy pushing their limits. A lower frame height and more room for movement provide freedom on the trails and reward bolder line choices.
Universal Derailleur Hanger (UDH)
The Universal Derailleur Hanger provides a standardized solution compatible with all drivetrains. It reduces the risk of chain jams, improves shifting performance, and is widely available as a replacement part.
Adjustable headset angle
With the Adjustable Headset Angle, you can fine-tune the bike’s geometry—slacker for more stability on descents or steeper for increased agility on technical sections.
High Performance Carbon (HPC)
Using HPC – High Performance Carbon, Cube designs lightweight, stiff, and durable frames. Careful design and variable carbon layer thickness achieve an optimal balance of weight, stiffness, and durability.
Advanced Twin Mold
The Advanced Twin Mold process uses two precise molds to ensure each carbon fiber is accurately placed and held in position during frame curing. The result is a lighter, stronger frame with optimally distributed fiber density.
Flat Mount kickstand
The Flat Mount kickstand allows you to park your bike anywhere, providing a secure and stable stand on flat surfaces.
Efficient Trail Control
The Efficient Trail Control system ensures sensitive suspension response on rough terrain while minimizing pedal-induced bobbing. This means full use of the travel and more fun on the trail.
Size chart
Choosing the correct frame is key to a comfortable and safe ride. Based on your height and inseam length, our frame size calculator helps you find the ideal size for optimal comfort, control, and riding efficiency.
