At CUBE, we don’t just hand out the Super TM designation to any bike. It has to earn it. And, guys, the Stereo Hybrid ONE44 HPC Super TM has truly earned it. It’s not just about top-of-the-line components, a high-performance carbon frame, and CUBE’s proven kinematics. It’s also about the power, flexibility, and performance of Avinox’s M2S drivetrain. Now you can ride faster on any trail—the Super TM way.
About product

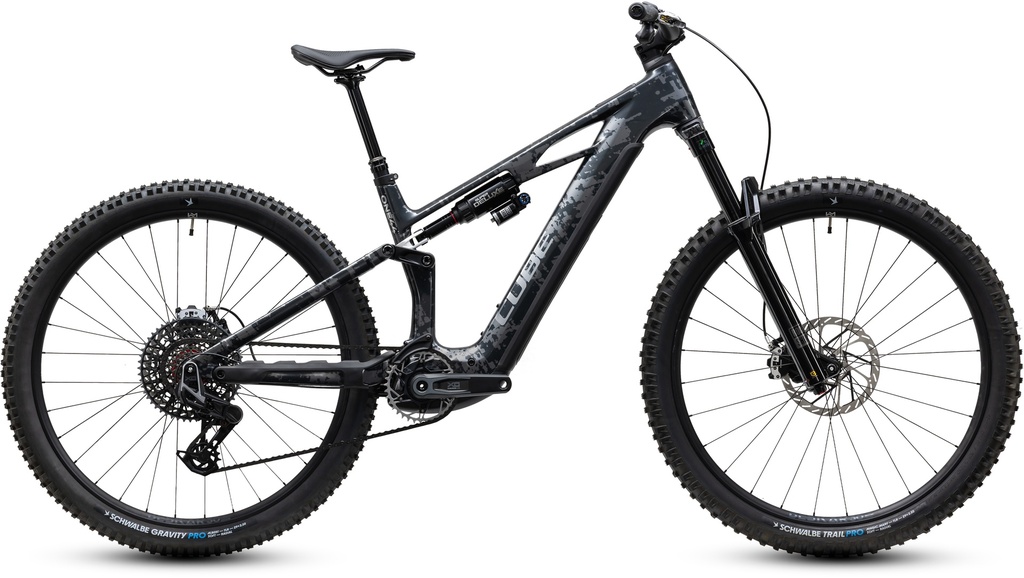

CUBE Stereo Hybrid ONE44 HPC SUPER TM 800 graphiteglitch´n´grey
How would you build the ultimate trail bike? Here’s our answer: the Stereo Hybrid ONE44 HPC Super TM. We started by mounting a 150-millimeter RockShox Zeb Ultimate fork on the front of our high-performance carbon (HPC) frame and added a Super Deluxe Ultimate rear shock for 140 mm of rear travel. Together, they ensure that the Newmen Beskar 30 TRQ rims, fitted with 2.5-inch Schwalbe Magic Mary and Albert tires, stay firmly planted on the ground. This is incredibly convenient, as your pedaling power—transmitted through the Sram X0 Eagle 1x12 drivetrain—is complemented by the smooth and controlled power of the Avinox M2S drive system with a removable 800Wh battery and DP100 controller. A remote-controlled dropper seatpost and the progressive power of Sram Maven Ultimate hydraulic disc brakes round out the entire setup. The bike is ready for any trail, anywhere...
Highlights:
High-quality frame (carbon main frame, aluminium rear triangle) with internal cable routing, UDH derailleur hanger, designed for a maximum system weight of 160 kg
The Avinox M2S drive system delivers a standard torque of 130 Nm, which can be temporarily increased to an impressive 150 Nm in “Boost” mode for the most challenging climbs.
Avinox 800Wh Removable Battery for Long Range

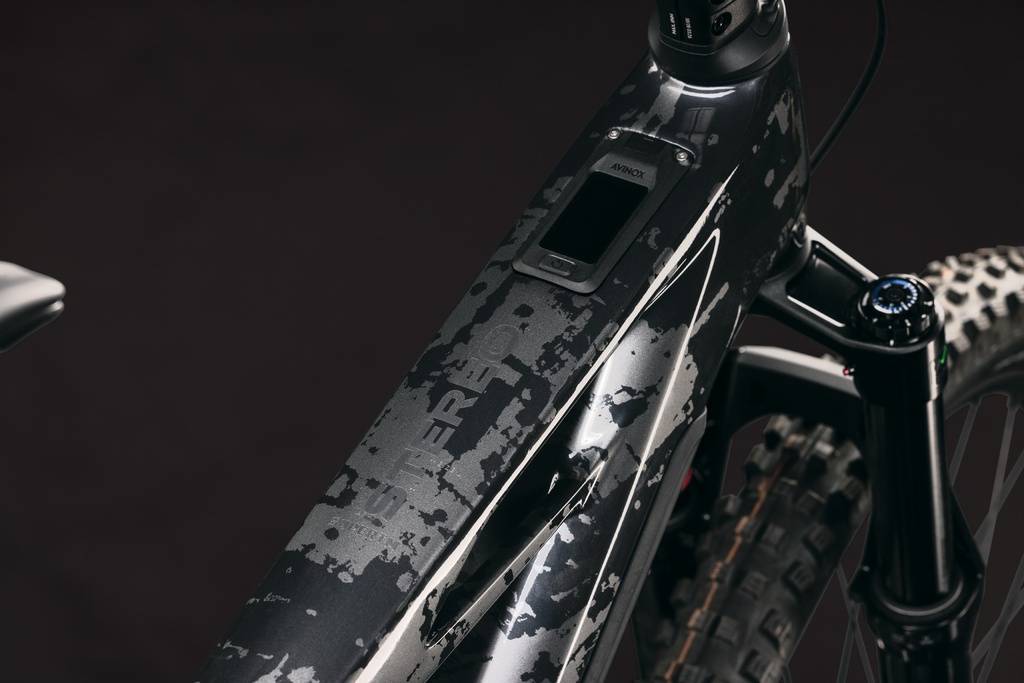

Avinox DP100 Curved Display for Clear and Intuitive Control of the E-Bike System
RockShox Zeb Ultimate Charger 3.2 suspension forks with 150 mm of travel and a RockShox Super Deluxe Ultimate rear shock
Sram Eagle™ 90 Transmission 12-speed drivetrain
High-performance 4-piston Sram Maven Base hydraulic disc brakes with 200-mm brake rotors
High-quality and durable Newmen Beskar 30 TRQ wheels, ready for tubeless tires
Headset with angle adjustment
Manufacturer's part number: 1203850
Model year: 2027
Specifications
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
| Frame material | Carbon |
| Wheel size | Size Split: 27.5: S // 29: M L XL |
| Speeds | 1 x 12 |

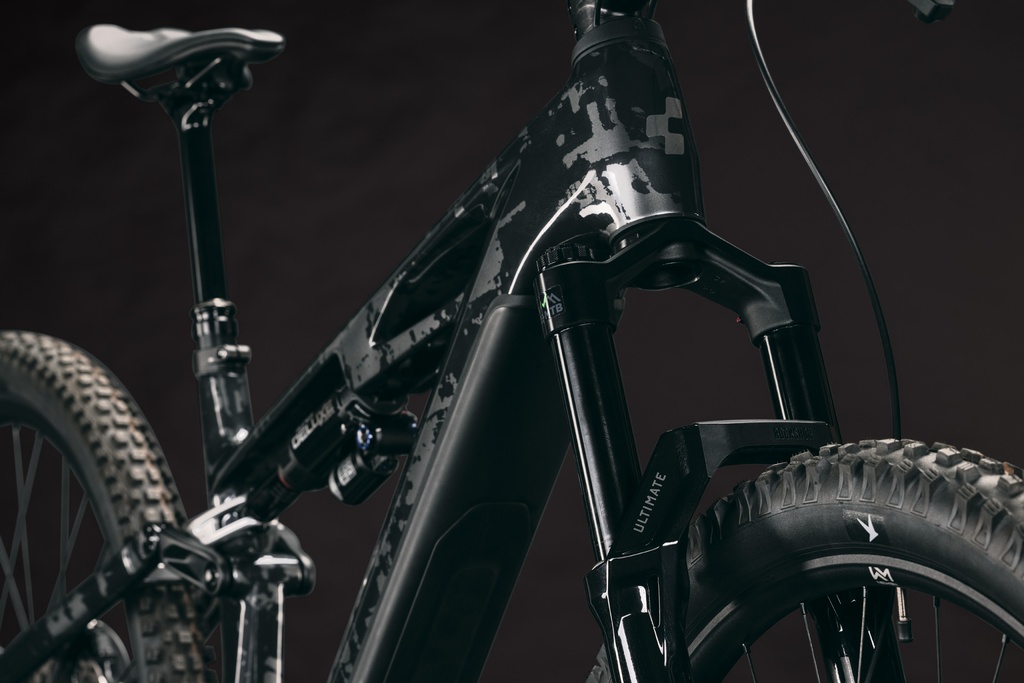

| Fork | RockShox Zeb Ultimate Charger 3.2 RC2 Air, Tapered, 15x110mm, 150mm |

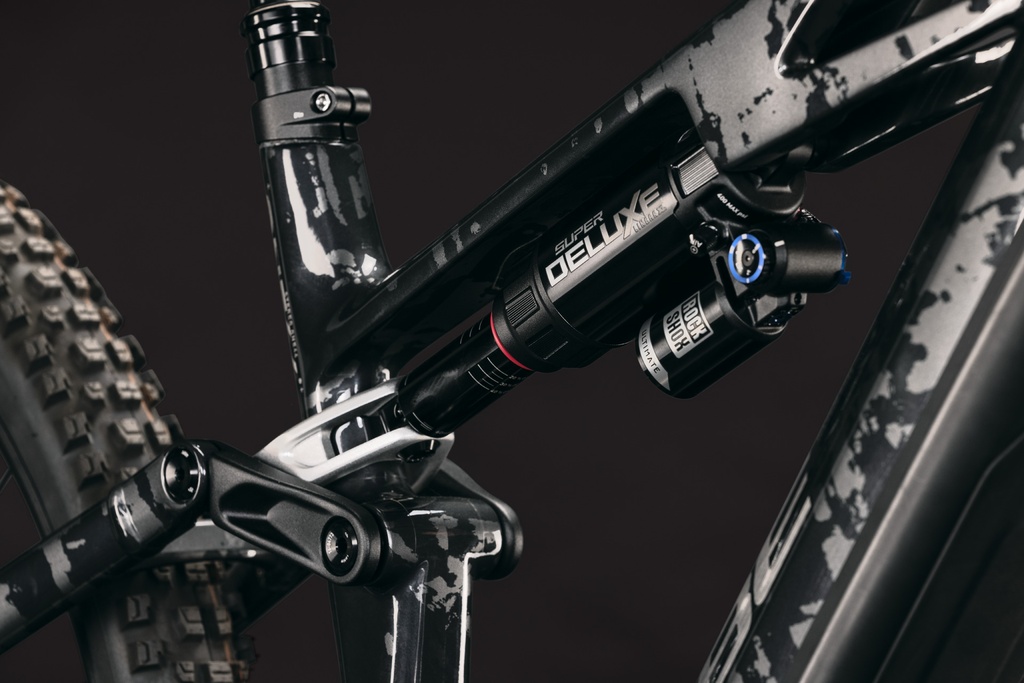

| Rear Shock | RockShox Super Deluxe Ultimate, 230x60 (27.5: 210x55mm), Rebound LSC/HSC Adjust, 2-Position Lever |
| Travel | 150 mm / 140 mm |
| Brakes | Sram Maven Ultimate, Hydr. Disc Brake (200/200) |
| Brake discs | 200/200 mm |
| Headset | ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | Race Face ERA 35 |
| Grip | ACID Endure VariGrip System |
| Saddle | ACID Venec EMTB Plus 140 |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |

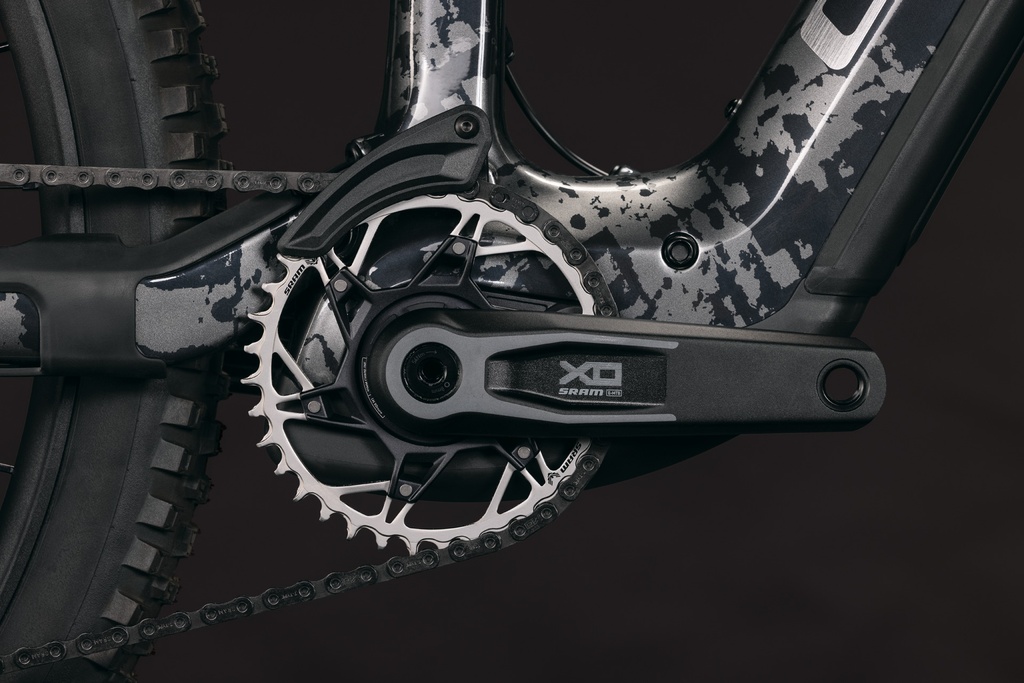

| Crankset | Sram X0 Eagle™ E-MTB Crank, 36T |
| Rear derailleur | Sram X0 Eagle AXS™ Transmission, 12-Speed |
| Gear shifters | Sram AXS™ Pod Ultimate Controller |
| Chain guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
| Cassette | Sram XS-1295, 10-52T |
| Chain | Sram X0 Eagle™ Transmission |
| Front tyre | Schwalbe Magic Mary Trail Pro, Addix Soft, Kevlar, 2.5 |
| Rear tyre | Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5 |
| Wheelset | Newmen Beskar 30 TRQ base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Display | Avinox DP100 Curved und Avinox BC100 left+right |
| Battery | Avinox 800Wh removable |
| Charger | Avinox 4A |
| Motor | Avinox M2S max. 130Nm (Boost 150 Nm) |
| Bearing dimension | Front: 30x8mm, Rear: DU-Bushing 12,7mm |
| Maximum total weight allowed | 160 kg (tbody weight + bike + equipment) |
| Weight | Starts at 24,7 kg |
Video
From 2:18:57 to 2:27:29 Stereo Hybrid ONE44
Technologies
Fully integrated battery
The Fully Integrated Battery system hides the power of the Bosch battery inside the bike’s down tube. The battery is protected by a splash- and dust-proof cover and can be locked to prevent theft. This results in an elegantly designed frame that combines aesthetic appeal with practicality.
Advanced internal cable routing
Gear and brake cables run entirely through the frame—without any additional holes near the headset. Bikes with cable routing through the headset have a clean, elegant look with no unnecessary visual distractions.
Modular Battery System
The battery is the heart of the e-bike. The Modular Battery System makes it easy to use—you can charge the battery on the bike or remove it. The frame also has enough space for higher-capacity batteries, ensuring you always have plenty of range.
Semi-integrated seatpost clamp
The discreet Semi Integrated Seatpost Clamp blends seamlessly with the frame’s design, providing a clean look and reducing the chance of snagging the bike when carrying it.
Boost148
A wider hub means a stiffer and stronger wheel, resulting in better handling. The Boost148 standard allows for greater flange spacing, improving wheel performance without affecting shifting or drivetrain efficiency.
Universal Derailleur Hanger (UDH)
The Universal Derailleur Hanger provides a standardized solution compatible with all drivetrains. It reduces the risk of chain jams, improves shifting performance, and is widely available as a replacement part.
Adjustable headset angle
With the Adjustable Headset Angle, you can fine-tune the bike’s geometry—slacker for more stability on descents or steeper for increased agility on technical sections.
Flat Mount kickstand
The Flat Mount kickstand allows you to park your bike anywhere, providing a secure and stable stand on flat surfaces.
Efficient Trail Control
The Efficient Trail Control system ensures sensitive suspension response on rough terrain while minimizing pedal-induced bobbing. This means full use of the travel and more fun on the trail.
Agile Trail Geometry
Agile Trail geometry is designed for riders who enjoy pushing their limits. A lower frame height and more room for movement provide freedom on the trails and reward bolder line choices.
Size chart
Choosing the correct frame is key to a comfortable and safe ride. Based on your height and inseam length, our frame size calculator helps you find the ideal size for optimal comfort, control, and riding efficiency.
