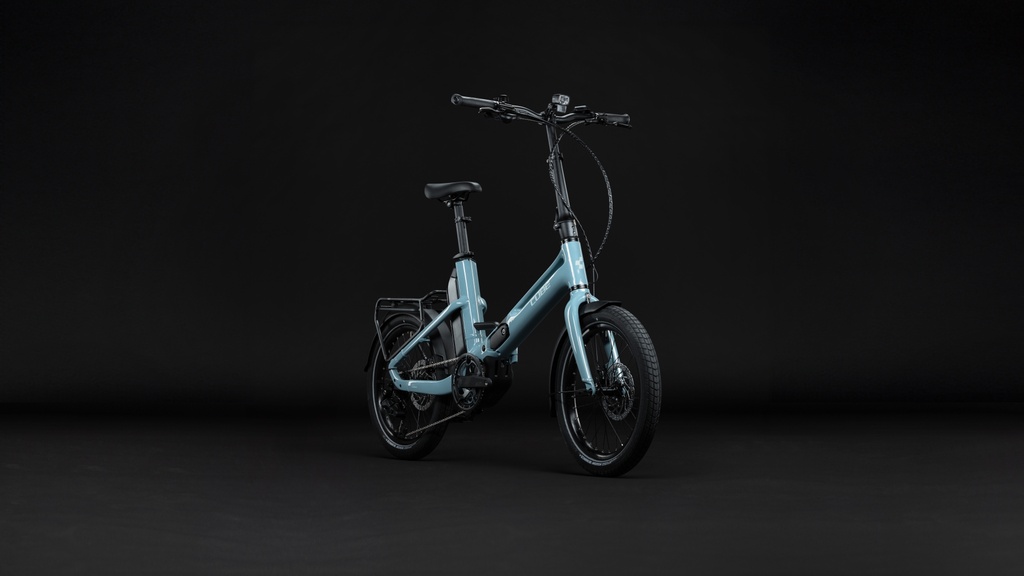

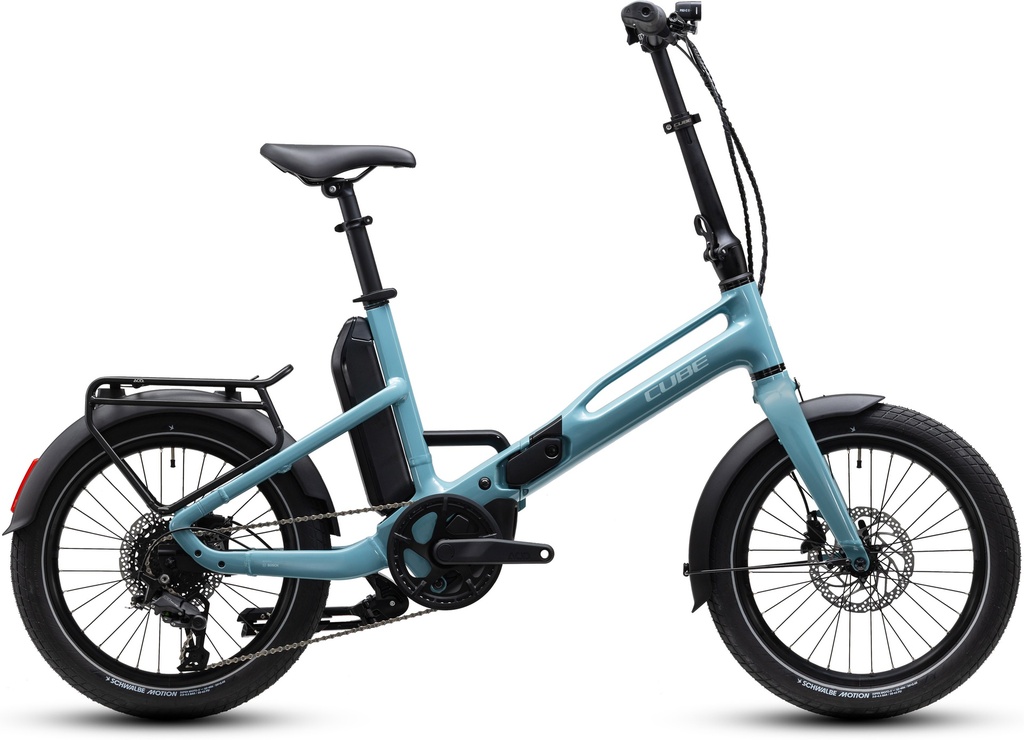

Cube Fold Hybrid 540 arubablue’n’sky
Built to slot into your life as easily as it folds for storage or transport, the Fold Hybrid is the two-wheeled companion you'll wish you'd always had. With the power of Bosch's Performance motor, the wide range of Shimano's easy-to-use Cues 9-speed gears and a 540Wh battery as standard, it makes light work of any trip and delivers you to your destination fresh and in good shape to continue with the rest of your day. We even fitted powerful Shimano hydraulic disc brakes, for assured stopping no matter the weather. The integrated rear carrier – and optional front carrier, fastening via the simple HIC interface – make it easy to take everything you need with you. And, with mudguards, a sturdy kickstand and lights, it has everything you need.
Highlights:
Elegant and extremely comfortable aluminium frame with a practical carrying handle on the down tube – designed for a system weight of 150 kg
Powerful Bosch Performance Line Smart System motor with 75 Nm of torque
Good range thanks to the Bosch PowerPack 540 Wh battery
Bosch Purion 200 display for clear and intuitive operation of the e-bike system
Shimano Cues 1x9-speed groupset for precise gear changes
Shimano BR-MT200 hydraulic 2-piston disc brakes with 180/160 mm brake discs
High-quality 20" tubeless-ready wheelset with Shimano hubs
Fully equipped with lights, luggage rack, mudguards, bell and kickstand
Manufacturer number: 1120410
Model year: 2027
Specifications
| Frame | Aluminium Superlite, Comfort Ride Geometry, Seatstay-Integrated Carrier, Integrated Folding Technology, Carrying Handlebar, Slider Dropout |
| Frame material | Aluminium |
| Wheel size | 20'' |
| Speeds | 9s |
| Fork | Aluminium Rigid Fork, 20" |
| Rear Shock | - |
| Travel | - |
| Brakes | Shimano BR-MT200, Hydr. Disc Brake (180/160)) |
| Brake discs | 180/160 mm |
| Headset | ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |

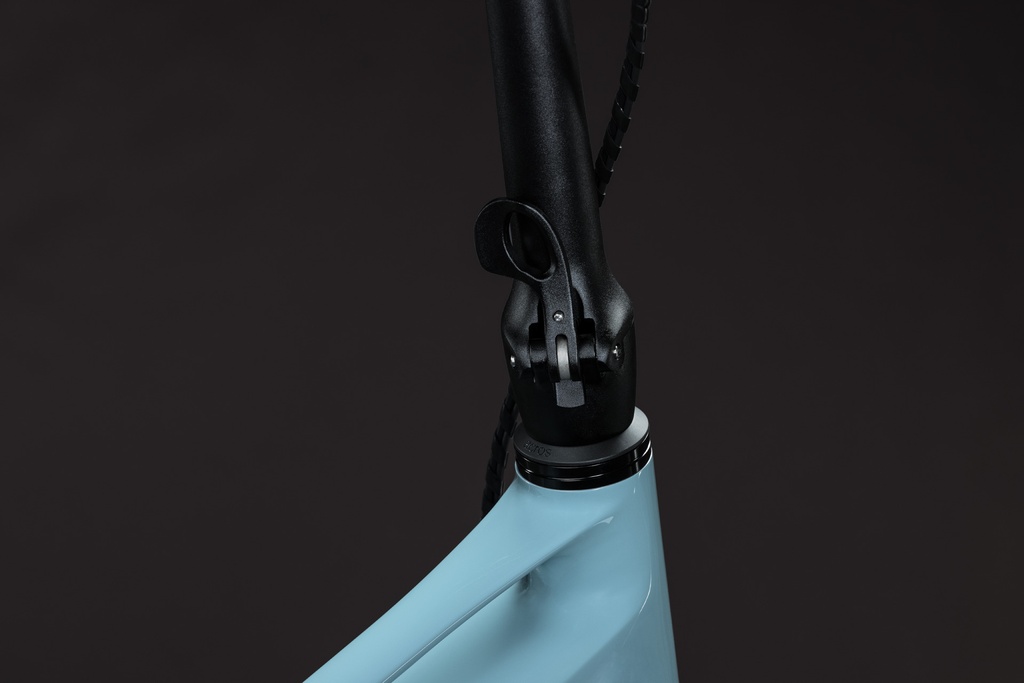

| Stem | BySchulz Speedlifter Twist Pro 2 SDS T15, length: 80mm |
| Handlebar | CUBE Rise Trail Bar, 660mm; Z CUBE Comfort Shape Bar |
| Grip | ACID Travel Comfort Gripshift |
| Saddle | ACID Sequence 160 Pro Bubble Foam |
| Seatpost | Satori Sorata 34,9mm, 280mm-440mm telescoping seatpost |
| Crankset | ACID Trekking Hybrid, 44T, 165mm |
| Rear derailleur | Shimano Cues RD-U4010, 9-Speed |
| Gear shifters | Shimano SL-M315, Rapidfire-Plus |
| Chain guide | - |
| Cassette | Shimano CS-HG31, 11-34T |
| Chain | KMC eGlide |
| Front tyre | Schwalbe Super Moto-X, Double Defense, 62-406 |
| Rear tyre | Schwalbe Super Moto-X, Double Defense, 62-406 |
| Wheelset | ACID EX30, 32H, Disc, Tubeless Ready |
| Display | Bosch Purion 200 with Integrated Display |
| Battery | 1 x Bosch PowerPack 500 (expandable to 2 x PowerPack 500) |
| Charger | Bosch 2A |
| Motor | Bosch Drive Unit Performance Line 75Nm (BDU34) |
| Lights: | ACID Front Light PRO-E 80 X-Connect, 12V, DC / ACID Mudguard Rear Light PRO-E, 12V, DC |
| Maximum total weight allowed | 160 kg (tbody weight + bike + equipment) |
| Weight | 25,3 Kg |
Video
From 3:24:32to 3:26:58 Fold Hybrid
Technology
Semi Integrated Carrier
A luggage carrier needn't be a complicated, ugly addition to your bike. Our Semi-Integrated Carrier is so neat, you'll barely notice it... until it's time to carry something back from the shops, or ride to work, or nip across town to fetch something. Sturdy and adaptable, it's just what you need to make day-to-day life a little easier.
Front Carrier Ready
Our Compact Hybrid is already a versatile beast, packing an urban traffic-beating punch way beyond its diminutive dimensions. But if you need a little extra carrying capacity, the purpose-designed Front Carrier makes it even more adaptable. Neat, stable and secure, it provides an easy way to carry an extra bag to work, to the shops, or just because.
High Performance Aluminium
High performance aluminium is all about extracting the best possible performance from this strong, durable material. We select precisely the right grade of alloy for our needs, carefully tweak tube profiles to suit each application, and then meticulously weld each frame. It's your guarantee of a light, strong, durable and safe bike.
Comfort Ride Geometry
As you might expect, our Comfort Ride Geometry delivers maximum comfort on two wheels. Because after all, who doesn't want a comfortable ride? We sweated the details of frame angles and dimensions to create a natural-feeling ride position and the ideal combination of stability and agility, so you not only feel comfortable but safe, too.

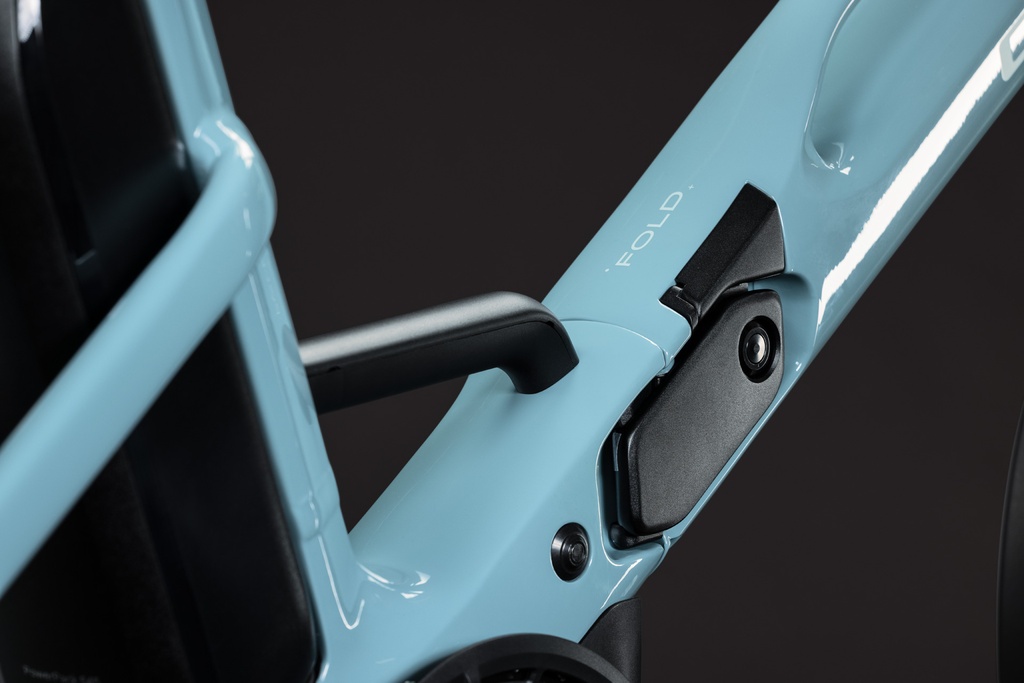

Integrated Folding Technology
You want your folding bike to be simple to use, so we designed our Integrated Folding Technology to do just that. With the push of a button the Fold Hybrid can be transformed into an easy-to-carry, easy-to-store package with a conveniently placed carrying handle. Simple, flexible mobility, redefined.
One Size Concept
The flexible One Size Concept makes a bike so versatile it can be used by anyone, of any height. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m), so everyone can have a comfortable, relaxing ride. It's the ideal bike to share: for the whole family, partners, friends, neighbours or colleagues. Or keep it for yourself as the perfect companion for wherever life takes you.
X-Connect
X-Connect is the simple way to attach a compatible ACID light to your CUBE bike. With a connector built into the headset and the wiring hidden in the frame, all that's left to do is attach the light, plug it in... and off you go. See and be seen, the easy way.
