About product

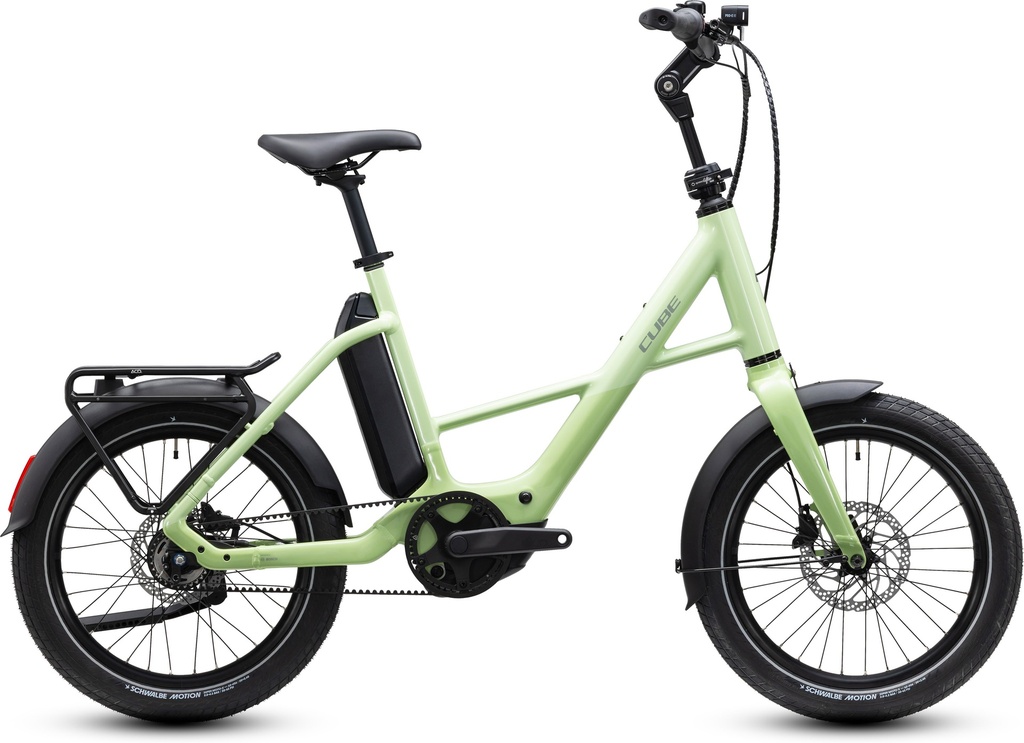

Cube Compact Hybrid Deluxe 540 lindgreen’n’reflex
Wherever two wheels can make your life easier, our Compact Hybrid Deluxe will slot right in. The clever, compact design – the clue is in the name – and Bosch Performance drive unit with Smart System, 540Wh battery and easy-to-use Shimano 5-speed hub gears make traffic-dodging a breeze. There's an integrated rear carrier for your essentials, while the HIC interface at the front allows the easy addition of a compatible ACID front carrier for even more luggage carrying options. We also added a kickstand for easy parking, mudguards to help keep you dry and a lighting system so you can see and be seen. Powerful Shimano hydraulic disc brakes ensure you can stop safely even when it's wet, and the easily adjustable handlebar makes light work of getting comfortable. You'll wonder how you managed without it.
Highlights:
Elegant and extremely comfortable aluminium frame with a practical carrying handle on the down tube – designed for a system weight of 150 kg
Powerful Bosch Performance Line Smart System motor with 75 Nm of torque
Good range thanks to the Bosch PowerPack 540 Wh battery
Bosch Purion 200 display for clear and intuitive operation of the e-bike system

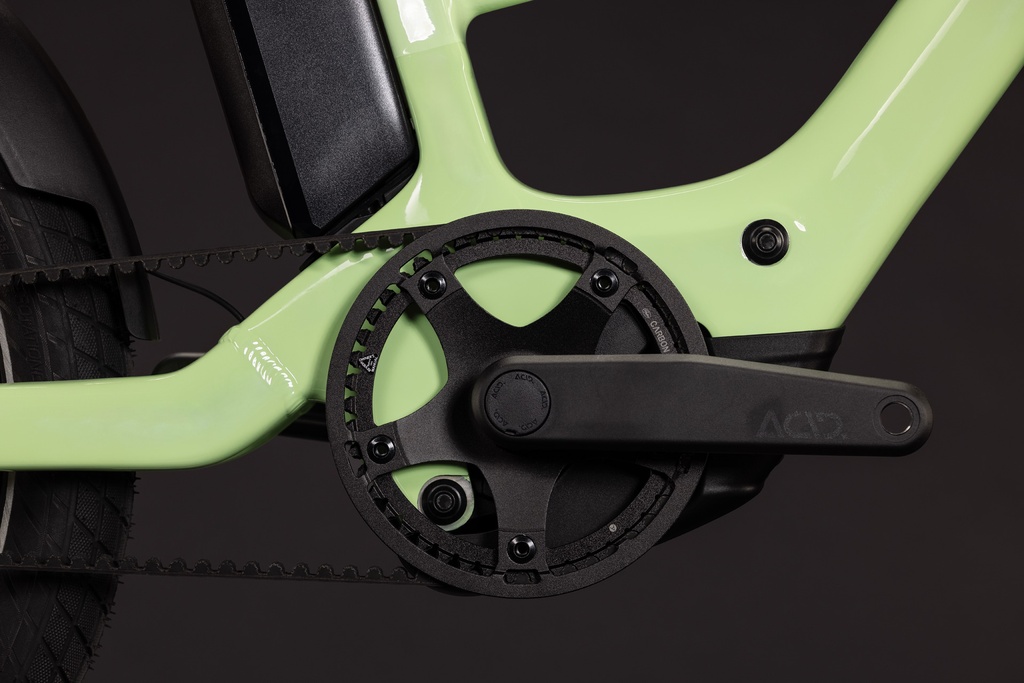

Low-maintenance Shimano Nexus 5-speed hub gearbox with Gates belt drive
Shimano BR-MT200 hydraulic 2-piston disc brakes with 180/160 mm brake discs
High-quality 20" tubeless-ready wheelset with Shimano hubs
Fully equipped with lights, luggage rack, mudguards, bell and kickstand
Manufacturer number: 1120110
Model year: 2026
Specifications
| Frame | Aluminium Superlite, Gravity Casting Technology, Comfort Ride Geometry, Seatstay-Integrated Carrier |
| Frame material | Aluminium |
| Wheel size | 20'' |
| Speeds | stepless, 380 % |
| Fork | Aluminium Rigid Fork, 20" |
| Rear Shock | - |
| Travel | - |
| Brakes | Shimano BR-MT200, Hydr. Disc Brake (180/160)) |
| Brake discs | 180/160 mm |
| Headset | ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | BySchulz Speedlifter Twist Pro 2 SDS T15, length: 80mm |
| Handlebar | CUBE Rise Trail Bar, 660mm; Z CUBE Comfort Shape Bar |
| Grip | ACID Travel Comfort Gripshift |
| Saddle | ACID Sequence 160 |
| Seatpost | CUBE Performance Post, 27.2mm |
| Crankset | ACID Trekking Hybrid, 46T, 165mm |
| Rear derailleur | Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut |
| Gear shifters | Shimano Nexus SL-C7000-5, Revoshift |
| Chain guide | - |
| Cassette | Gates CDX Shimano Nexus 28T |
| Chain | Gates CDC |
| Front tyre | Schwalbe Super Moto-X, Double Defense, 62-406 |
| Rear tyre | Schwalbe Super Moto-X, Double Defense, 62-406 |
| Wheelset | ACID EX30, 32H, Disc, Tubeless Ready |
| Display | Bosch Purion 200 with Integrated Display |
| Battery | 1 x Bosch PowerPack 500 (expandable to 2 x PowerPack 500) |
| Charger | Bosch 2A |
| Motor | Bosch Drive Unit Performance Line 75Nm (BDU34) |
| Lights: | ACID Front Light PRO-E 80 X-Connect, 12V, DC / ACID Mudguard Rear Light PRO-E, 12V, DC |
| Maximum total weight allowed | 160 kg (tbody weight + bike + equipment) |
| Weight | 25,3 Kg |
Video
From 3:26:58 to 3:29:21 Compact Hybrid
Technology

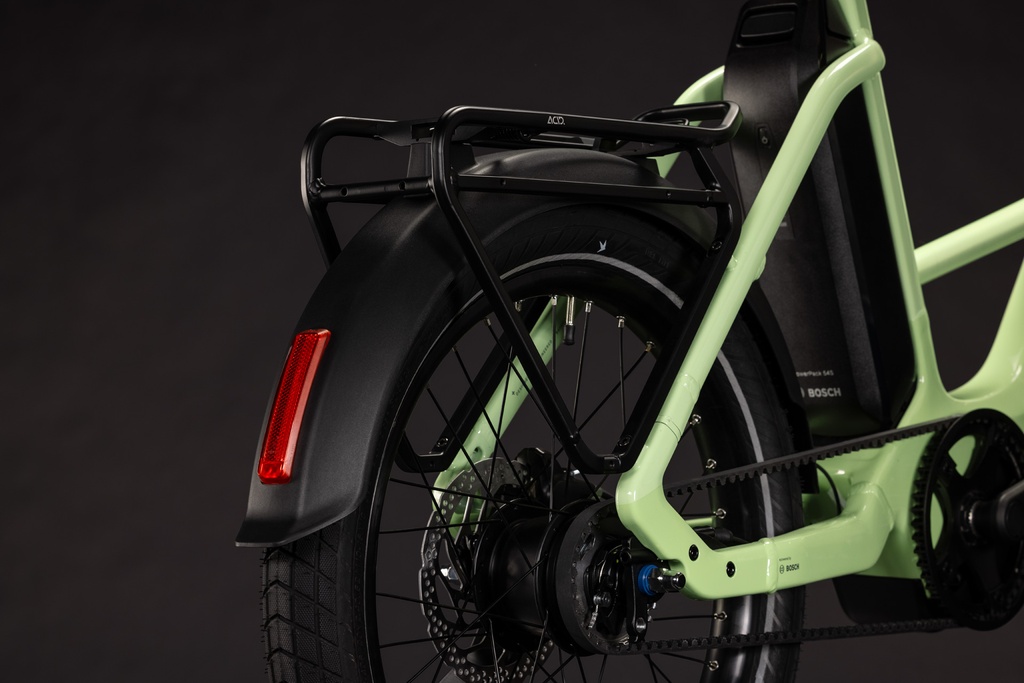

Semi Integrated Carrier
A luggage carrier needn't be a complicated, ugly addition to your bike. Our Semi-Integrated Carrier is so neat, you'll barely notice it... until it's time to carry something back from the shops, or ride to work, or nip across town to fetch something. Sturdy and adaptable, it's just what you need to make day-to-day life a little easier.
Front Carrier Ready
Our Compact Hybrid is already a versatile beast, packing an urban traffic-beating punch way beyond its diminutive dimensions. But if you need a little extra carrying capacity, the purpose-designed Front Carrier makes it even more adaptable. Neat, stable and secure, it provides an easy way to carry an extra bag to work, to the shops, or just because.
High Performance Aluminium
High performance aluminium is all about extracting the best possible performance from this strong, durable material. We select precisely the right grade of alloy for our needs, carefully tweak tube profiles to suit each application, and then meticulously weld each frame. It's your guarantee of a light, strong, durable and safe bike.
Comfort Ride Geometry
As you might expect, our Comfort Ride Geometry delivers maximum comfort on two wheels. Because after all, who doesn't want a comfortable ride? We sweated the details of frame angles and dimensions to create a natural-feeling ride position and the ideal combination of stability and agility, so you not only feel comfortable but safe, too.
Integrated Folding Technology
You want your folding bike to be simple to use, so we designed our Integrated Folding Technology to do just that. With the push of a button the Fold Hybrid can be transformed into an easy-to-carry, easy-to-store package with a conveniently placed carrying handle. Simple, flexible mobility, redefined.
One Size Concept
The flexible One Size Concept makes a bike so versatile it can be used by anyone, of any height. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m), so everyone can have a comfortable, relaxing ride. It's the ideal bike to share: for the whole family, partners, friends, neighbours or colleagues. Or keep it for yourself as the perfect companion for wherever life takes you.
X-Connect
X-Connect is the simple way to attach a compatible ACID light to your CUBE bike. With a connector built into the headset and the wiring hidden in the frame, all that's left to do is attach the light, plug it in... and off you go. See and be seen, the easy way.
