About the product

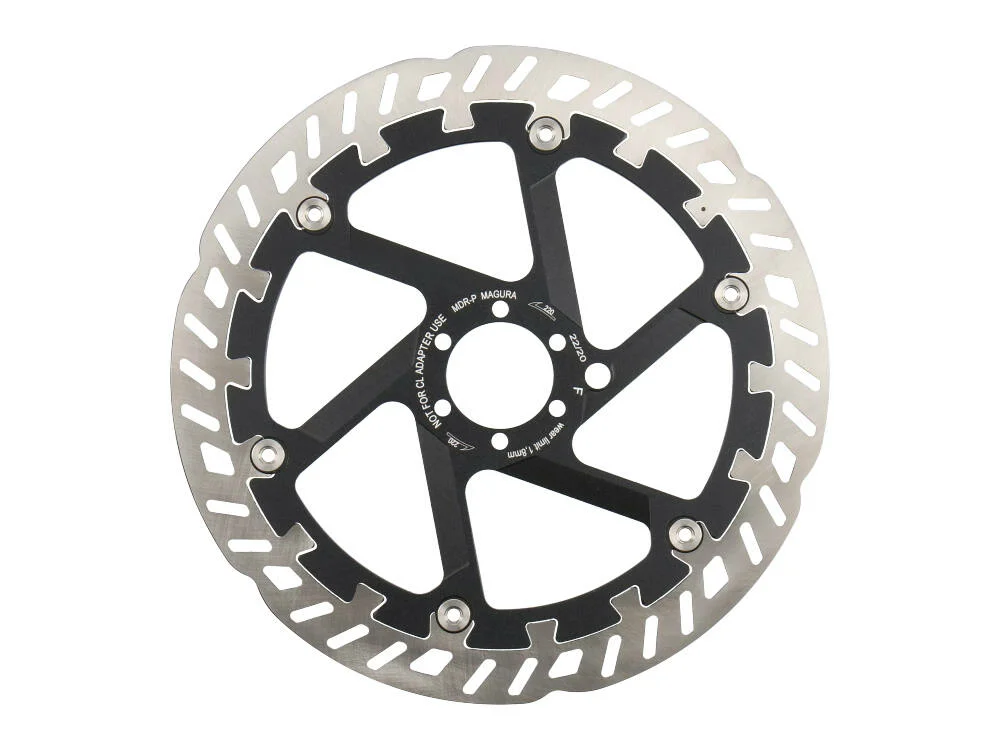

MAGURA MDR-P – Brake disc 220 mm, 6-vijačni
The MAGURA MDR-P is a high-performance brake disc designed for demanding use and cyclists who need constant braking power even under prolonged loads. It is suitable for downhill, e-bikes and heavier cargo bikes.
The two-piece construction, using patented Dovetail Interlink technology, connects the outer and inner rings, ensuring high rigidity, heat resistance and stable braking performance even under intense braking.
For the same brake lever force, the 220 mm version provides approximately 10% more braking power than a 203 mm disc and approximately 20% more than a 180 mm disc. The greater mass of the disc further reduces the possibility of overheating and fade.
Main features
Optimized for e-bikes
Designed for demanding and sporty use
Patented Dovetail Interlink technology
Constant braking performance even under prolonged loads
Very high heat resistance
Excellent resistance to overheating and wear
Compatible with the entire MAGURA MT family
Material: steel
Thickness: 2 mm
Fixation: 6 bolts (6-bolt)
Diameter: 220 mm
Weight: approx. 241 g
Important: The brake disc must not be used with a Centerlock adapter.
