About the product
BMS vezje je namenjeno za zaščito in nadzor baterije. Namenjeno je za Li-ion celice. Funkcije BMS-a:
Protection against cell overcrowding
Cell overheating protection
Protection against overflow
Protection of a short circuit
Protection from discharging
Balancing Cells (Keeping all cells at the same tension level)
Specifikacije
| Nominal tension: | 14.4V |
| št. zaporednih vej: | 4s |
| Min. tension: | 11.2V |
| Max. Filling flow: | 8a |
| Max. Stream empty: | 18a |
| Cell balance: | Yes |
| Turning temperature: | 65 ° C |
| Dimensions: | 34mm x 59mm x 9mm |
| Separate exit for charger: | Not |
The scope of the package

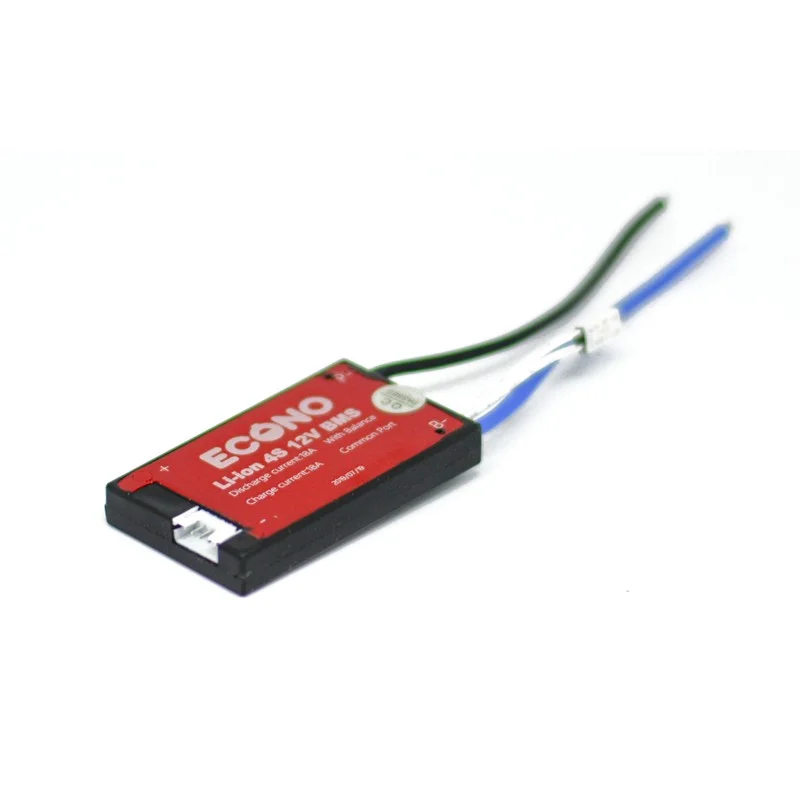

1x BMS vezje Econo 4s 18a common port
1x next to the cell balancing cable.
