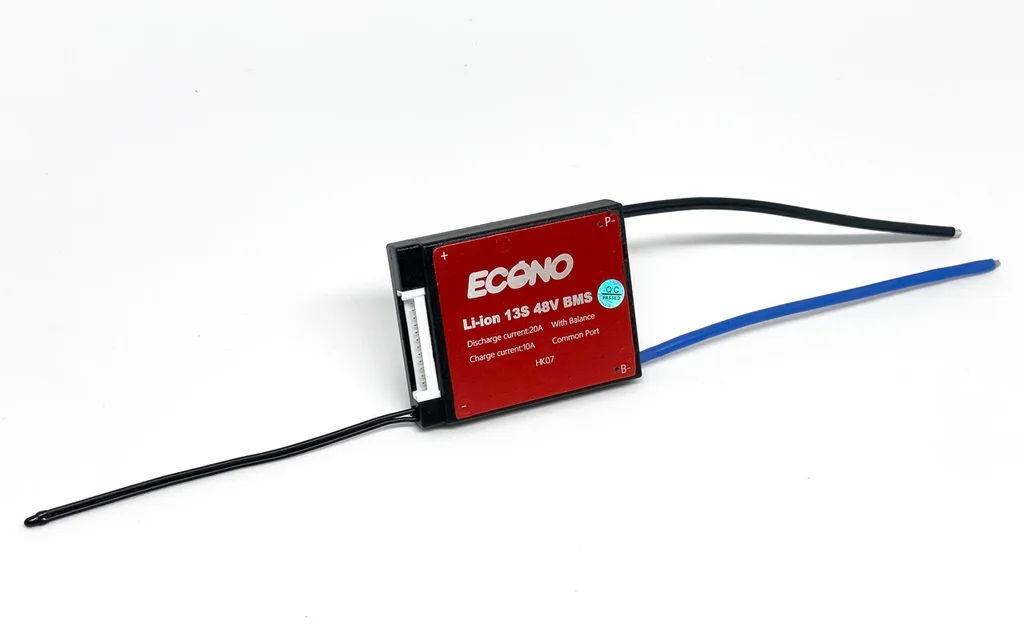

BMS vezje ECONO 13S 48V 20A common port + NTC

BMS vezje ECONO 13S 48V 20A common port + NTC

Code:
(0 review)

BMS vezje je namenjeno za zaščito in nadzor baterije. Namenjeno je za Li-ion celice.

29.90 € 29.90 € (Tax included)

Estimated delivery:
  • Brand
Add to cart
Add to wishlist
Contact Us
About the productSpecifikacijeThe scope of the package

About the product

BMS vezje je namenjeno za zaščito in nadzor baterije. Namenjeno je za Li-ion celice. Funkcije BMS-a:

  • Protection against cell overcrowding

  • Cell overheating protection

  • Protection against overflow

  • Protection of a short circuit

  • Protection from discharging

  • Balancing Cells (Keeping all cells at the same tension level)

Specifikacije

Nominal tension:48v
št. zaporednih vej:13s
Min. tension:36.5v
Max. Filling flow:10a
Max. Stream empty:20a
Cell balance:Yes
Turning temperature:
65 ° C
Dimensions:
50mm x 65mm x 11.5mm
Separate exit for charger:
Not

The scope of the package

  • 1x BMS vezje ECONO 13S 20a common port

  • 1x cable for cell balancing

BSM circuit ECONO

BMS vezje ECONO je namenjeno za zaščito in nadzor baterije. Namenjeno je za Li-ion celice. BMS ima vgrajen senzor temperature in vrsto drugih mehanizmov za zaščito baterije. Zraven BMS se dobi tudi kabel za balansiranje celic.

Nominal tension / binding:48v / 13s

Rated charge of charging / emptying: 10a / 220a

Turn off temperature: 65 ° C

Dimensions: 50mm x 65mm x 11.5mm

BMS protective functions


Protection against cell overcrowding


Protection recently


Cell overheating protection


Protection from discharging


Protection against overflow


Balancing cells

Keeping all cells at the same tension level

Attributes

Others
Brand ECONO
