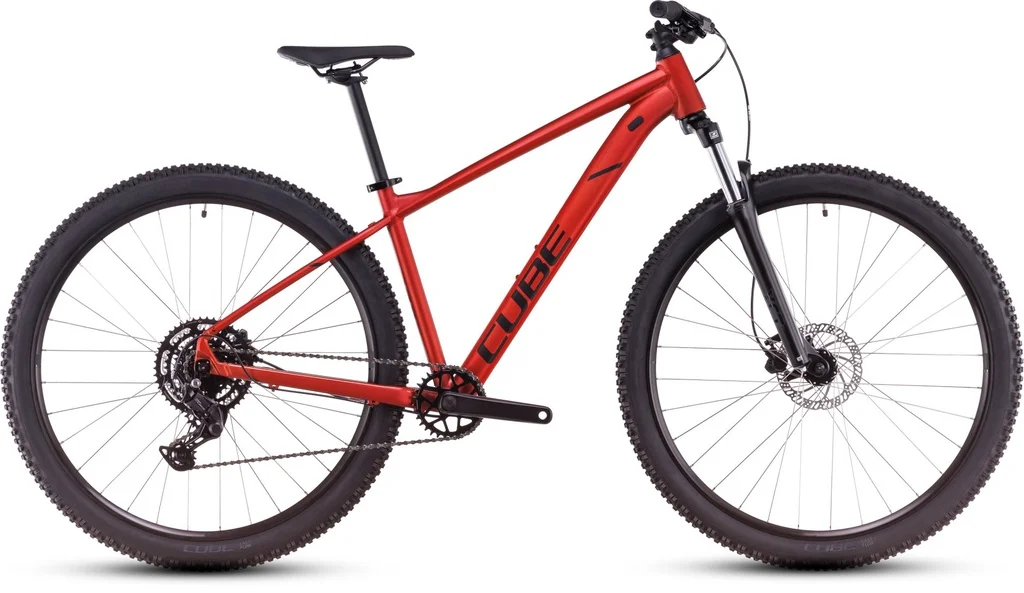

About the product
The appearance of the Aim bike is not only elegant but also thoughtfully designed. Smoothly welded joints between the head tube and seat tube highlight the aesthetics, while the threaded bottom bracket and internal cable routing allow for easy maintenance and long-lasting use. The flat-mount disc brake integrates seamlessly with our kickstand, and the integrated mounting points enable the installation of fenders and an ACID carrier. The geometry is carefully adjusted with a lower top tube for more confident riding, and the clearance for 2.25-inch tires provides grip and comfort. The extended Size Split system ensures there is a perfect Aim bike for everyone.
Technology
Aluminum lite
Aluminum alloy 6061 is resistant to corrosion and stress, making it suitable for lightweight tubes with high stiffness.
Advanced Hydroforming
This method of production reduces the number of welds, reduces the mass of the frame and increases its durability.
Integrated cables
Nicer bicycle appearance as the Majn cables are visible and thus protected from injuries and other influences
Comfortable geometry
With a specially designed frame, you can also cycle longer distances.
Modern geometry
The modernly designed frame provides you with control and comfort on rugged terrain.
Hydraulic brakes
Hydraulic brakes for maximum braking power in all conditions.
Quick Release OS
QR OS for faster removal and attachment of wheels.
Size table
Properly selected bike size is crucial for your safety and comfort. The appropriate size is selected based onour body height.
Specifications
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount | ||
| Fork | Sr Suntour Xce, 100mm | ||
| Rear shock | - | ||
| Wheel size | Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24") | ||
| Speeds | 9 | ||
| Front lever | - | ||
| Rear lever | Shimano Cues SL-U4010- Rapidfire-Plus | ||
| Front derailleur | - | ||
| Rear derailleur | Shimano Cues RD-U4000-GS, 9-Speed | ||
| Crankset | Prowheel CC10Y-NW, 32T, 170mm | ||
| Front brake | Tekro HD-M275, Hydr, Disc Brake, PM/FM | ||
| Rear brake | Tekro HD-M275, Hydr, Disc Brake, PM/FM | ||
| Front rotor | 160 | ||
| Rear rotor | 160 | ||
| Tyre | CUBE MTB, 2.25 | ||
| Rim | CUBE EX25, 32H, DISC, Tubeless Ready | ||
| Front hub | Cube Alloy Light, QR, 6-Bolt | ||
| Rear hub | Cube Alloy Light, QR, 6-Bolt | ||
| Cassette | Shimano Cues CS-LG300, 11-46T | ||
| Hadlebar | Cube rise trail bar, 680mm | ||
| Steam | CUBE Performance Stem, 31.8mm | ||
| Seatpost | CUBE Performance Post, 27.2mm | ||
| Sadlle | Acid wreath of lite | ||
| Pedals | CUBE PP MTB | ||
| Weight | 14.1 kg |
