About the product
Mare Eecalk (Auto): A carefree ride around the city with an automatic transmission.
Cycling with Econa Mare not only offers you active leisure, but also improves health and increases energy. Driving through the city streets reduces stress, which increases the feeling of happiness. Regular physical activity is key to mental health, and Econo Mare allows you to do this in an elegant and fun way.
The ECONO Mare combines elegance and performance, featuring a Bafang M210 electric drive with 70Nm of torque that elevates the cycling experience to a whole new level. This bike is designed for those who value both style and functionality, whether riding through city streets or exploring suburban paths.
ECONO MARE is equipped with an ECONO high -performance battery available in two versions: 520Wh, 700Wh or 800Wh. With it, you will be able to travel long distances without worry and enjoy every kilometer as it provides carefree and long -lasting adventures.
The Mare EECALK (AUTO) delivers exceptional comfort and durability with its advanced 3-speed automatic hub transmission. It features a belt drive, ensuring longer lifespan and minimal maintenance – no lubrication needed. The automatic shifting function allows for smooth riding without worrying about gear changes, with gear ratios of 1:1.30:1.65, ideal for city streets or flat terrains. Combined with reliable Tektro hydraulic brakes, the Mare EECALK ensures dependable stopping power and a quiet, carefree ride every time.
From elegantly designed frame to ergonomically designed components, Econo Mare regulates the style and functionality.
Specifications
| Frame | ALU 6061 Mare EE-BELT SKY BLUE YS-9417 |
| Fork | SR-SUNTOUR 28 '' E25 HLO DS, 50mm |
| Wheel size | 28 '' |
| Speeds | 3- automatic gears |
| Gear shifters | - |
| Rear derailleur | 3-speed automatic gearbox with Bafang RG A310 rear hub |
| Crankset | 40T, crank: 170mm |
| Front brake | Tektro HD-T275 Hidravljične disk zavore |
| Rear brake | Tektro HD-T275 Hidravljične disk zavore |
| Brake discs | Front: 180 mm, rear: 160mm |
| Tyre | OBOR Mambo E25 28"x2.0 (50-622) |
| Wheelset | 700c/28 "36h Aluminium Double Walled Rome, 622x24mm |
| Front hub | Novatec D761SBT M9/OLD: 100,13G*36h |
| Rear hub | Bafang RG A310 |
| Cassette | Last Chain 22T |
| Handlebar | M-WAVE HB-C2.1 640 mm, 31.8, backsweep in 38°, 36° upsweep |
| Stem | M-WAVE ST-C2.1 0-90 adjustable, 31,8mm 90mm |
| Seatpost | ZOOM, Objemka 31.8 mm |
| Saddle | Justek 260x190mm |
| Pedals | Plastic Feiming FP-803 |
| Front light | Yes |
| Rear light | Yes |
| Motor | Central Bafang M210, 250W, 36V, 70nm |
| Display | Bafang DP C270 |
| Battery | Econo Elk 540Wh integrated battery (15AH) / 720Wh (20Ah) / 835Wh (23AH) |
| Maximum total weight allowed | 120 kg |
| Range | Up to 160 km |
| Charger | ECONO 36V 2A 3pin for battery 540Wh and ECONO 36V 4A 3pin for 720Wh and 835Wh battery |
| Weight | 26.9 kg |

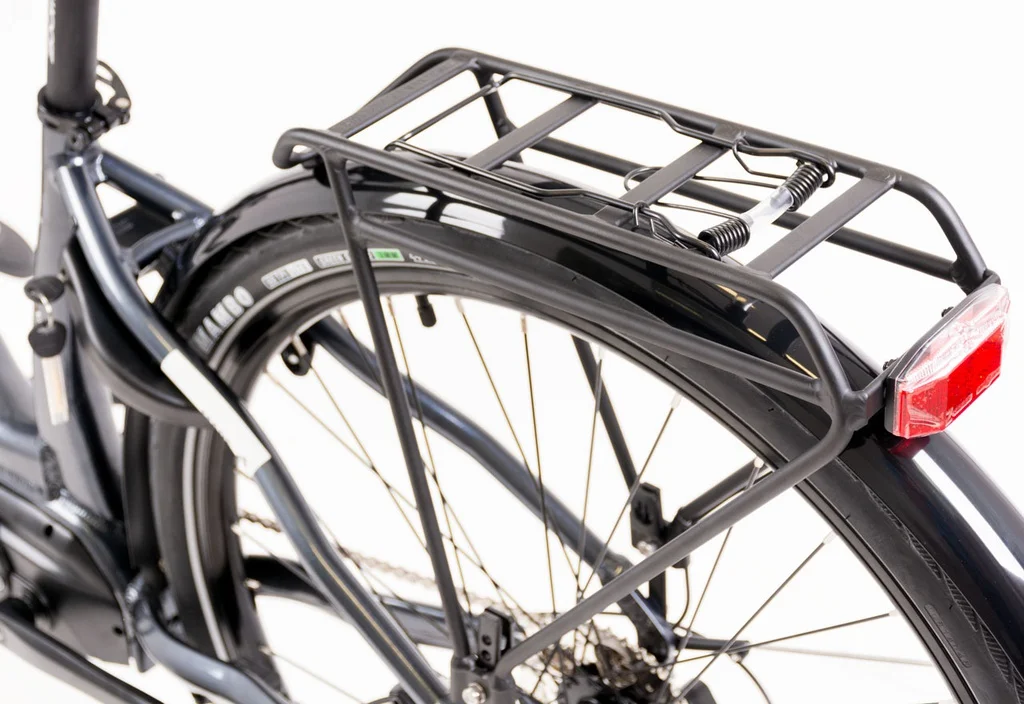

| Accessories | Kickstand, fenders, rear carrier, integrated lock |
| Guarantee | 2 years on the battery and motor, 3 years on the frame, and 1 year on components that are not consumables (brake pads, disc, tires, inner tube, chain, sprocket). |
Video
Pictures
Technology
Centralni motor
Bafang M210, 36V, 250W, 70nm
A detachable integrated battery
Allows easy battery removal and installation in the frame without tools.
ECONO Battery 540 Wh or 720 WH
An effective and reliable energy source. ECONO 540Wh integrated battery (15Ah), 720Wh (20Ah) or 835Wh (23AH).

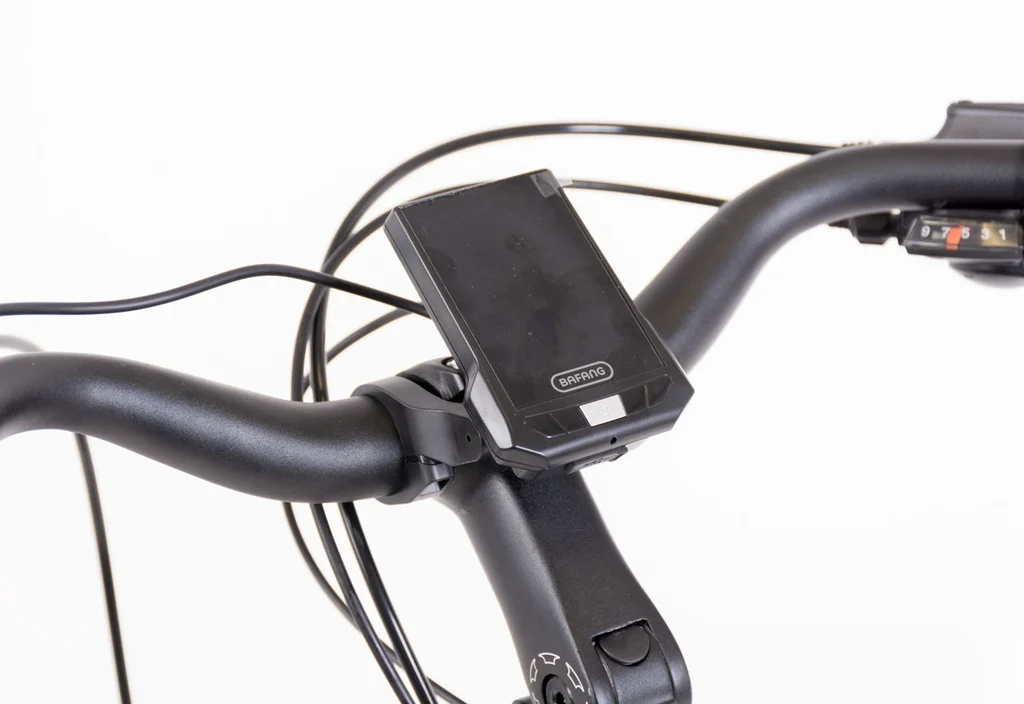

DP C270
A large high -contrasting LCD screen ensures that all important data is large and easily readable in direct sunlight.
ECONO 2A charger
The charger 100% recharges the batteries 720 in about 8.8h. 50% about 4.2h ..
Aluminum lite
6061 aluminum alloy is resistant to corrosion and stress, making it suitable for lightweight tubes with high stiffness.

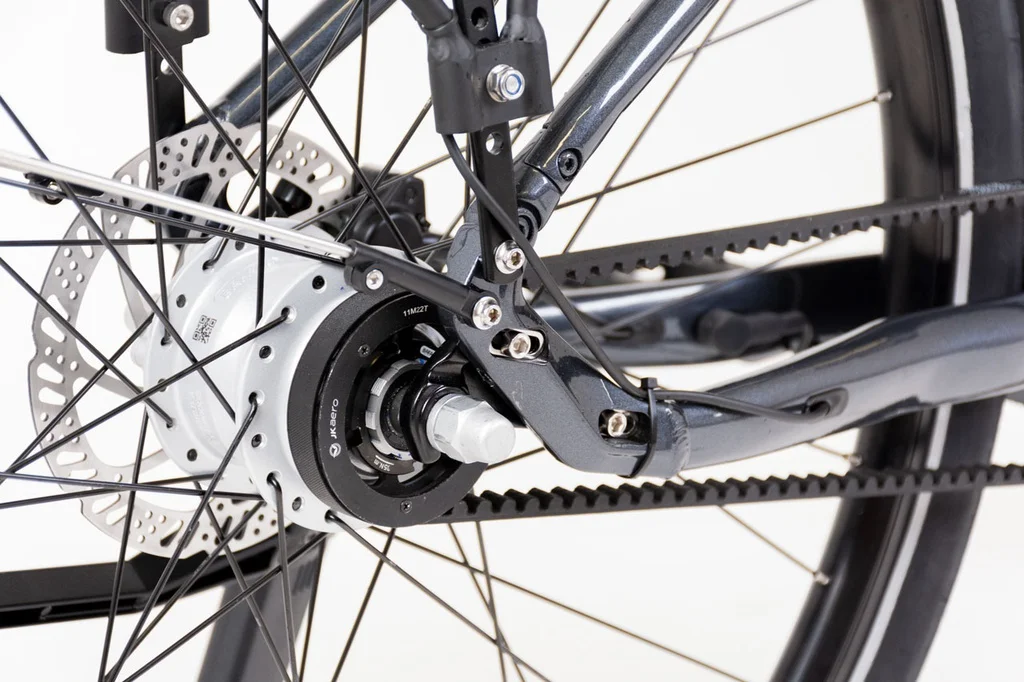

Automatic gears
3-speed automatic transmission, automatically adjusts gears according to speed and terrain.
Toothing belt
String drive, provides quiet driving, longer life and does not require lubrication, which reduces the need for maintenance.
Advanced Hydroforming
This method of production reduces the number of welds, reduces the mass of the frame and increases its durability.
Comfortable geometry
With a specially designed frame, you can also cycle longer distances.

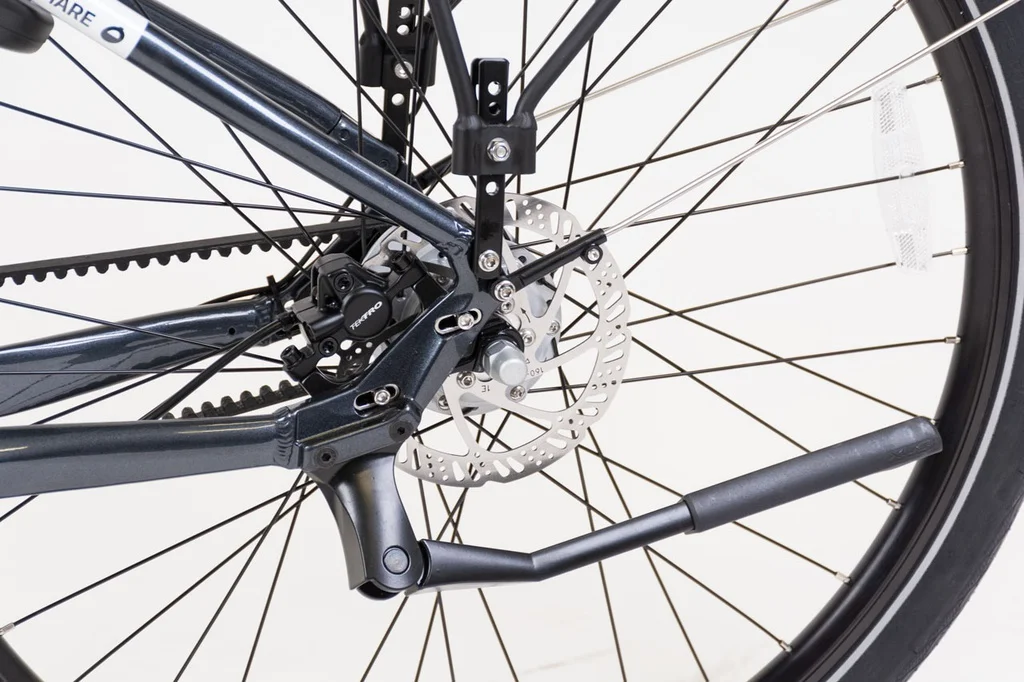

Hydraulic brakes
Hydraulic brakes for maximum stopping power in all conditions.
Quick Release OS
QR OS for faster removal and attachment of wheels.
Ligths
Be visible and increase your safety and time on the wheel with the front and rear LED lights.

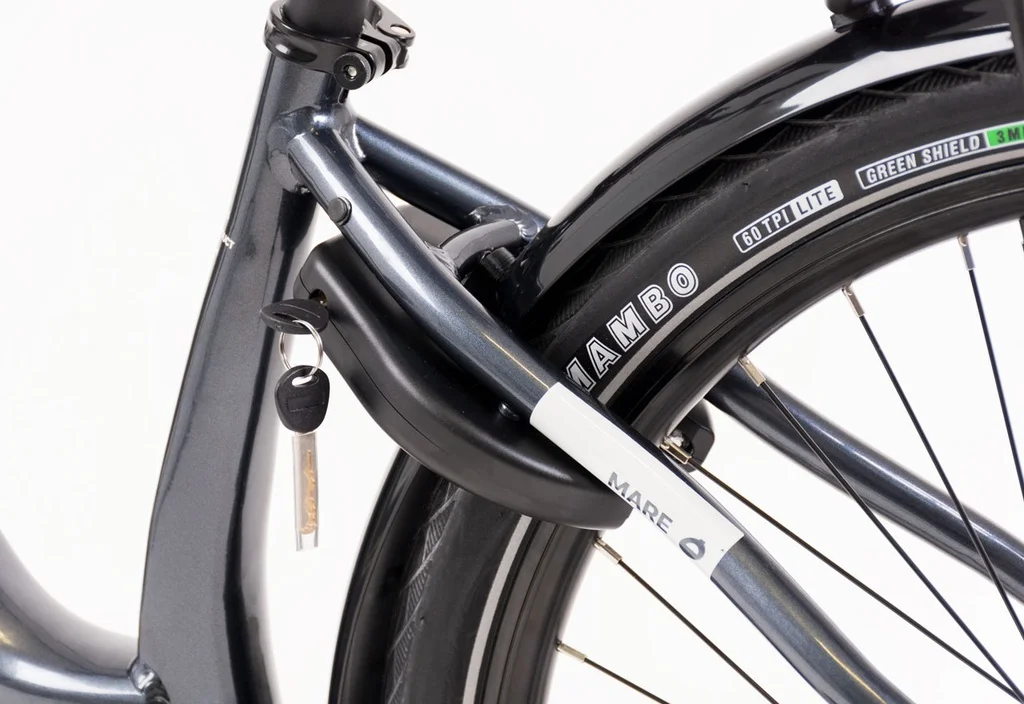

Integrated lock
Ključavnica je integrirana v okvir kolesa, kar zagotavlja dodatno varnost in priročnost pri vsakodnevni uporabi.
A size table
Properly selected bike size is crucial for your safety and comfort. The appropriate size is selected based onour body height.
