About the product

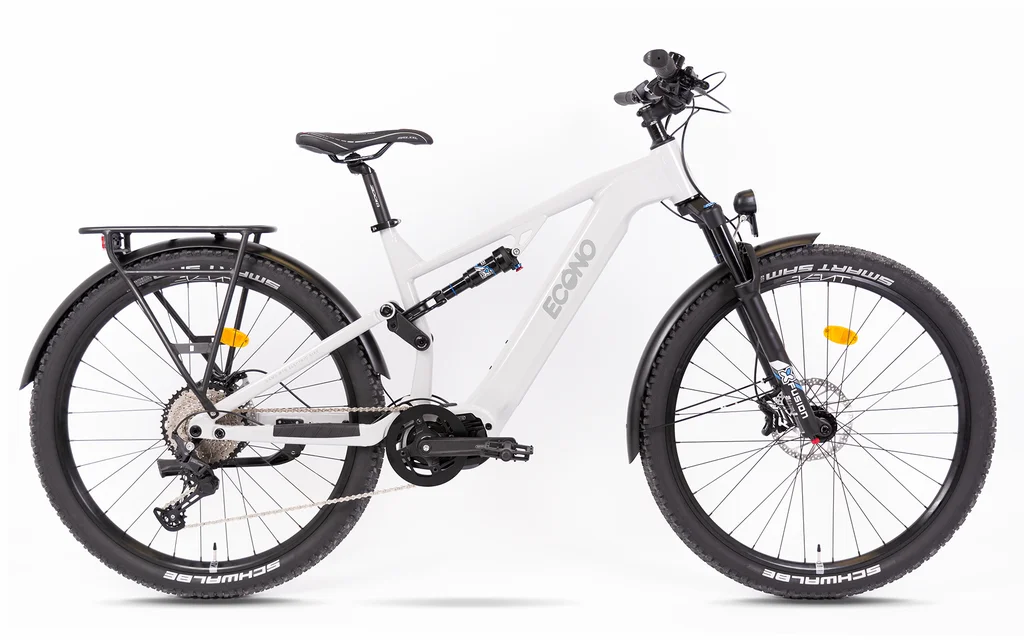

Spoznajte vsestransko električno kolo ECONO Pantera SUV C6, ki združuje zmogljivost, udobje in praktičnost za vse vaše avanture, od mestnih ulic do makadamskih poti. To kolo poganja močan osrednji motor Bafang M410, ki sprosti kar 80 Nm navora in omogoča lahkotno vožnjo tudi po zahtevnih terenih. Pantera SUV C6 je več kot le kolo – je partner, ki vas spremlja pri odkrivanju novih razsežnosti mobilnosti.
Zasnovan z mislijo na uporabnika, okvir združuje trpežnost in eleganco. Njegova kakovostna izdelava omogoča brezskrbno vožnjo po raznolikih podlagah, medtem ko aluminijasti blatniki, mik prtljažnik in vgrajene luči poskrbijo za dodatno praktičnost in varnost. Kolo dopolnjujeta udoben sedež in ergonomski ročaji, ki zagotavljajo vrhunsko udobje tudi na daljših vožnjah.
The bike is powered by a reliable ECONO battery that we develop and assemble at our plant, and is available in three capacities: 520Wh, 700Wh and 800Wh. All batteries are interchangeable among our models for 2025, which allows for greater flexibility. You follow the driving data on a compact, color side screen where you can choose between five levels of help: ECO, Tour, Sport, and Boost.
The ECONO PANTERA SUV C6 brings a perfect balance between performance and comfort. You will be prepared for every adventure - be it a city ride or exploration of the unknown. With this bike, a new story begins every day.
Technology
Sredinski motor
Bafang M410 36V, 80 Nm
A detachable integrated battery
Omogočena enostavna odstranitev in namestitev baterije v okvir brez orodja.

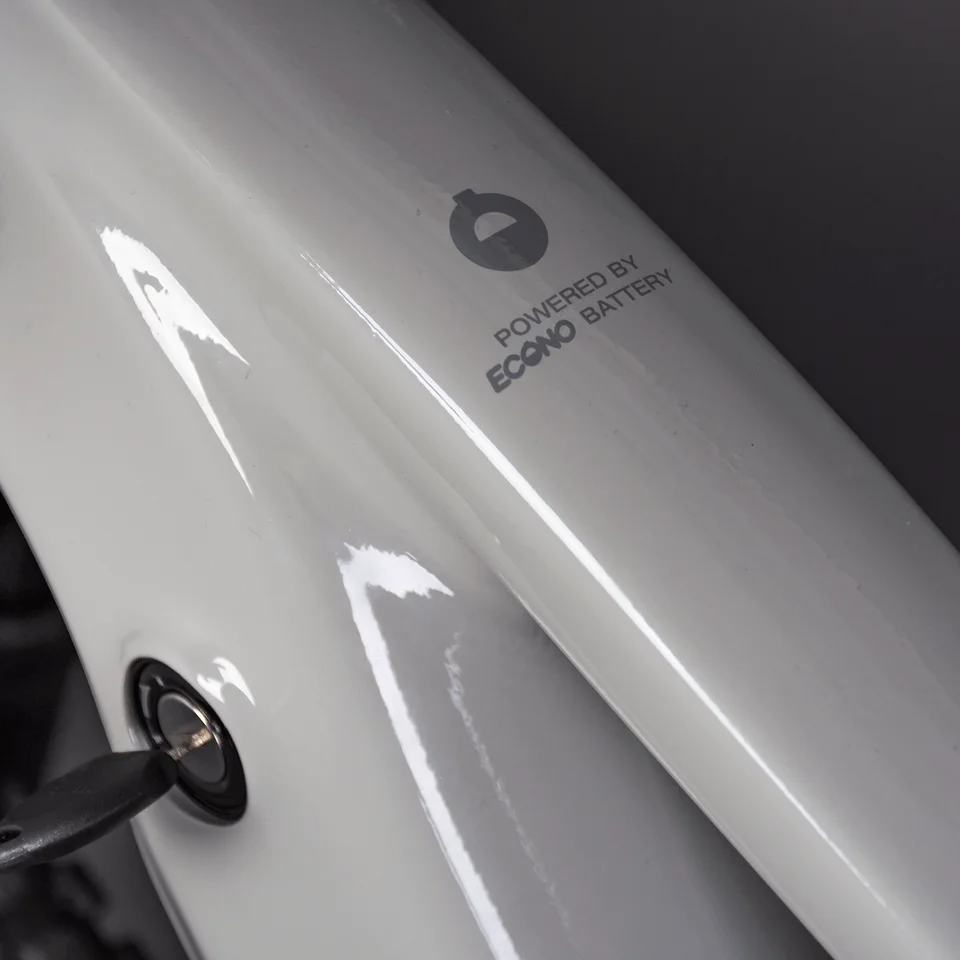

Econo battery
The 720Wh or 835Wh ECONO ECONO will allow you to enjoy long runs.
Bafang DP C080
You follow the driving data on a compact, color side screen.
ECONO 4A charger
The charger 100% recharges the ECONO 720 batteries in about 4.4h. 50% is about 2.2h.
Aluminum lite
Aluminijeva zlitina 6061 je odporen na korozijo in obremenitve in je primeren za lahke cevi z visoko togostjo.
Advanced Hydroforming
This method of production reduces the number of welds, reduces the mass of the frame and increases its durability.

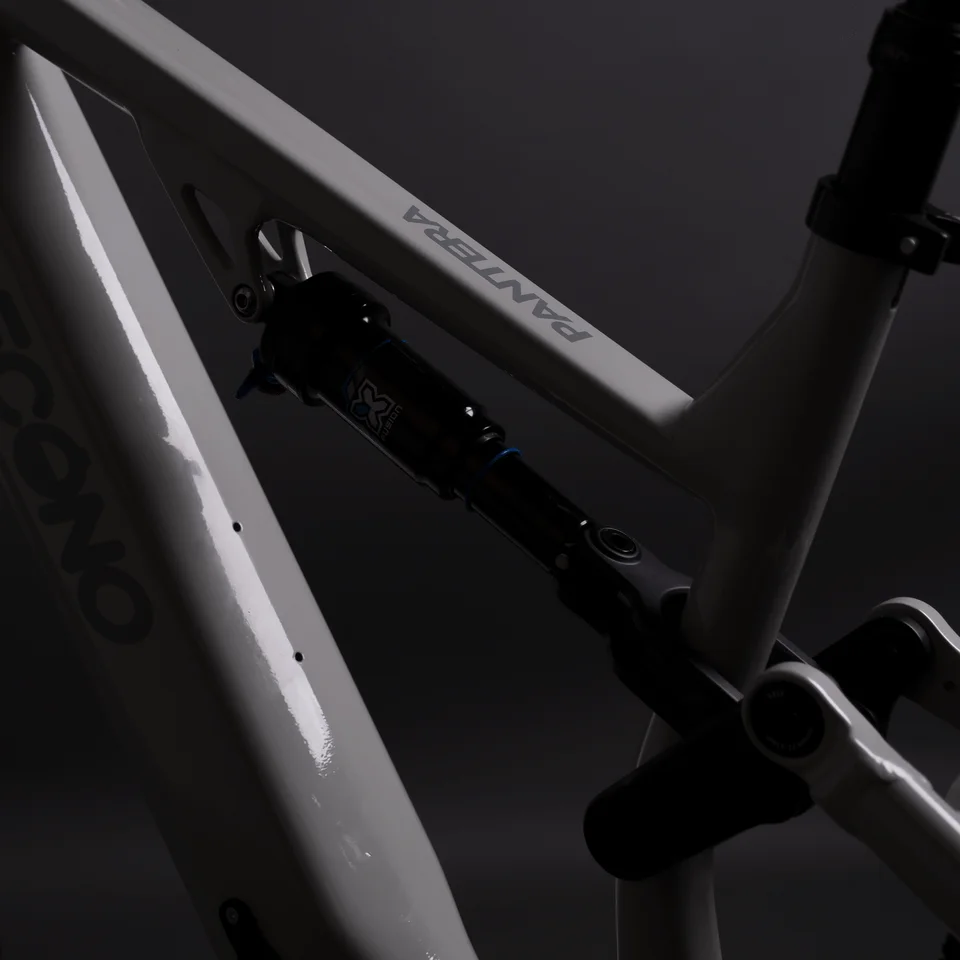

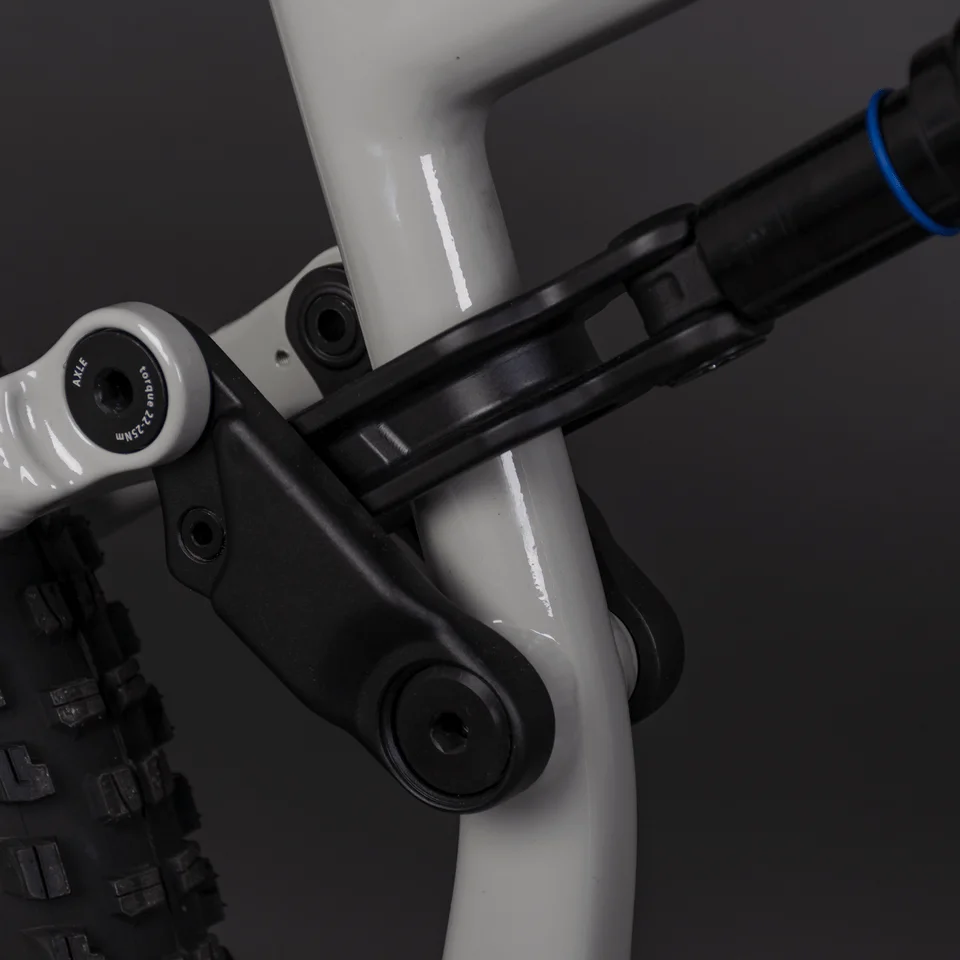

Zadnji amortizer
The suspension works well in all conditions and can adjust to the weight of the cyclist.
Air suspension
The suspension works well in all conditions and can adjust to the weight of the cyclist.
Hidravlične zavore
Hidravljične zavore za maksimalno zavorno moč v vseh razmerah.
Boost 148 hubs
The Boost 148 mm technology provides accurate wheel guidance on each terrain.
Illumination
Be visible and increase your safety and time on the wheel with the front and rear LED lights.
MIK compatible trunk
With a MIK universal click system, you can replace cycling accessories without effort.
Aluminum fenders
Equipped with light and durable aluminum fenders.
Specifikacije
| Frame | ALU 6061 ECONO FULL |
| Fork | SR SUNTOUR SF23-X1-BOOST AIR LOR DS 15AH2-110 29 "T120 |
| Zadnji amortizer | X-Fusion O2 Pro RL 190x40mm |
| Wheel size | 29 '' |
| Speeds | 1x11 gears |
| The last gear lever | Shimano Deore SL-M5100-R 11s |
| Rear transmission | Shimano Deore RD-M5100 11s SGS |
| A chain ghone | Bafang Gonilka, Front Choir 38T |
| Sprednja zavora | TRP HD-M807 Slate Evo 4 Piston |
| Zadnja zavora | TRP HD-M807 Slate Evo 4 Piston |
| Sprednji zavorni disk | 203 mm, 2.3 mm |
| Zadnji zavorni disk | 180 mm, 2.3 mm |
| Coat | Schwalbe Smart sam Perf. 29x2.60 |
| Ring | HLQC-03 Alloy/29"36H/A/V.W35mm.H21mm/black |
| Fist | Novatec Boost (F: 15x110; R: 12x148) |
| Chain | Shimano CN-LG500 11S |
| The last chivaries | Shimano CS-M5100 11S 11-51T |
| Helm | MTB 31.8, 780mm |
| The handlebar carrier | Alu. Black, 31.8mm E: 60mm |
| Sedežna opora | Alu. Black 30.9mm 350mm |
| Seat | SUV Style |
| Pedal | FP-803 Plastic |
| The front light | C13 Pure, 6-48V, DC |
| Rear | WUXING, WD216.6-48V, DC |
| Motor | Bafang M410 36V, 80 Nm |
| Screen | Bafang DP C080.C |
| Torch | ECONO ELK 520Wh, 700Wh or 800Wh |
| Payload | 135 kg (the largest weight of a rider and bicycle) |
| Range | Bike carrier (foot), fenders (aluminum), trunk (MIK) |
| Charger | ECONO 36V 2A 3pin for battery 520Wh and ECONO 36V 4A 3pin for 700Wh and 800Wh battery |
| Weight | 24.70 Kg brez baterije |
| Guarantee | 2 leti na baterijo in motor, 3 leta na okvir in 1 leto na komponente, ki niso potrošni material (zavorne obloge, disk, plašči, zračnica, veriga, verižnik) |
A size table
Properly selected bike size is crucial for your safety and comfort. The appropriate size is selected based onour body height.
Geometry
| Moderates | M | L | XL |
| Seat tube (a) | 450 | 470 | 490 |
| Top tube horizontal (B) | 458 | 473 | 488 |
| Seat angel (c) | 70.2°/75.5° | 70.2°/75.5° | 70.2°/75.5° |
| Head Tube Angel (D) | 65 ° | 65 ° | 65 ° |
| Chainstay (s) | 470 | 470 | 470 |
| Headtube (F) | 120 | 120 | 120 |
| Wheelbase (G) | 1248.4 | 1263.4 | 1278.4 |
| Stack (h) | - | - | - |
| REACH (i) | 458 | 473 | 488 |
The scope of the package
1x Electrical full -time Econo Panther bike
1x ECONO ELK battery
1x charger ECONO 3 PIN 2A/4A
1x instructions
