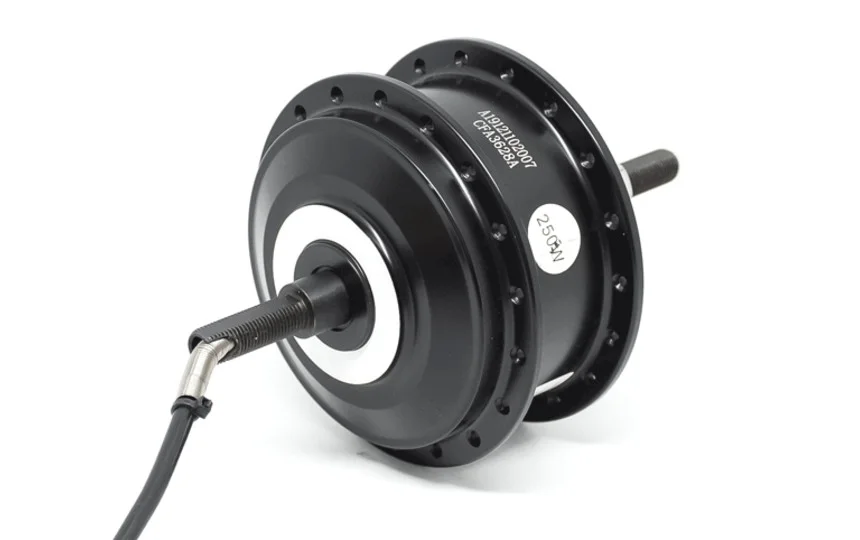

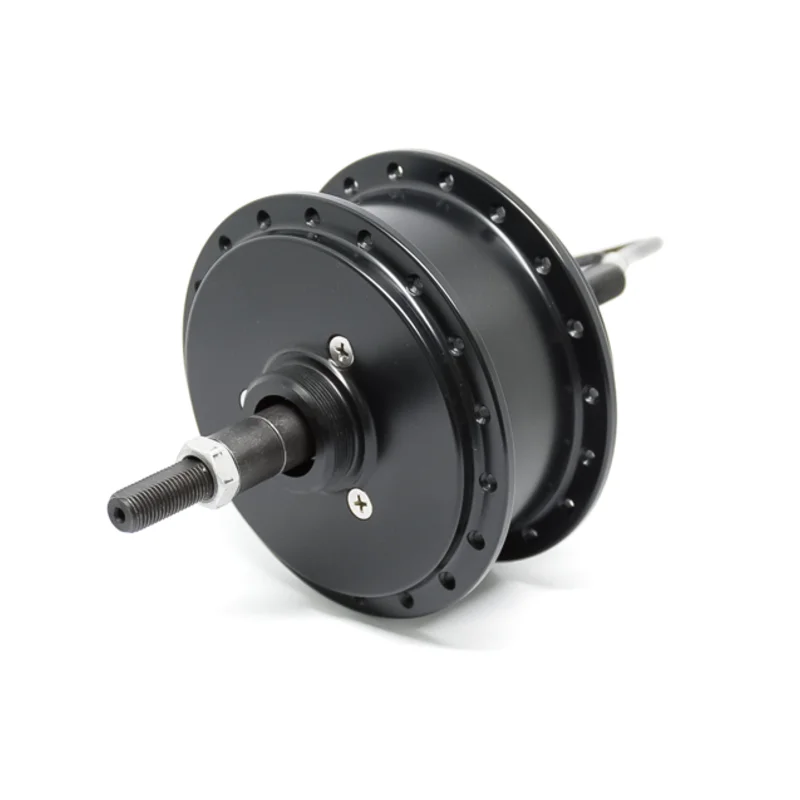

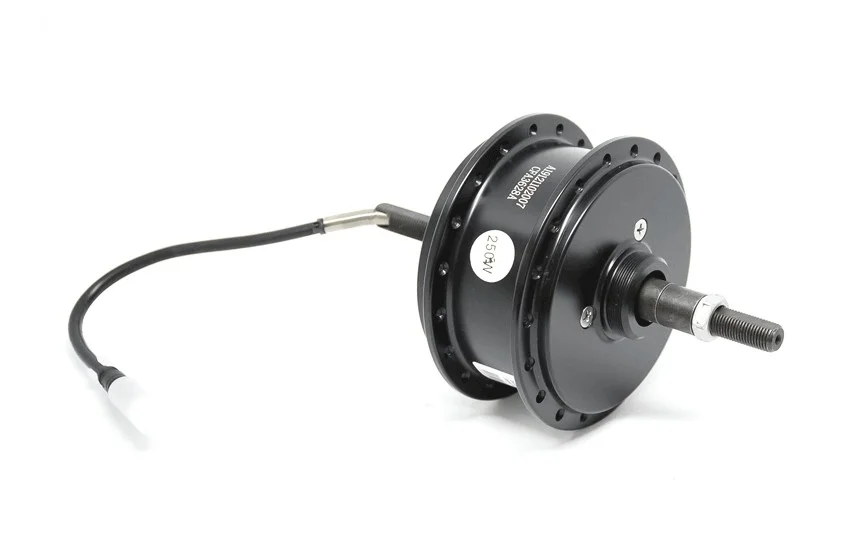

Rear engine TSD100R 36V 250W THREAD
It is suitable for urban cycling as well as for driving on straight routes. It behaves with a small weight and dimensions. It's got 50Nm of torque.
| Dimension H1 | 109mm |
| Dimension H2 | 120mm |
| Dimension W1 | 8mm |
| Dimension W2 | 39,8mm |
| Dimension W3 | 15,5mm |
| Dimension W4 | 47mm |
| Dimension W5 | 25 |
| Dimension W6 | 27,5 |
| DIMENSION OLD | 138,5mm |
| Rated voltage | 36V |
| Rated power | 250W |
| Supported wheel size | 12" to 28'' |
| Max. moment | 50Nm |
| Speed | 25km/h |
| Weight | 2,1kg |
| IP protection | 65 |
| Efficiency | ≥80 |
| Operating temperature range | from -20 to 45°C |
