About product

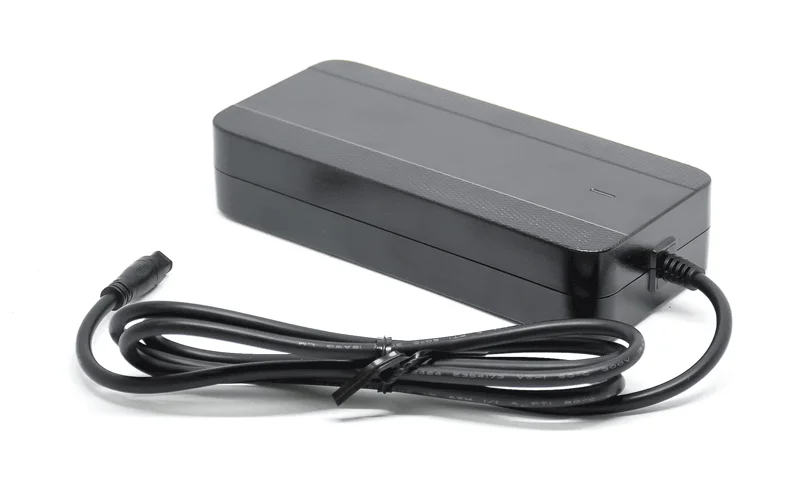

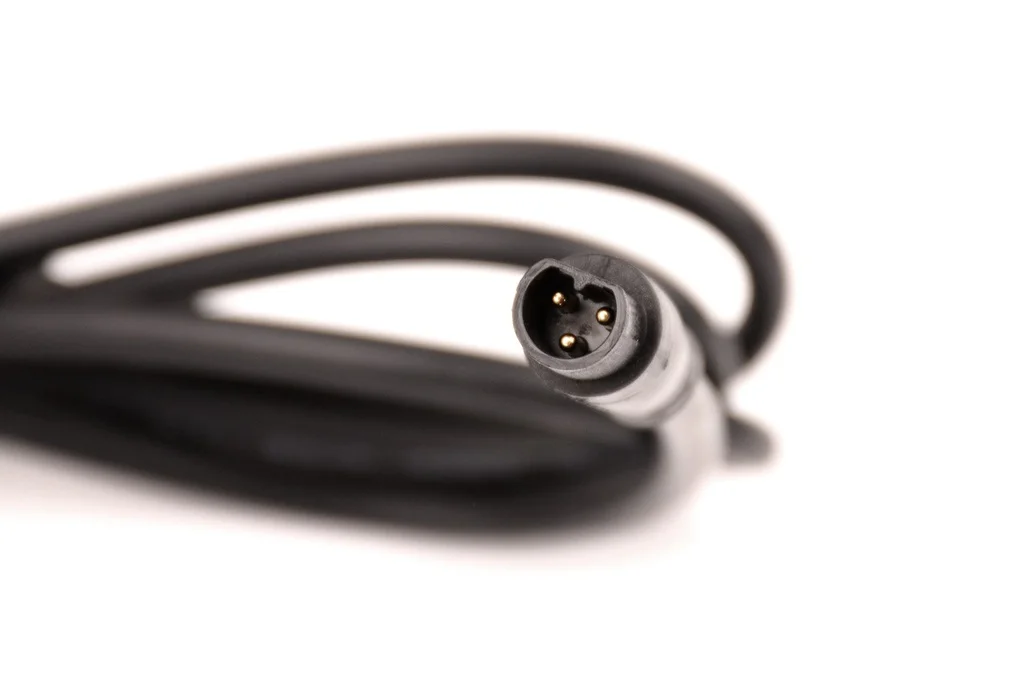

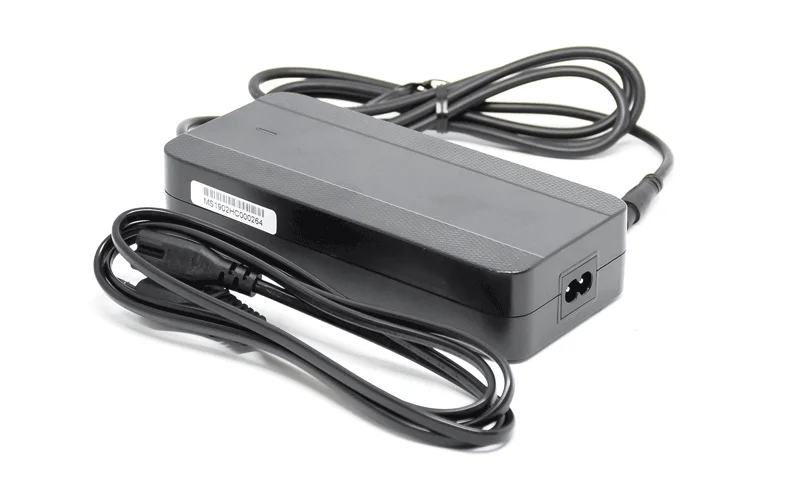

Charging the Econo filler with 4A current. The 36V Econo battery is used by a 3pin connector. This charger allows the battery temperature to be monitored, which inappropriately increases charging safety. The charger charges the battery using the CC-CV method. The maximum charging voltage is 42V.
Charging time
Our batteries can only be charged with Econo chargers.
Baterija Econo 378Wh (10,5Ah) Econo 630Wh battery (17.5Ah)
Prime 50%
Approximately 1.5 hours
Prime 100%
Approximately 3 hours
Baterija Econo 504Wh (14Ah) Econo 630Wh battery (17.5Ah)
Prime 50%
Approximately 2 hours
Prime 100%
Approximately 4 hours
Baterija Econo 630Wh (17,5Ah) Econo 630Wh battery (17.5Ah)
Prime 50%
Approximately 2.5 hours
Prime 100%
Approximately 5 hours
Baterija Econo 756Wh (21Ah) Econo 630Wh battery (17.5Ah)
Prime 50%
Approximately 3 hours
Prime 100%
Approximately 6 hours
Protective features
Overvoltay protection
Over-current protection
Short-circuit protection
Auto-off when the battery is full
Taking into account the temperature range
It only charges when the battery is in the range between 10 and 45°C, which affects battery lifeCharging mode
Up to approx. 80olni% p with constant current 2A (CC)
The last percent with a constant voltage of 42V (CV)
Package included
1x Charger for 36V Battery Econo / 4A 3pin
