About the product

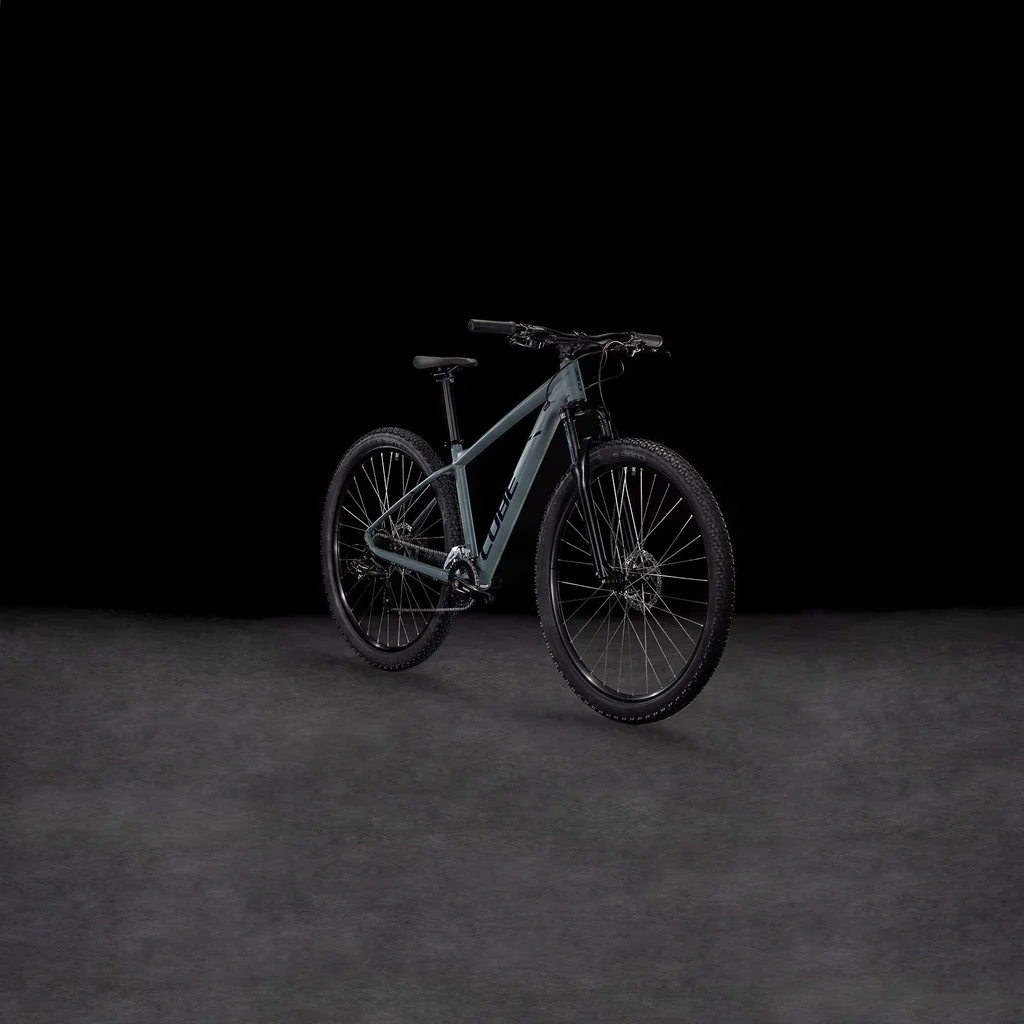

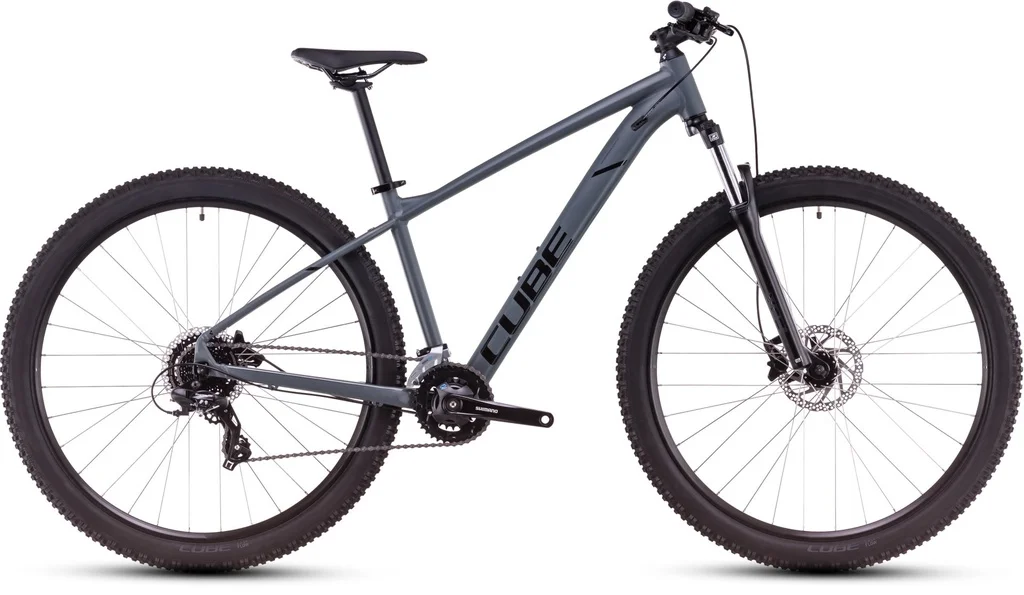

The look of the Aim bike is not only elegant but also thoughtfully designed. Smoothly welded joints between the top and seat tubes enhance the aesthetics, while the threaded bottom bracket and internal cable routing allow for easy maintenance and long-term durability. The flat-mount disc brake interface integrates seamlessly with our kickstand, and the integrated mounting points make it easy to add fenders and an ACID carrier. The geometry is carefully adjusted with a lower top tube for more confident handling, and clearance for 2.25-inch tires ensures grip and comfort. The extended Size Split system ensures that there's a perfect Aim bike for everyone.
Technology
Aluminum lite
Aluminium alloy 6061 is resistant to corrosion and stress, making it ideal for lightweight tubes with high stiffness.
Advanced Hydroforming
This method of production reduces the number of welds, reduces the mass of the frame and increases its durability.

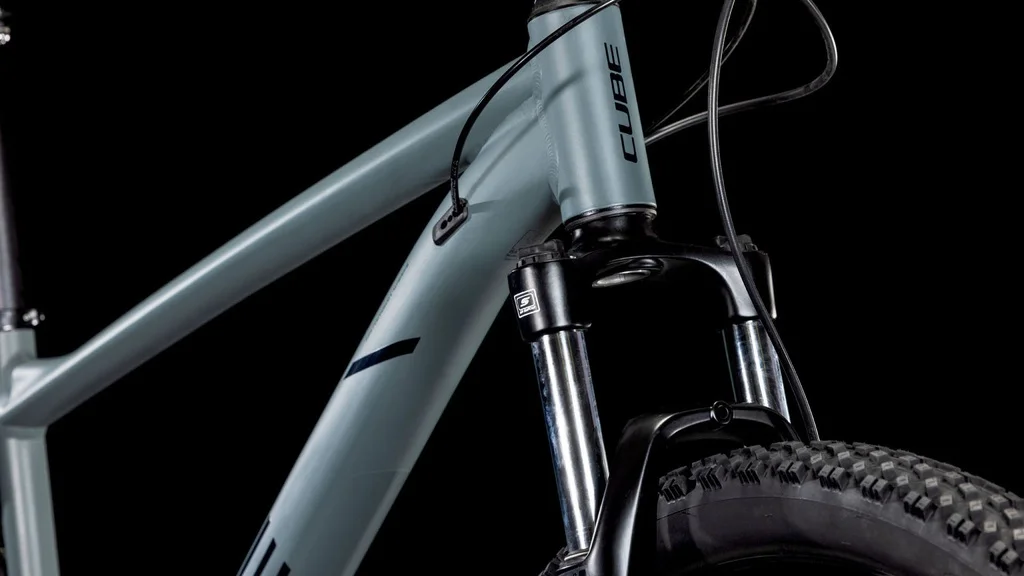

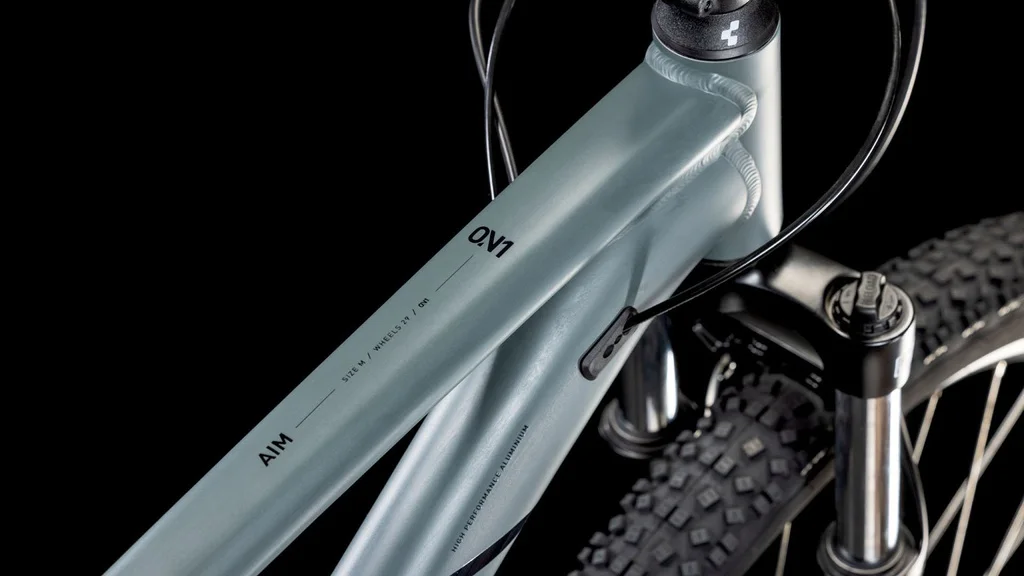

Integrated cables
Nicer bicycle appearance as the Majn cables are visible and thus protected from injuries and other influences
Comfortable geometry
With a specially designed frame, you can also cycle longer distances.
Modern geometry
The modernly designed frame provides control and comfort on rough terrain.
Hydraulic brakes
Hydraulic brakes for maximum braking power in all conditions.
Quick Release OS
QR OS for faster removal and attachment of wheels.
Size table
Properly selected bike size is crucial for your safety and comfort. The appropriate size is selected based onour body height.
Specifications
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount | ||
| Fork | Sr Suntour Xce, 100mm | ||
| Rear shock | - | ||
| Wheel size | Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24") | ||
| Speeds | 16 | ||
| Front lever | Shimano SL-M315, Rapidfire-Plus | ||
| Rear lever | Shimano SL-M315, Rapidfire-Plus | ||
| Front derailleur | Shimano FD-M315, Top Swing, 31.8mm Clamp | ||
| Rear derailleur | Shimano RD-M360, 8-Speed | ||
| Crankset | Shimano FC-M315, 36x22t, 170mm | ||
| Front brake | Clarks Clout 1, Hydr. DISC Brake PM/PM | ||
| Rear brake | Clarks Clout 1, Hydr. DISC Brake PM/PM | ||
| Front rotor | 160 | ||
| Rear rotor | 160 | ||
| Tyre | CUBE MTB, 2.25 | ||
| Rim | CUBE ZX20, 32h, disc | ||
| Front hub | Cube Alloy Light, QR, 6-Bolt | ||
| Rear hub | Cube Alloy Light, QR, 6-Bolt | ||
| Cassette | Shimano CS-HG200, 12-32T | ||
| Handlebar | Cube rise trail bar, 680mm | ||
| Steam | CUBE Performance Stem, 31.8mm | ||
| Seatpost | CUBE Performance Post, 27.2mm | ||
| Sadlle | Acid wreath of lite | ||
| Pedals | CUBE PP MTB | ||
| Weight | 14.5 kg |
