The Advanced Internal Cable Routing system routes the brake and gear cables through the headset without the need for openings in the frame. The result is a clean, tidy appearance with no exposed cables.
About the product
S kolesom Cube Stereo Hybrid ONE44 HPC RACE 800 imate popoln nadzor nad dogajanjem. Z zmogljivim pogonskim sistemom Bosch CX, krmilnikom Purion 400 in 800-Wh baterijo boste uživali v zanesljivi pomoči pri pedaliranju, tudi na daljših raziskovalnih poteh. Vilice in zadnji amortizer z zračnim vzmetenjem Fox v kombinaciji s preverjeno kinematiko podjetja CUBE zagotavljata udobno vožnjo in odličen stik s podlago. Oprijemljive pnevmatike Schwalbe širine 2,6 ter močne hidravlične kolutne zavore Magura omogočajo natančen nadzor hitrosti. Z enostavnimi menjalniki Shimano Deore XT 1x12 pa boste vedno

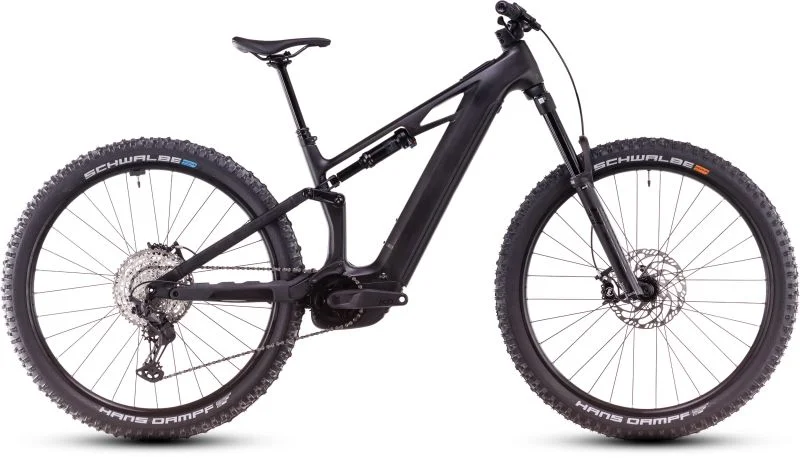

With the Cube Stereo Hybrid ONE44 HPC RACE 800 bike, you have complete control over every ride. Thanks to the powerful Bosch CX drive system, Purion 400 controller, and 800 Wh battery, you’ll enjoy reliable pedaling assistance even on longer exploration routes. The Fox air suspension fork and rear shock, combined with CUBE’s proven kinematics, ensure a comfortable ride and excellent ground contact. Grippy 2.6-inch Schwalbe tires and powerful Magura hydraulic disc brakes provide precise speed control. And with the easy-to-use Shimano Deore XT 1x12 drivetrain, you’ll always be ready for new challenges. It’s time to explore!
Technology
Fully integrated battery
The Fully Integrated Battery system hides the Bosch battery inside the bottom pipe of the frame. Safe locked and protected from dust and water allows for a modern design of electric bikes, which are aesthetic and extremely functional at the same time.
Advanced internal cable wiring
Modular battery system
With the Battery System modular, the battery can be easily removed and charged directly on or off the bike. The frame allows high -capacity batteries to be installed - for more range and carefree ride.
Sizesplit - Custom Sizes
SizeSplit ensures the perfect fit for every rider’s height. Smaller frames with 27.5-inch wheels are designed for shorter riders, while larger frames with 29-inch wheels suit taller users – always comfortable and stable.
Boost 148 - stronger rear hubs
A wider hub means a more rigid wheel, which improves handling. The Boost 148 allows for a greater distance between the flanges of the hub, which improves stiffness and durability of the rings without affecting the operation of the gears.
Agile geometry for comfort
Agile Ride Geometry combines a comfortable ride, a natural seating position, and confident handling. Ideal for everyday use and longer trips – enjoyment in every kilometer.
Universal rear transmission carrier
Universal Derailleur Hanger means that the broken gearbox does not spoil your day. Compatible with all drive systems, with the possibility of rotation to prevent chain pinching - simply replaceable anywhere.
Adjustable as a steering bearing
When you overcome gravity, the terrain is demanding and every second is counted - so the geometry of your bike cube is crucial. The adjustable steering bearing allows you to adjust as the control pipes to your liking. A little more relevant for greater stability or more upright for agility - the choice is yours.
High -performance carbon material
HPC – High Performance Carbon – allows the creation of lighter, stiffer, and more rigid frames from an exceptionally versatile material. Through precise frame shaping and adjustment of layer thickness, it’s possible to optimize the balance between weight, stiffness, strength, and durability for each frame.
Advanced Twin Mold
The Advanced Twin Mold process uses two precisely manufactured molds for C:62®, C:68®, and C:68X® carbon frames. The first mold ensures accurate layer placement, while the second – the inner mold – keeps every fiber perfectly positioned during curing. The result is a significantly lighter and stiffer frame with optimally distributed fiber density at precisely defined stress points.
Holder for Flat Mount Stand
Wheels without movement do not stand upright - which can be a problem when you have nowhere to lean. The Flat Mount system offers a practical, safe and aesthetic solution to install a stand, which can be used to park the bike on every flat surface.
Specifikacije
| Frame | C: 62® Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 ReaR Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH ™, Full Integrated Battery, Advanced Internal Cable Routing Routing | |
| Frame material | Carbon | |
| Wheel size | Size Split: 27.5: S // 29: M L XL | |
| Speeds | 1x12 | |
| Color | blackline | |
| Fork | Fox 36 Float Awl, Rail Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm | |
| Rear Shox | Fox Float Rhythm R, 230x60mm (27.5: 210x55mm), Rebound Adjust | |
| Travel | 150 mm / 140 mm | |
| Brakes | Magura Mt Thirty, Front 4-Piston/Rear 4-Piston, Hydr. DISC Brake | |
| Disc size | 203/203 mm | |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment | |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link | |
| Handlebar | Cube rise trail bar 35 | |
| Grips | Acid Disrupt | |
| Seat | ACID Wreath EMTB Trail 140 | |
| Seatpost | CUBE potopna sedežna opora, Handlebar Lever, Internal Cable Routing, 31.6mm | |
| Crankset | ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T | |
| Rear derailleur | Shimano XT RD-M8100-SGS, Shadowplus, 12-Speed | |
| Rear Shifter | Shimano Deore SL-M6100, Rapidfire-Plus | |
| Chain guide | Reverse Flip-Guide e-Chain Guide, Direct Mount, I-Plate | |
| Cassette | Shimano Deore CS-M6100, 10-51T | |
| Chain | KMC E12 | |
| Tire | Prednja guma: Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6, zadnja guma: Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6 | |
| Front hub | CUBE Engineered by Newmen, 15mm, Boost, 6-Bolt | |
| Rear hub | CUBE Engineered by Newmen, 12mm, Boost, 6-Bolt | |
| Rim | CUBE EX30, 32H, DISC, Tubeless Ready | |
| Screen | Bosch System Control Incl. Mini Remote, Bosch Purion 400 | |
| Battery | Bosch PowerTube 800 | |
| Charger | Bosch 2a | |
| Motor | Bosch Drive Unit Performance Line CX 85Nm Gen.5, (BDU38), Smart System | |
| Shox mount | Front: 30x8mm, REAR: DU-BUSHING 12.7mm | |
| Maximal weight | 160 kg (cyclist weight + bicycle + equipment) | |
| Weight | It starts at 24.4 kg |
A size table
Properly selected bike size is crucial for your safety and comfort. The appropriate size is selected based onour body height.
