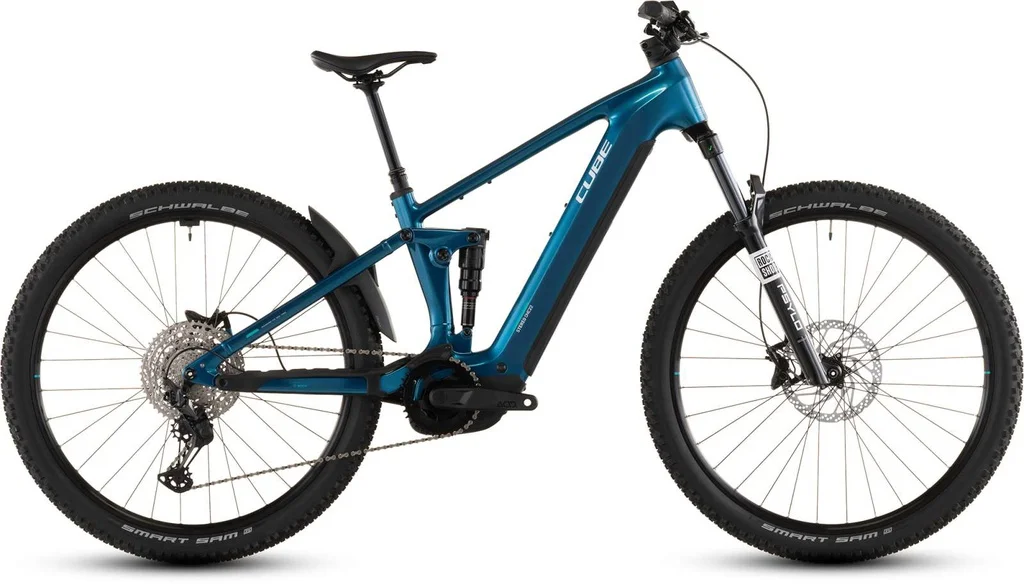

Cube Stereo Hybrid ONE22 RACE 800 electricblue´n´white
The Cube Stereo Hybrid ONE22 Race 800 is an explorer that masters any terrain and was built with you in mind. With a powerful Bosch CX motor (100 NM), an 800 Wh battery, and a Purion 200 controller, it can take you further and higher. RockShox Psylo Silver RC forks and Deluxe Select R shock ensure that the 2.6-inch Schwalbe tires grip the trail firmly, while powerful Shimano hydraulic disc brakes keep you in control at all times. The icing on the cake is the legendary, reliable Shimano XT 1x12 drivetrain, which puts the right gear for every situation literally at your fingertips. Where will it take you next?
The Stereo Hybrid ONE22 Pro electric mountain bike impresses with its ingenious solutions that ensure top performance on long trips in demanding terrain. It features a thoughtful four-bar linkage design, a 120 mm travel suspension fork, and mounting points for fenders, all complemented by comfortable geometry for a perfect ride. The powerful PowerTube battery effortlessly powers the Bosch CX motor, regardless of the terrain or length of the ride. In addition, the bike is equipped with a new seat clamp, chain guide, and UDH derailleur hanger—smart features that make life easier on every ride. With a choice of different frame and wheel sizes, you'll always find the perfect combination to suit you.
Highlights:
Advanced aluminum HPA (Hydroforming Advanced) frame, designed with ATG (Agile Trail Geometry) and ETC 4-Link system for optimal balance between stiffness and comfort
Motor Bosch Performance Line CX Gen.5 Smart System s 100 Nm
Bosch PowerTube 800 Wh battery for long range
Bosch Purion 200 with integrated display
RockShox Psylo Silver RC Air, Tapered, 15x110mm, Lockout, 120mm
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shimano BR-MT520, Hydr. Disc Brake (203/203)
Strong and lightweight ACID SLX 30 tubeless-ready rims
Manufacturer code: 101110
EAN: 4054571487759
Model year: 2026
Specifications
| Frame | Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp |
| Frame material | Aluminium |
| Wheel size | Size Split: 27.5: S // 29: M L XL |
| Speeds | 1 x 12 |
| Fork | RockShox Psylo Silver RC Air, Tapered, 15x110mm, Lockout, 120mm |
| Rear Shock | RockShox Deluxe Select R, 185x52,5mm, Rebound Adjust, Trunnion Mount |
| Travel | 120 mm / 120 mm |
| Brakes | Shimano BR-MT520, Hydr. Disc Brake (203/203) |
| Brake discs | 203/203 mm |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | CUBE Rise Trail Bar 35 |
| Grip | ACID Hybrid Perform |
| Saddle | ACID Venec EMTB Plus 145 |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Crankset | ACID MTB Hybrid Pro, 38T |
| Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Gear shifters | Shimano Deore SL-M6100-R, Rapidfire Plus |
| Chain guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Chain | KMC e12 |
| Front tyre | Schwalbe Smart Sam, Active, 2.6 |
| Rear tyre | Schwalbe Smart Sam, Active, 2.6 |
| Wheelset | ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Display | Bosch Purion 200 with Integrated Display |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 2A |
| Motor | Bosch Drive Unit Performance Line CX Gen.5 max. 100Nm (BDU38) |
| Bearing dimension | Top: 54mm Trunnion Mount, Bottom: 22.2x8mm |
| Maximum total weight allowed | 160 kg (tbody weight + bike + equipment) |
| Weight | Start pri 26,3 kg |
Video
From 00:24:12 to 00:25:15 – Stereo Hybrid ONE22
Technology
Fully integrated battery
The Fully Integrated Battery system hides the power of the Bosch battery inside the bike’s down tube. The battery is protected by a splash- and dust-proof cover and can be locked to prevent theft. This results in an elegantly designed frame that combines aesthetic appeal with practicality.
Advanced internal cable routing
Gear and brake cables run entirely through the frame—without any additional holes near the headset. Bikes with cable routing through the headset have a clean, elegant look with no unnecessary visual distractions.
Modular Battery System
The battery is the heart of the e-bike. The Modular Battery System makes it easy to use—you can charge the battery on the bike or remove it. The frame also has enough space for higher-capacity batteries, ensuring you always have plenty of range.
Semi-integrated seatpost clamp
The discreet Semi Integrated Seatpost Clamp blends seamlessly with the frame’s design, providing a clean look and reducing the chance of snagging the bike when carrying it.
Boost148
A wider hub means a stiffer and stronger wheel, resulting in better handling. The Boost148 standard allows for greater flange spacing, improving wheel performance without affecting shifting or drivetrain efficiency.
Agile Trail Geometry
Agile Trail geometry is designed for riders who enjoy pushing their limits. A lower frame height and more room for movement provide freedom on the trails and reward bolder line choices.
Universal Derailleur Hanger (UDH)
The Universal Derailleur Hanger provides a standardized solution compatible with all drivetrains. It reduces the risk of chain jams, improves shifting performance, and is widely available as a replacement part.
Adjustable headset angle
With the Adjustable Headset Angle, you can fine-tune the bike’s geometry—slacker for more stability on descents or steeper for increased agility on technical sections.
Aluminium Superlite
CUBE's Superlite aluminum is made from heat-treated 6061 aluminum, which has properties—high fatigue resistance, good stiffness, low weight, and excellent strength—that are important for a bicycle frame. We then process it into double-butted tubes to reduce weight without sacrificing strength. The result? Extremely lightweight, strong, and durable frames.
Fenders, trunk
Accessories such as a kickstand, mudguards, and a luggage rack can really increase the versatility of your CUBE bike. Cube has designed mounting points that integrate so seamlessly into each frame that they are barely noticeable – yet provide a simple, strong and secure attachment for all your future upgrades.
Flat Mount kickstand
The Flat Mount kickstand allows you to park your bike anywhere, providing a secure and stable stand on flat surfaces.
Size chart
Choosing the correct frame is key to a comfortable and safe ride. Based on your height and inseam length, our frame size calculator helps you find the ideal size for optimal comfort, control, and riding efficiency.
