You can also mount a kickstand on the frame, so you won’t have to look for a tree or wall to lean the bike against. Wherever your ride takes you, the Stereo Hybrid 120 RACE offers inspiring control, power, and confidence.
About the product

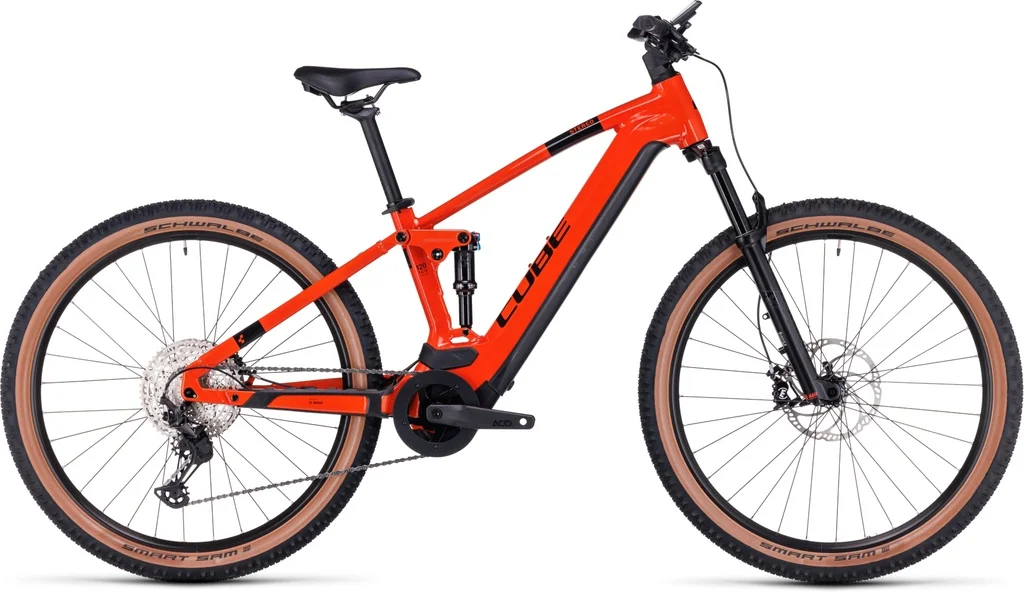

When your off-road ambitions are slowly going from exploration to adventure, it helps if you have a bike that will be able to handle it. Always popular Cube Stereo Hybrid 120 RACE is the right bike for this task. Fully transformed in the 2023 season, it is comfortable, stable and above all: it works!
In combination with the Bosch Performance CX Gen. 4 mid-drive motor and carefully selected components, this bike is the perfect choice for anyone looking to expand their trail-riding horizons. The completely new Cube modular system elegantly encloses the Bosch battery inside the down tube of the frame. In addition to its aesthetic appearance, the system also ensures battery safety and protection against dirt and water. The new generation Bosch Performance CX Gen. 4 motor is housed in an air-cooled casing, and the motor can be accessed with just a single screw. It provides just the right amount of assistance at any moment and works perfectly in sync with the Shimano XT 1x12 drivetrain. The bike’s geometry ensures stability and, in combination with the Fox suspension, also comfort while riding. When you reach the top of a climb faster than you thought possible and the descent begins, you can rely on the powerful Magura hydraulic disc brakes. Schwalbe Smart Sam tires provide excellent grip in all weather conditions, regardless of the surface.
Technology
Central motor
Bosch Performance Line CX eMTB 85 Nm.
A detachable integrated battery
Enables easy removal and installation of the battery into the frame without the use of tools.
Bosch Power Tube 750
The PowerTube 750 allows you to enjoy long and mountainous rides, reaching up to 180 km.
Bosch Kiox 300 Display
The Kiox 300 is the ideal display for the smart system and an intelligent, robust companion for your sporty rides.
Bosch 4a charger
The charger 100% charges Bosch Powertube 750 in about 6.8h. 50% about 3.4h.
Aluminum lite
Aluminum alloy 6061 is resistant to corrosion and stress, making it suitable for lightweight tubes with high rigidity.
Advanced Hydroforming
This method of production reduces the number of welds, reduces the mass of the frame and increases its durability.
Comfortable geometry
With a specially designed frame, you can also cycle longer distances.
Rear Shock
The suspension works well in all conditions and can adjust to the weight of the cyclist.
Air suspension
The suspension works well in all conditions and can adjust to the weight of the cyclist.
Hydraulic brakes
Hydraulic brakes for maximum braking power in all conditions.
Boost 148 hubs
The Boost 148 mm technology provides accurate wheel guidance on each terrain.
A size table
Properly selected bike size is crucial for your safety and comfort. The appropriate size is selected based onour body height.
Specifications
| Frame | Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
| Fork | Fox 34 Float Awl, 2-Position Sweep-Adjust Rail Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm |
| Rear Shock | Fox Float DPS EVOL, 185x55mm (27.5: 165x45mm), Open/Medium/Firm Mode, Trunnion Mount |
| Wheel size | 29 '' |
| Speeds | 12 gears |
| Front shifter | - |
| Rear shifter | Shimano Deore SL-M6100, Rapidfire-Plus |
| Front derailleur | - |
| Shimano XT RD-M8100-SGS, Shadowplus, 12-Speed | |
| Chainset | Acid e-Crank, 38t, 170 mm |
| Front brake | Magura Mt Thirty, Front 4-Piston/Rear 4-Piston, Hydr. DISC Brake (203/203) |
| Rear brake | Magura Mt Thirty, Front 4-Piston/Rear 4-Piston, Hydr. DISC Brake (203/203) |
| Front disc | 203 mm |
| Rear disc | 203 mm |
| Tyres | Schwalbe Smart Sam, Active, 2.60 |
| Rim | Cube ex30, 32 holes, disk, tubeless ready |
| Front hub | Shimano HB-MT400-B, 15 mm, Boost, Centerlock |
| Rear hub | Shimano FH-MT410-B, 12mm, Boost, Centerlock |
| Rear cassette | Shimano Deore CS-M6100, 10-51T |
| Handlerbar | Newmen Evolution SL 318.25, 760 mm |
| Stem | Cube Performance Stem E-MTB, 31,8 mm |
| Seat post | Cube Performance Post, 30,9 mm |
| Seat | Natural fit sequence |
| Pedal | CUBE PP MTB |
| Front light | - |
| Rear light | - |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85 Nm) Cruise (250 W) |
| Screen | Bosch kiox 300 |
| Battery | Bosch PowerTube 750 |
| Weight limit | 130 kg |
| Range | up to 180 km |
| Charger | Bosch 4 a |
| Weight | 25.6 kg |
