About Product
At the heart of this exceptional machine lies a powerful Bafang electric drive that will propel you forward with effortless grace. With every push of the pedals, you will experience a seamless blend of human and electric power, allowing you to conquer challenging climbs and cover long distances with ease.
The bike is powered by a reliable ECONO battery, developed and assembled in-house, available in three capacities: 520Wh, 700Wh, and 800Wh. All batteries are interchangeable between 2025 models, ensuring greater flexibility. Riding data is displayed on a compact color side display, where you can choose between five levels of assistance: ECO, TOUR, SPORT, SPORT+, and BOOST.
To enhance your riding experience, the ECONO Pantera is equipped with FOX air suspension, which provides unparalleled comfort and control. With its sophisticated damping system, it absorbs shocks and vibrations to maintain optimal traction and a smooth ride on uneven terrain. Tackle rugged trails and embark on an exciting ride, while letting the elegant and responsive suspension system work for you.
Front suspension: Fox Racing 36 A Float Performance
This fork is designed for aggressive all-mountain riding and offers 160 mm of travel, allowing you to confidently tackle the most demanding descents. It is equipped with a GRIP damper that allows for easy adjustment with a 3-position switch (Open, Medium, Firm), adapted to different terrains and riding styles. The FLOAT EVOL air spring provides exceptional sensitivity to small bumps and support in the middle of the stroke, improving comfort and control. 36 mm aluminum legs and a Boost 110 thru-axle ensure optimal stiffness and steering precision.
Rear suspension: FOX Float DPS Factory 3-POS EVOL
This rear shock absorber combines lightweight design with advanced technology for superior performance. The DPS (Dual Piston System) shock absorber offers three modes of operation—Open, Medium, and Firm—allowing for quick adaptation to different terrains and riding conditions. The one-piece EVOL air sleeve increases responsiveness and sensitivity, while the Genuine Kashima Coat coating on the upper tubes reduces friction and improves durability.
Safety is an area we pay special attention to at ECONO, and the ECONO Pantera takes it seriously. Its 4-piston Tektro brakes provide exceptional stopping power for confident and precise navigation on descents and challenging sections. With the ability to easily adjust your speed, you can push the limits of your riding ability while maintaining maximum control and safety.
The design of the ECONO Pantera exudes elegance combined with contemporary aesthetics. The frame is expertly crafted with attention to detail, offering both durability and high-performance lightness. Every aspect of this bike has been carefully designed to ensure an exceptional riding experience, from its precise geometry to its carefully selected components.
Unleash your adventurous spirit. The Bafang electric drive system, combined with the ECONO ELK battery, FOX air suspension, and Tektro 4-piston brakes, creates a harmonious symphony of power, comfort, and control. With this exceptional two-wheeled masterpiece, get ready to push your limits and reach new heights.
Technology
Mid-drive
Bafang M510 36V, 95 Nm
Removable integrated battery
Enables easy removal and installation of the battery in the frame without tools.
Econo 800 Wh
The ECONO ELK 800Wh (23Ah) battery allows you to enjoy long rides and mountain biking.
Bafang HDMI DP C245.C
A compact screen with all important information: current speed, trip length, total kilometers traveled and driving time.
Charger Econo 4A
The charger charges Econo 720 batteries to 100% in about 4.4 hours. 50% takes about 2.2 hours.
Aluminij Lite
Aluminum alloy 6061 is resistant to corrosion and stress and is suitable for light pipes with high stiffness.
Advanced Hydroforming
This production method reduces the number of welds, reduces the weight of the frame and increases its durability.
Comfortable Geometry
With a specially designed frame, you can comfortably cycle longer distances.
Rear shock
The suspension works well in all conditions and allows for easy adjustment to the rider's weight.
Air suspension
The suspension works well in all conditions and allows for easy adjustment to the rider's weight.
Hydraulic brakes
Hydraulic brakes for maximum stopping power in all conditions.
Dropper seat post
The seat support allows you to quickly adjust the height of the seat without having to get off it.
Boost 148 Hub
The Boost 148 mm technology ensures precise control of the bike on any terrain.
Specifications
| Frame | ALU 6061ECONO FULLY |
| Fork | Fox Racing 36 A Float Performance E-Bike+, 29" Grip 160 Tapered Boost |
| Rear Shock | FOX Float DPS Factory 3-POS Evol 190/51mm |
| Whele size | 29'' |
| Speed | 11 speed |
| Rear Shifter | Cues SL-U6000, 11s |
| rear derailleur | Shimano Deore XT RD-M8130 SGS |
| Crank | Bafang 165mm crank, 36T front chainring |
| Front brake | TRP HD-M807 SLATE EVO, 4 piston |
| Rear brake | TRP HD-M807 SLATE EVO, 4 piston |
| Front disk | TRP 203 mm size, 2.3 mm thickness |
| Rear disk | TRP 203 mm size, 2.3 mm thickness |
| Tyres | Schwalbe 29x2.40 / 62-622 Magic Mary Eco, Super Trail, Addix, Ultra soft |
| Rim | Discovery 29'', Boost 15x110 |
| Front hub | Novatec Boost 110x15 |
| Rear hub | -Novatec Boost 148x12 |
| cassette | 11s, 11-51T Shimano CS-M5100 |
| Handlebar | Alu. black780mm, 31,8mm MTB Rise: 20 mm; Backsweep: 38°; Upsweep: 36° |
| Stem | Alu. 31,8mm, E:60mm |
| Seat post | X-Fusion dropper Manic 30.9/150mm |
| Seat | MTB Style |
| Pedals | plastic |
| Front light | - |
| Rear light | - |
| Motor | Bafang M510 36V, 95 Nm |
| Display | Bafang HDMI DP C245.C |
| Battery | ECONO ELK battery 800Wh, 36V |
| Carry weight | Up to 140 kg with cyclist |
| Range | Up to 160 km |
| Charger | ECONO charger 3pin /4A |
| Weight | 21 kg without battery |
Size chart
Choosing the right bike size is crucial for your safety and comfort. We choose the appropriate size based on our body height.
Geometry
| Moderate | M | L | XL |
| Seat tube (A) | 450 | 470 | 490 |
| Top tube horizontal (B) | 458 | 473 | 488 |
| Seat angel (C) | 70.2°/75.5° | 70.2°/75.5° | 70.2°/75.5° |
| Head tube angel (D) | 65° | 65° | 65° |
| Chainstay lenght (E) | 470 | 470 | 470 |
| Headtube (F) | 120 | 120 | 120 |
| Wheelbase (G) | 1248.4 | 1263.4 | 1278.4 |
| Stack (H) | - | - | - |
| Reach (I) | 458 | 473 | 488 |
Package included

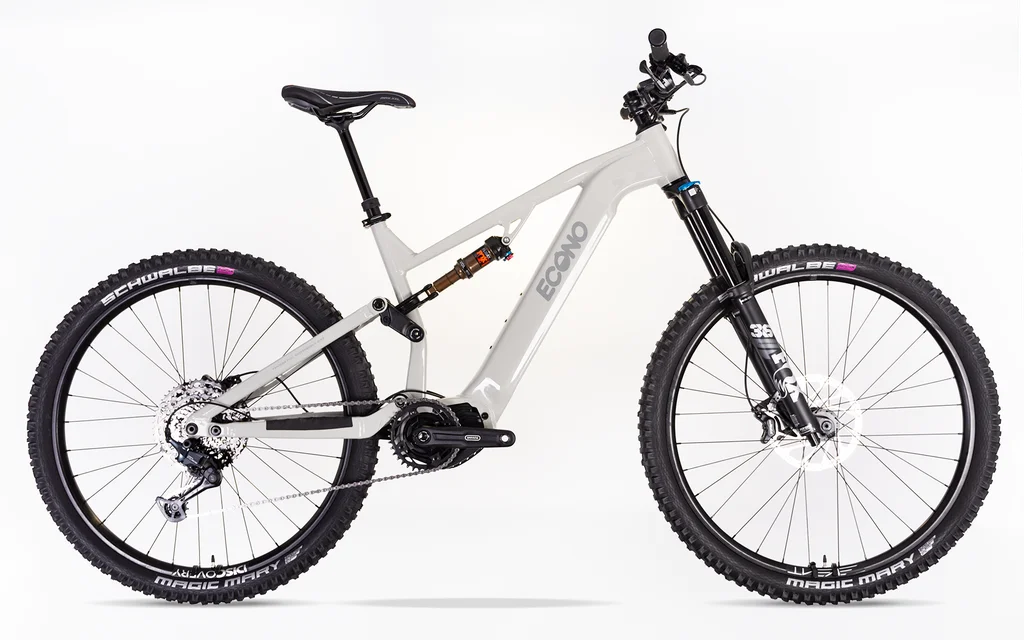

1x Electric bike ECONO Pantera C9 160 Grey 2025 EUROBIKE Size: M Battery: 800Wh
1x Charger 4A 3pin
