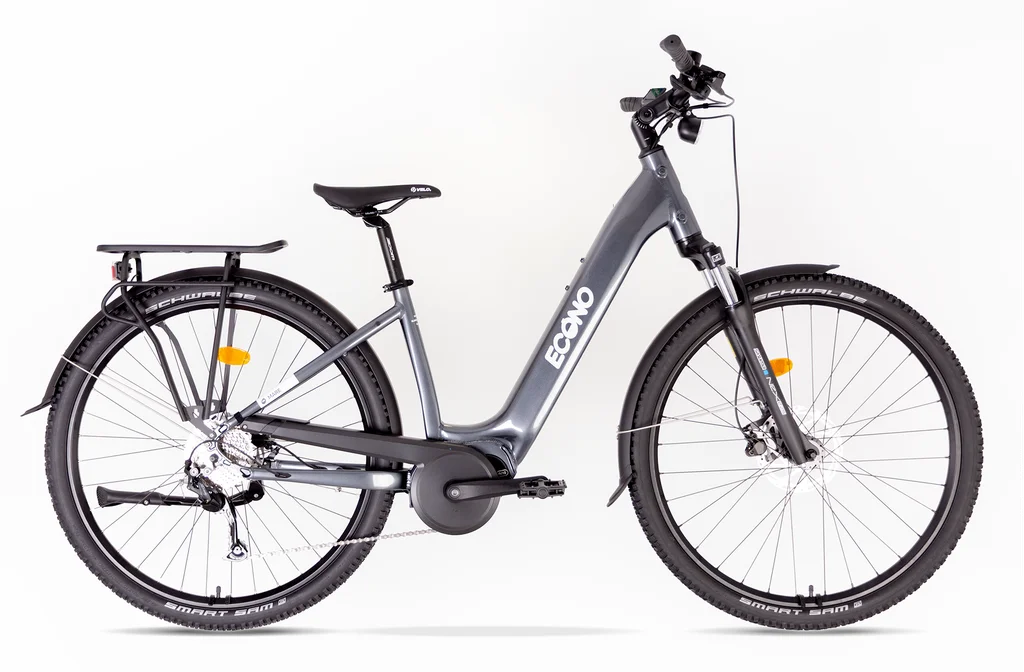

About the product
Cycling with Econa Mare not only offers you active leisure, but also improves health and increases energy. Driving through the city streets or picturesque trails allows relaxation, reducing stress, which increases the feeling of happiness. Regular physical activity is key to mental health, and Econo Mare allows you to do this in an elegant and fun way.
ECONO Mare združuje eleganco in zmogljivost, saj se ponaša z električnim pogonom Bafang M210, s 70Nm navora, ki kolesarsko izkušnjo povzdigne na povsem novo raven. To kolo je ustvarjeno za vse, ki cenijo tako stil kot funkcionalnost, ne glede na to, ali se vozite po mestnih ulicah ali raziskujete primestne poti.
Econo Mare is equipped with an ECONO high -performance battery available in two versions: 520Wh, 700Wh or 800Wh. With it, you will be able to travel long distances without worry and enjoy every kilometer as it provides carefree and long -lasting adventures.
Kljub temu, da e-kolo Mare spada v skupino mestnih koles, mu oprema EEC4 omogoča, da se boste lahko brez težav podali tudi na zahtevnejše terene izven mestnih središč. Zunanji menjalnik nudi večji razpon, kar zagotavlja lažje premagovanje tudi zahtevnejših izzivov, pogon z verigo pa vzdržljivost in trajnost kolesa. Hidravlične zavore Tektro zagotavljajo izjemno odzivno in zanesljivo zaviranje medtem, ko 9-stopenjski Shimano prestavni sistem omogoča gladko in natančno prilagajanje terenu.
Instead of classic city tires, the SUV is equipped with rugged Schwalbe Smart Sam 29x2.1 tires, which provide better grip on gravel, trails, or uneven surfaces. The sporty flat handlebar ensures a more direct riding feel and better control, especially at higher speeds.
With this model, you won’t just be riding around the city – you’ll also be exploring its surrounding trails. The Apes SUV remains elegant, yet brings the robustness and confidence you’d expect from a versatile electric bike.
From elegantly designed frame to ergonomically designed components, Econo Mare regulates the style and functionality. Let your paths through city streets or vibrant landscapes take place in complete harmony with nature.
Specifications
| Frame | Alu 6061 Mare EE-normal Antracit YS-9417 |

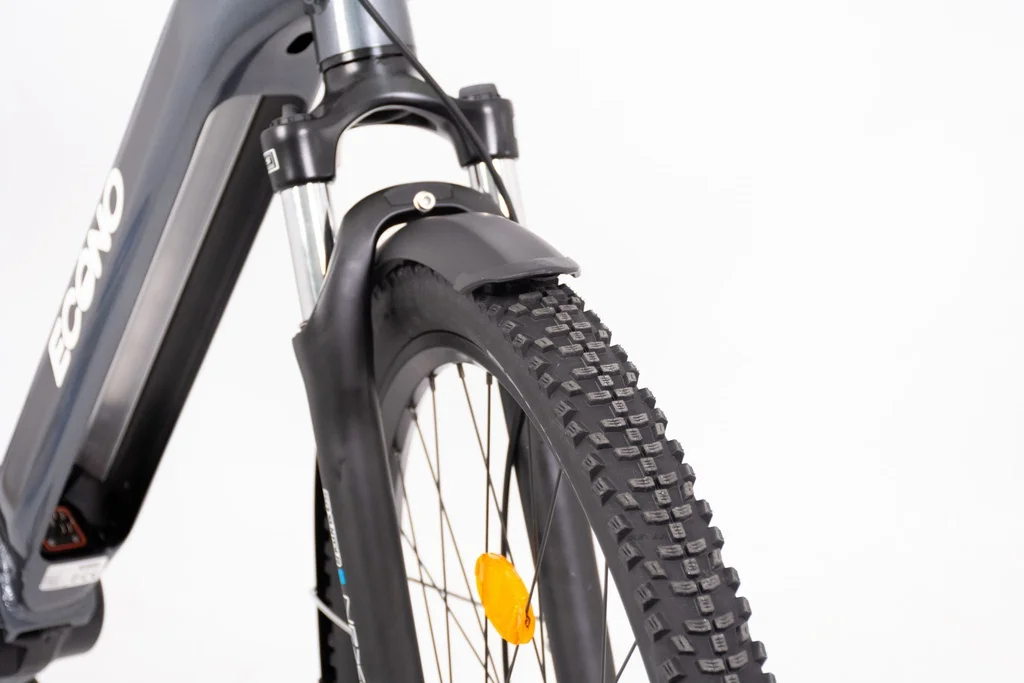

| Fork | SR SUNTOUR 28 '' NEX-E25 75mm |
| Wheel size | 29'' |
| Speeds | 9 gears |
| Gear shifters | 9s, Altus SL-M2010 |

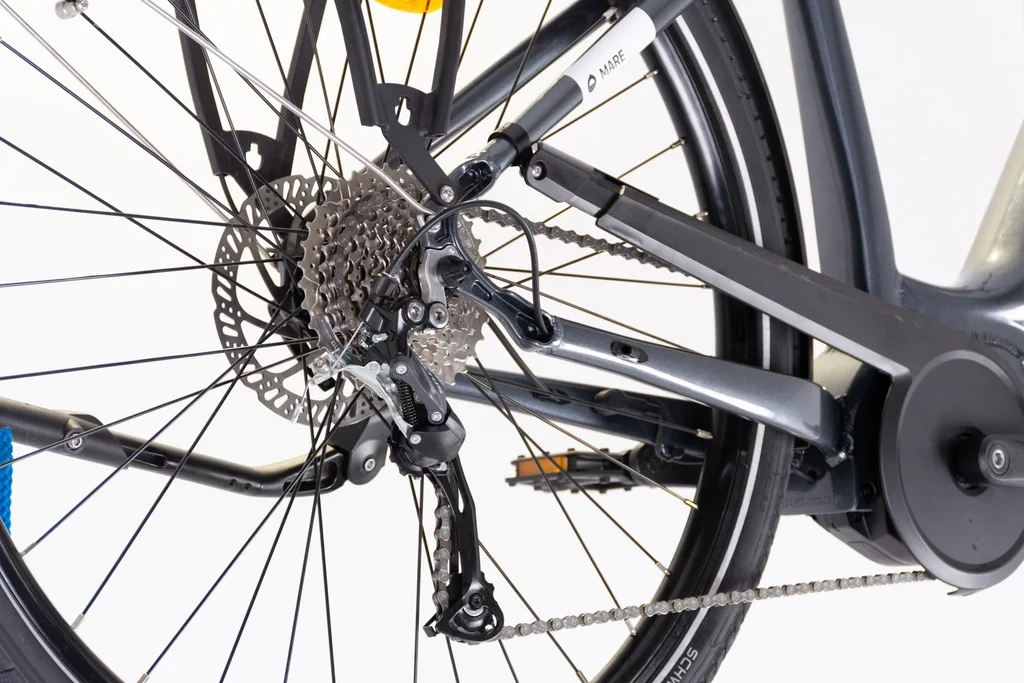

| Rear derailleur | 9s, Shimano Altus RD-M2000, SGS |
| Crankset | Verižnik 38T, BAFANG CW B1.A1, 3/32''; Gonilke: 170mm |
| Front brakes | Tektro HD-M280 Hidravljične disk zavore |
| Rear brakes | Tektro HD-M280 Hidravljične disk zavore |

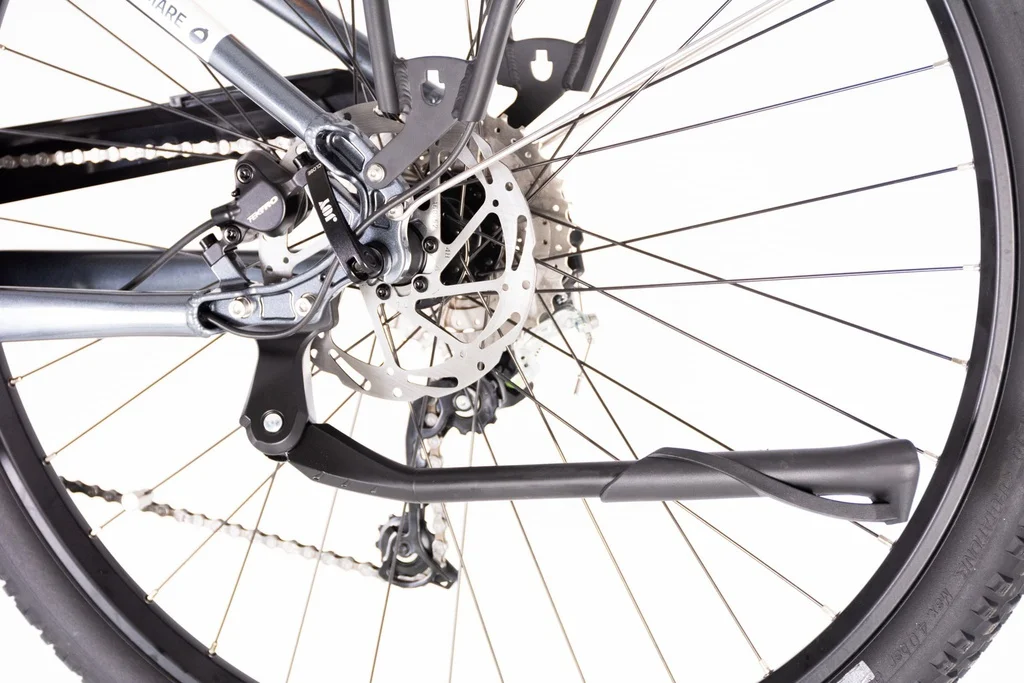

| Brake discs | Front: 180 mm, rear: 160mm |
| Tyre | Schwalbe smart sam 29x2.10 |
| Wheelset | 700c/28 "32h Aluminium Double Walled Rome, 622x25mm 14g |
| Front hub | Joytech M9/Old: 100,13g*36h |
| Rear hub | Joytech M10/Old: 135,13g*36h |
| Cassette | LAST SHIMANO ACERA CS-HG201 11-36T 9 gears |

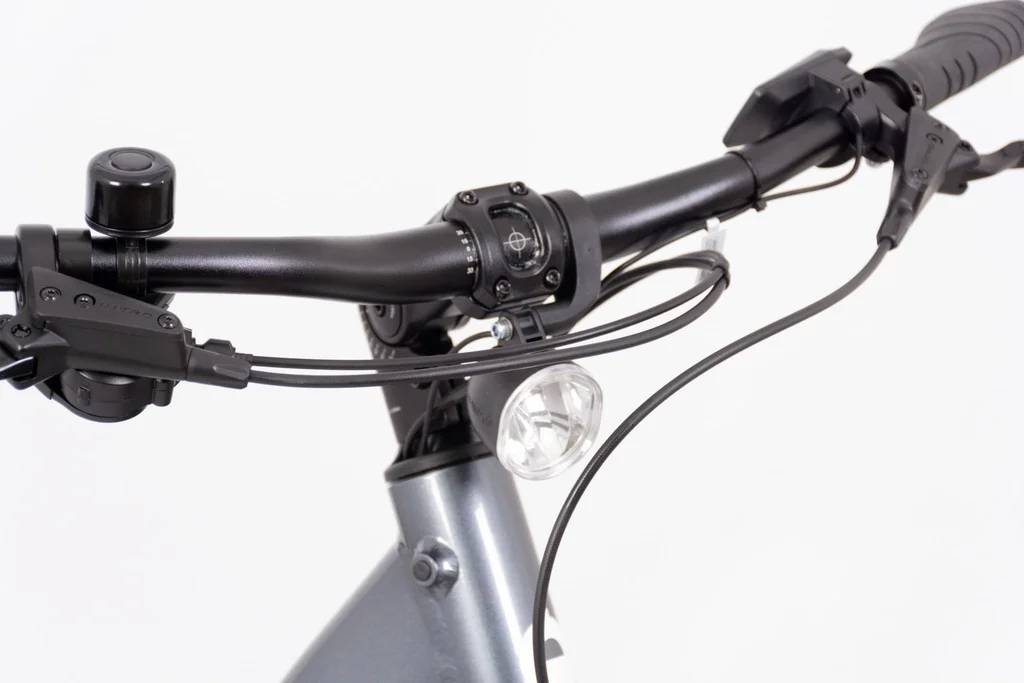

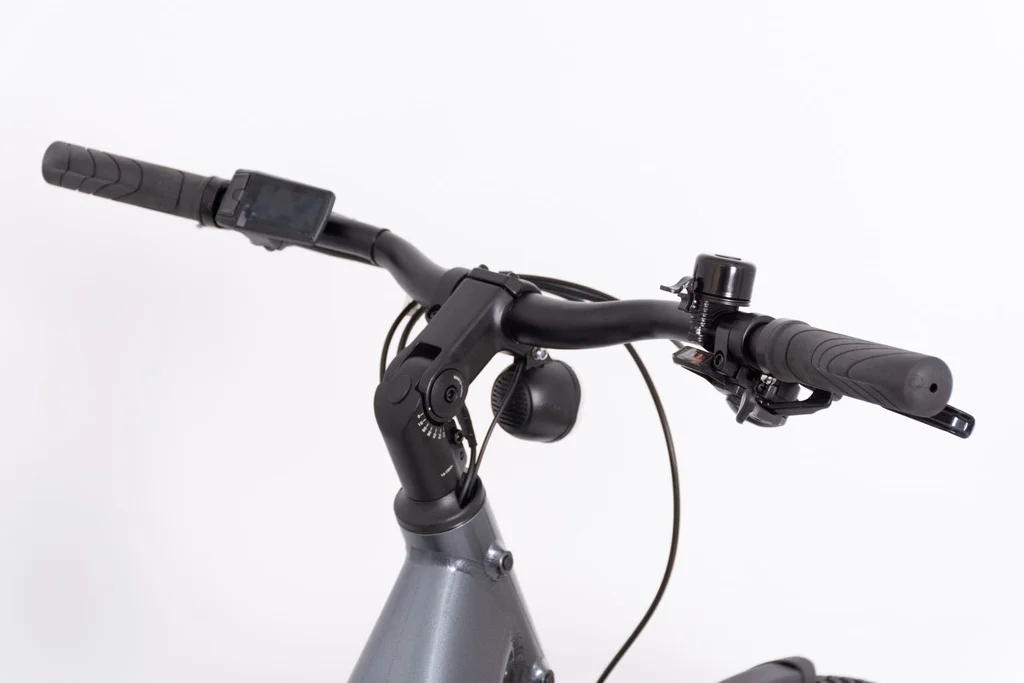

| Handlebar | Alu. Black 700mm, 31,8mm SUV style |
| Stem | 0-90 adjustable, 31.8mm 90mm |
| Seatpost | ZOOM, Objemka 31.8 mm |

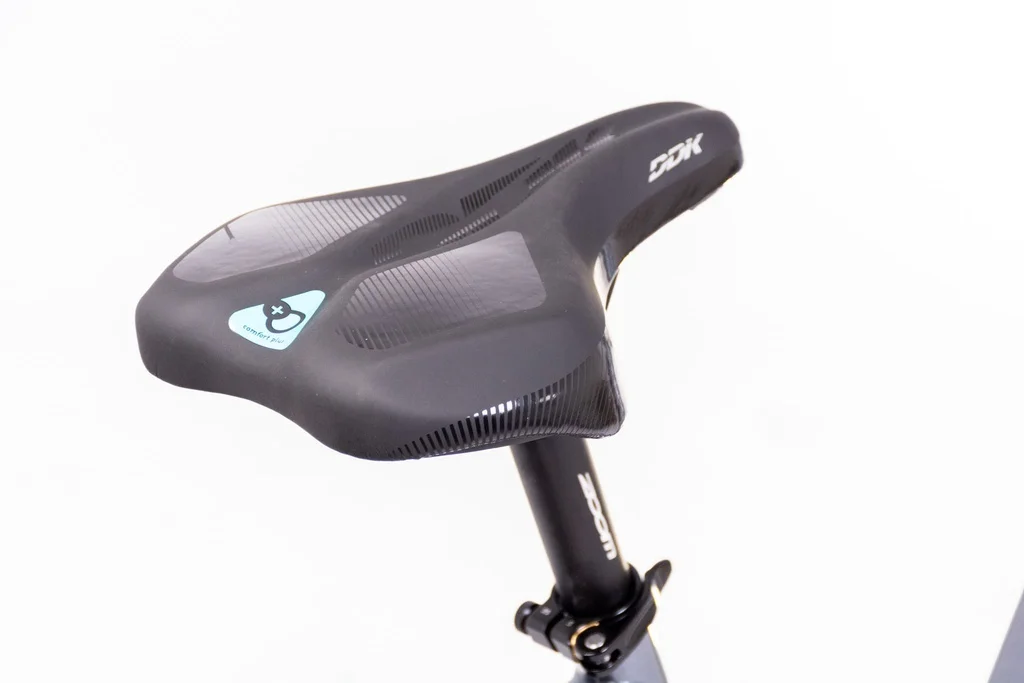

| Saddle | DDK |
| Pedals | Plastic Feiming FP-803 |
| Front light | Yes |
| Rear light | Yes |
| Motor | Central Bafang M210, 250W, 36V, 70nm |
| Display | Bafang DP C080 |
| Battery | Integrated ECOO ELK 520Wh (15AH) / 700Wh (20Ah) / 800Wh (23Ah) |
| Maximum total weight allowed | 135 Kg (body weight + bike + equipment) |
| Range | Up to 160 km (with 800Wh battery and on optimal conditions) |
| Charger | ECONO 36V 2A 3pin for battery 520Wh and ECONO 36V 4A 3pin for 700Wh and 800Wh battery |
| Weight | 26.9 kg |

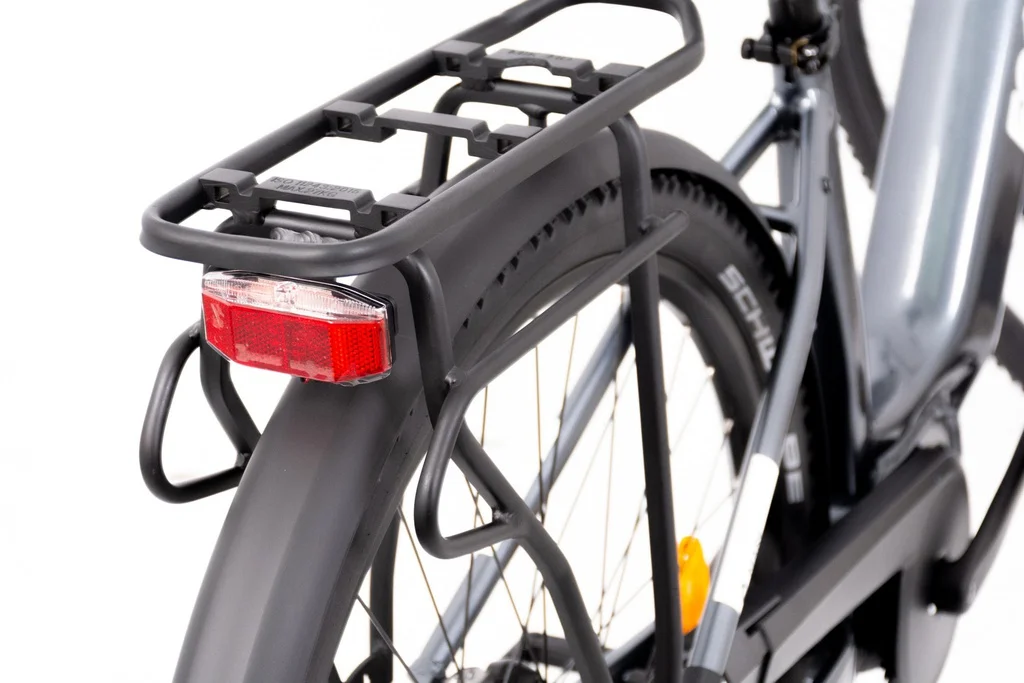

| Accessories | Kickstand, rear carrier |
| Guarantee | 2 years on the battery and motor, 3 years on the frame, and 1 year on components that are not consumables (brake pads, rotor, tires, inner tube, chain, chainring) |
Video
Technology

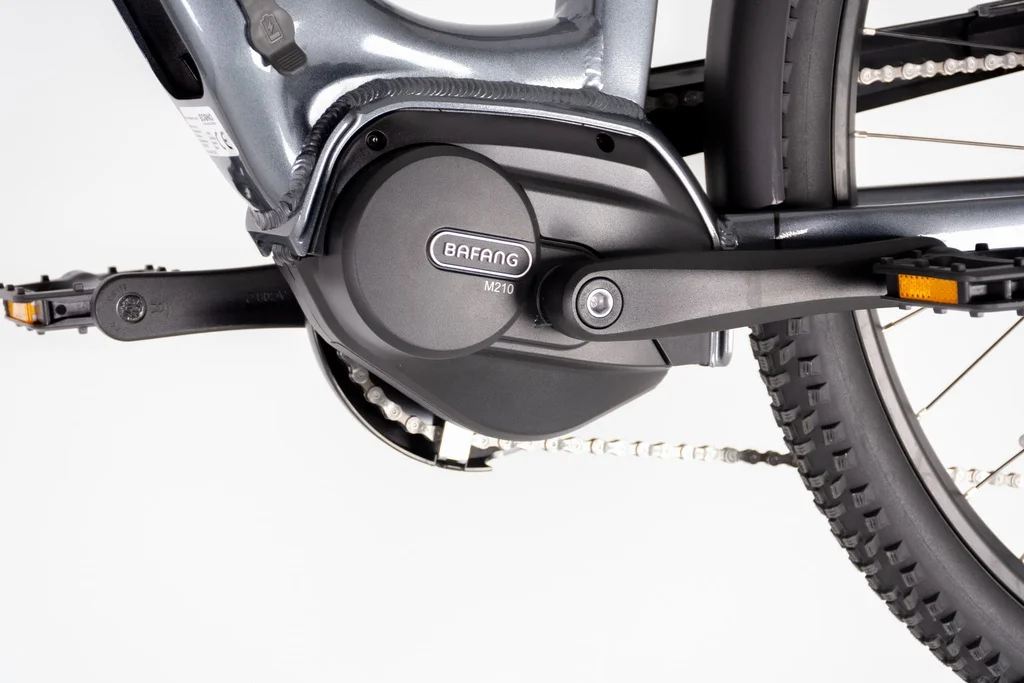

Centralni motor
Bafang M210, 36V, 250W, 70nm
A detachable integrated battery
Omogočena enostavna odstranitev in namestitev baterije v okvir brez orodja.
ECONO Battery 540 Wh or 720 WH
An effective and reliable energy source. ECONO 520Wh integrated battery (15AH), 700Wh (20Ah) or 800Wh (23AH).
DP C080
A large high -contrasting TFT LCD screen ensures that all important data is large and easily readable in direct sunlight.
ECONO 2A charger
Ob nakupu baterije 520 prejmete 2A polnilec, pri baterijah 700 in 800 pa zmogljivejši 4A polnilec.
Aluminum lite
Aluminijeva zlitina 6061 je odporen na korozijo in obremenitve in je primeren za lahke cevi z visoko togostjo.
Advanced Hydroforming
This method of production reduces the number of welds, reduces the mass of the frame and increases its durability.
Comfortable geometry
With a specially designed frame, you can also cycle longer distances.
Hidravlične zavore
Hidravljične zavore za maksimalno zavorno moč v vseh razmerah.
Quick Release OS
QR OS for faster removal and attachment of wheels.
Illumination
Be visible and increase your safety and time on the wheel with the front and rear LED lights.
A size table
Properly selected bike size is crucial for your safety and comfort. The appropriate size is selected based on our body height.
