About the product
Cycling with Econa Mare not only offers you active leisure, but also improves health and increases energy. Driving through the city streets or picturesque trails allows relaxation, reducing stress, which increases the feeling of happiness. Regular physical activity is key to mental health, and Econo Mare allows you to do this in an elegant and fun way.

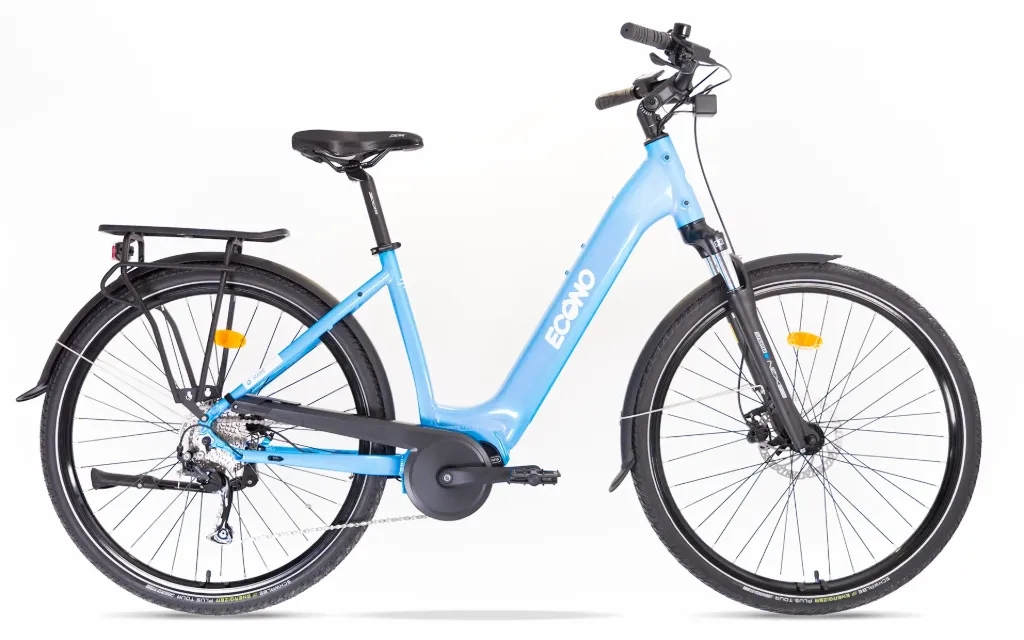

The ECONO Mare combines elegance and performance, featuring a Bafang M210 electric drive with 70Nm of torque that takes the cycling experience to a whole new level. This bike is designed for those who value both style and functionality, whether riding through city streets or exploring suburban paths.
Econo Mare is equipped with an ECONO high -performance battery available in two versions: 520Wh, 700Wh or 800Wh. With it, you will be able to travel long distances without worry and enjoy every kilometer as it provides carefree and long -lasting adventures.
Although the Mare e-bike belongs to the city bike category, its EEC4 equipment allows you to confidently tackle more challenging terrains outside urban areas. The external drivetrain provides a wider gear range, making it easier to overcome tougher challenges, while the chain drive ensures durability and longevity. Tektro hydraulic brakes deliver highly responsive and reliable stopping power, and the 9-speed Shimano gearing system allows smooth and precise adaptation to the terrain.
From elegantly designed frame to ergonomically designed components, Econo Mare regulates the style and functionality. Let your paths through city streets or vibrant landscapes take place in complete harmony with nature.
Specifications
| Frame | Alu 6061 Mare EE-normal Sky blue YS-9417 |
| Fork | SR-SUNTOUR 28 '' E25 HLO DS, 50mm |
| Wheel size | 28 '' |
| Speeds | 9 gears |
| Gear shifters | Gearshift Last 9s, Altus SL-M2010 |
| Rear derailleur | Last gearbox 9s, Shimano Altus RD-M370 |
| Crankset | Verižnik 38T, BAFANG CW B1.A1, 3/32''; Gonilke: 170mm |
| Front brake | Tektro HD-M280 Hidravljične disk zavore |
| Rear brake | Tektro HD-M280 Hidravljične disk zavore |
| Rotors | Front: 180 mm, rear: 160mm |
| Rear rotor | 160 mm disk |
| Tyre | Schwalbe 28x2.00 / 50-622 Energizer Plus Tour, Perf, GreenGuard, TwinSkin, Addix |
| Wheelset | 700c/28 "32h Aluminium Double Walled Rome, 622x25mm 14g |
| Front hub | Joytech M9/Old: 100,13g*36h |
| Rear hub | Joytech M10/Old: 135,13g*36h |
| Cassette | LAST SHIMANO ACERA CS-HG20111-36T 9 |
| Handlebar | 680 mm, 31.8, backsweep in 38°, 36° upsweep |
| Stem | 0-90 AdJustable, 31.8mm Ext: 90mm |
| Seatpost | Zoom, clamp 34.9 mm |
| Saddle | DDK |
| Pedals | Plastic Feiming FP-803 |
| Front light | Yes |
| Rear light | Yes |
| Motor | Central Bafang M210, 250W, 36V, 70nm |
| Display | Bafang DP C080 |
| Battery | Integrated ECOO ELK 520Wh (15AH) / 700Wh (20Ah) / 800Wh (23Ah) |
| Maximum total weight allowed | 135 kg (the largest weight of a rider and bicycle) |
| Range | Up to 160 km |
| Charger | ECONO 36V 2A 3pin for battery 520Wh and ECONO 36V 4A 3pin for 700Wh and 800Wh battery |
| Weight | 26.9 kg |
| Accessories | Kickstad, fenders, rear carrier |
| Guarantee | 2 years on the battery and motor, 3 years on the frame, and 1 year on components that are not consumables (brake pads, disc, tires, inner tube, chain, sprocket). |
Video
Pictures
Technology
Centralni motor
Bafang M210, 36V, 250W, 70nm
A detachable integrated battery
Allows easy battery removal and installation in the frame without tools.
ECONO Battery 540 Wh or 720 WH
An effective and reliable energy source. ECONO 520Wh integrated battery (15AH), 700Wh (20Ah) or 800Wh (23AH).
DP C080
A large high -contrasting LCD screen ensures that all important data is large and easily readable in direct sunlight.
ECONO 2A charger
The charger 100% recharges the batteries 720 in about 8.8h. 50% about 4.2h ..
Aluminum lite
6061 aluminum alloy is resistant to corrosion and stress, making it suitable for lightweight tubes with high stiffness.
Advanced Hydroforming
This method of production reduces the number of welds, reduces the mass of the frame and increases its durability.
Comfortable geometry
With a specially designed frame, you can also cycle longer distances.
Hidravlične zavore
Hidravljične zavore za maksimalno zavorno moč v vseh razmerah.
Quick Release OS
QR OS for faster removal and attachment of wheels.
Ligths
Be visible and increase your safety and time on the wheel with the front and rear LED lights.
A size table
Properly selected bike size is crucial for your safety and comfort. The appropriate size is selected based onour body height.
