Size Table
Choosing the right bike size is crucial for your safety and comfort. We choose the appropriate size based on our body height.
| Body height (cm) | Frame Size |
| 155-165 | S |
| 165-180 | M |
Specifications
| Frame | Alu 6061 |
| Fork | SR Santur XCT 30, lock out |
| Rear shock | - |
| Wheel size | 29'' |
| Number of gears | 10 speed |
| Front gear lever | - |
| Rear gear lever | Shimano Deore 10s |
| Front derailleur | - |

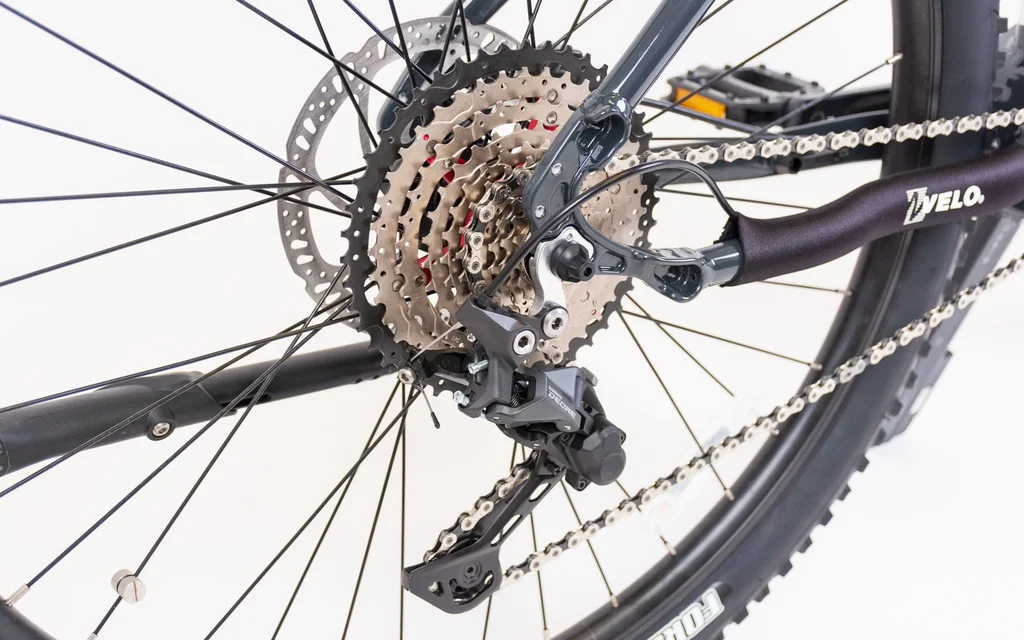

| Rear derailleur | Shimano Deore 10s |
| Crank | - |
| Front brake | Radius BH M860 hydraulic disk brake |
| Rear brake | Radius BH M860 hydraulic disk brake |
| Front brake disc | 180 mm |
| Rear brake disc | 180 mm |
| Tyres | Massix Forekaster 29x2.35 |
| Rims | Double-walled aluminum 24 mm |
| Front hub | - |
| Rear hub | - |
| Rear sprockets | L-twoo A2 11-46 10s |
| Stem | M-WAVE 700mm 31,8mm |
| Stem | M-Wave 60 mm |
| Seat post | Zoom 30,9 mm |
| Seat | Selle Monte Grapa |
| Pedal | - |
| Motor | Motive Volans Plus 250W, 75Nm |
| Battery | ECONO InTube 36V 730Wh |
| Weight | 21,5 kg (without battery) |
| Warranty | 2 years on the engine and battery, 3 years on the frame and 1 year on non-consumable components (No warranty on: tires, inner tubes, chainring, chain, brake linings). |
Package included

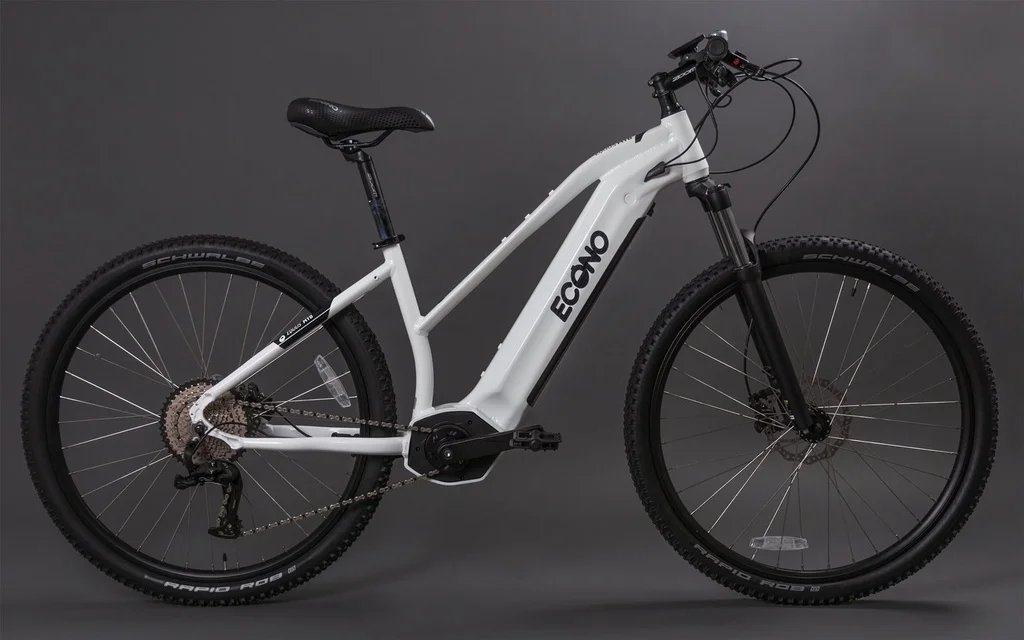

1x E-Bike ECONO Equus MTB C5 Trapez White M 730wh TEST BIKE
1x Econo 2A 3pin charger
1x Instructions with warranty card
