About the product
S kolesom Cube Stereo Hybrid ONE44 HPC RACE 800 imate popoln nadzor nad dogajanjem. Z zmogljivim pogonskim sistemom Bosch CX, krmilnikom Purion 400 in 800-Wh baterijo boste uživali v zanesljivi pomoči pri pedaliranju, tudi na daljših raziskovalnih poteh. Vilice in zadnji amortizer z zračnim vzmetenjem Fox v kombinaciji s preverjeno kinematiko podjetja CUBE zagotavljata udobno vožnjo in odličen stik s podlago. Oprijemljive pnevmatike Schwalbe širine 2,6 ter močne hidravlične kolutne zavore Shimano XT omogočajo natančen nadzor hitrosti. Z enostavnimi menjalniki Shimano Deore XT 1x12 pa boste vedno pripravljeni na nove izzive. Čas je za raziskovanje!
Technology
Fully integrated battery

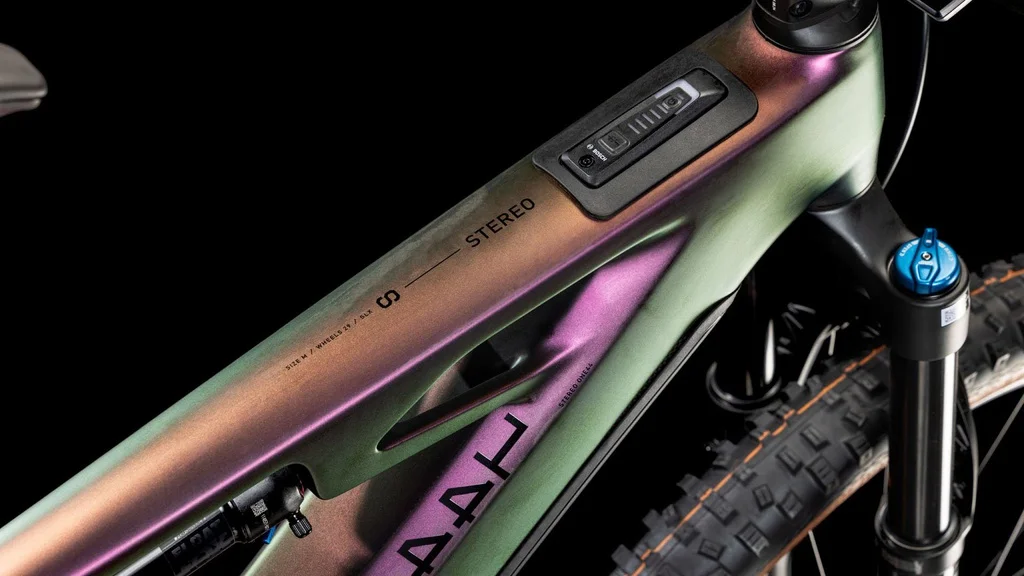

The Fully Integrated Battery system hides the Bosch battery inside the bottom pipe of the frame. Safe locked and protected from dust and water allows for a modern design of electric bikes, which are aesthetic and extremely functional at the same time.
Advanced internal cable wiring
Sistem Advanced Internal Cable Routing spelje zavore in menjalne kable skozi krmilni ležaj brez potrebnih odprtin v okvirju. Rezultat je čist, urejen videz brez izpostavljenih kablov.
Modular battery system
With the Battery System modular, the battery can be easily removed and charged directly on or off the bike. The frame allows high -capacity batteries to be installed - for more range and carefree ride.
Sizesplit - Custom Sizes
SizeSplit zagotavlja idealno prileganje vsaki višini kolesarja. Manjši okvirji z 27,5-palčnimi kolesi so prilagojeni nižjim osebam, večji pa s 29-palčnimi kolesi višjim uporabnikom – vedno udobno in stabilno.
Boost 148 - stronger rear hubs
A wider hub means a more rigid wheel, which improves handling. The Boost 148 allows for a greater distance between the flanges of the hub, which improves stiffness and durability of the rings without affecting the operation of the gears.
Agile geometry for comfort
Agile Ride Geometry združuje udobno vožnjo, naraven položaj sedenja in samozavestno vodljivost. Idealna za vsakodnevno uporabo in daljše izlete – užitek na vsakem kilometru.
Universal rear transmission carrier
Universal Derailleur Hanger means that the broken gearbox does not spoil your day. Compatible with all drive systems, with the possibility of rotation to prevent chain pinching - simply replaceable anywhere.
Adjustable as a steering bearing
When you deal with challenging trails and count every second, the geometry of the wheel is crucial. Adjustable angle of the steering bearing allows you to adjust the bike handling - more laid than for greater stability in descent or steeper for better agility on technical sections. Complete setting for a custom bike bike.
HPC high -performance carbon frame
Tehnologija HPC (High Performance Carbon) omogoča izdelavo lažjih, močnejših in togih okvirjev, ki zagotavljajo optimalno razmerje med težo, trdnostjo in vzdržljivostjo. Z natančnim načrtovanjem slojev karbonskih vlaken je mogoče prilagoditi zmogljivosti okvirja glede na obremenitve na posameznih točkah. Idealno za gorska in e-kolesa višjega razreda.
Advanced Twin Mold
Napreden postopek izdelave karbonskih okvirjev uporablja dve natančno izdelani formi. Prva skrbi za natančno razporeditev karbonskih slojev, druga pa med procesom utrjevanja ohranja vlakna na točno določenem mestu. Rezultat je lahek, togo in natančno okrepljen okvir s prilagojeno gostoto vlaken na najbolj obremenjenih mestih.
Holder for Flat Mount Stand
Z nosilcem za stojalo Flat Mount lahko svoje kolo varno parkirate kjerkoli, brez potrebe po iskanju opore. Nosilec je diskretno integriran in omogoča hitro pritrditev stojala – idealno za mestna in treking kolesa.
X-connect
The X-Connect system allows you to quickly and easily connect the compatible acid lamp. The connection is integrated into the steering bearing, and the cables are hidden inside the frame. Installation is extremely easy - just connect the lamp and you are ready to drive. Safe, clean and efficient.
Specifikacije
| Frame | C: 62® Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 ReaR Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH ™, Full Integrated Battery, Advanced Internal Cable Routing Routing | |
| Frame material | Carbon | |
| Wheel size | Size Split: 27.5: S // 29: M L XL | |
| Speeds | 1x12 | |
| Color | Molotov´n´black | |
| Fork | Fox 36 Float Rhythm, 2-Position Sweep-Adjust Grip Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm | |
| Zadnji amortizer | Fox Float Performance, 230x60mm (27.5: 210x55mm), Open/Firm Mode | |
| Front fork input | 150 mm / 140 mm | |
| Zavore | Shimano XT BR-M8120, Hydr. DISC Brake | |
| Zavorni rotorji | 203/203 mm | |
| The steering bearing | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface | |
| The handlebar carrier | CUBE Performance Stem E-MTB 35, FPI-Link | |
| Helm | Cube rise trail bar 35 | |
| Handles | Acid Disrupt | |
| Seat | ACID Wreath EMTB Trail 140 | |
| Sedežna opora | CUBE potopna sedežna opora, Handlebar Lever, Internal Cable Routing, 31.6mm | |
| Driver | ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T | |
| Rear transmission | Shimano XT RD-M8100-SGS, Shadowplus, 12-Speed | |
| Gear shifters | Shimano XT SL-M8100-IR, Direct Attach | |
| Chain protection | Reverse Flip-Guide e-Chain Guide, Direct Mount, I-Plate | |
| Rear | Shimano Deore CS-M6100, 10-51T | |
| Chain | KMC E12 | |
| Coat | Prednja guma: Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6, zadnja guma: Schwalbe Hans Dampf, Addix Soft, Super Trail, Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6Easy, 2.6 | |
| Bikes | Newmen Performance 30, 28/32 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready | |
| Screen | Bosch System Control Incl. Mini Remote, Bosch Purion 400 | |
| Torch | Bosch PowerTube 800 | |
| Charger | Bosch 4a | |
| Motor | Bosch Drive Unit Performance Line CX 85Nm Gen.5, (BDU38), Smart System | |
| The dimension of bearings | Front: 30x8mm, REAR: DU-BUSHING 12.7mm | |
| Maximal weight | 160 kg (cyclist weight + bicycle + equipment) | |
| Weight | It starts at 24.4 kg |
A size table
Properly selected bike size is crucial for your safety and comfort. The appropriate size is selected based onour body height.
