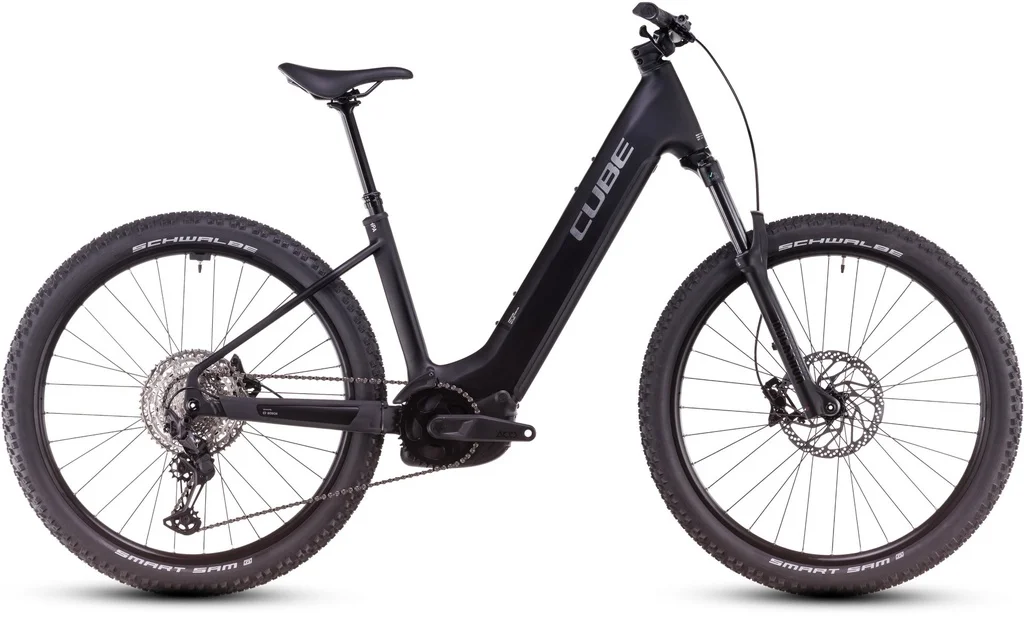

About the product
The Reaction Hybrid Race 800 is built for explorers and adventurers at heart, with a high-capacity 800 Wh battery that gives you the range you need to get out on the trail. And, of course, back. The quiet and smooth Bosch CX drive and robust, easy-to-use components are all you need for extended play on or off the road.
Technology
Fully integrated battery
The Fully Integrated Battery system hides the Bosch battery inside the bottom pipe of the frame. Safe locked and protected from dust and water allows for a modern design of electric bikes, which are aesthetic and extremely functional at the same time.
Advanced internal cable wiring
Sistem Advanced Internal Cable Routing spelje zavore in menjalne kable skozi krmilni ležaj brez potrebnih odprtin v okvirju. Rezultat je čist, urejen videz brez izpostavljenih kablov.
Modular battery system
With the Battery System modular, the battery can be easily removed and charged directly on or off the bike. The frame allows high -capacity batteries to be installed - for more range and carefree ride.
Sizesplit - Custom Sizes
SizeSplit zagotavlja idealno prileganje vsaki višini kolesarja. Manjši okvirji z 27,5-palčnimi kolesi so prilagojeni nižjim osebam, večji pa s 29-palčnimi kolesi višjim uporabnikom – vedno udobno in stabilno.
Boost 148 - stronger rear hubs
A wider hub means a more rigid wheel, which improves handling. The Boost 148 allows for a greater distance between the flanges of the hub, which improves stiffness and durability of the rings without affecting the operation of the gears.
Agile geometry for comfort
Agile Ride Geometry združuje udobno vožnjo, naraven položaj sedenja in samozavestno vodljivost. Idealna za vsakodnevno uporabo in daljše izlete – užitek na vsakem kilometru.
Universal rear transmission carrier
Universal Derailleur Hanger means that the broken gearbox does not spoil your day. Compatible with all drive systems, with the possibility of rotation to prevent chain pinching - simply replaceable anywhere.
Superlite aluminum
Aluminum 6061 superlite, heat -treated and twice thin (double butted), combines low weight, high rigidity and exceptional durability. The result: a strong, lightweight and durable frame.
Organic frames
Z uporabo tehnologije Smooth Welding se zvari elegantno zlijejo z okvirjem, brez vidnih spojev – za čiste linije in vrhunski videz.
Directly attached chain shield
Direct Mount chain protection keeps your clothing clean and without oil. Compact and discreet protection that prevents the moving parts of the chain.
Preparation for accessories: paws, mudguards and carrier
Cube frames include unnoticed integrated mounting points for paws, fenders or trunk - for easy upgrading your bike without changes in appearance.
Integrirana objemka sedežne opore
Integrated SeatPost Clamp combines minimalist design and low weight. It blends elegantly with the frame while contributing to the common aesthetics and capacity.
Montaža dodatkov na zgornjo cev
Dodatne pritrdilne točke na spodnji strani zgornje cevi omogočajo namestitev ključavnice ali orodja – brez ropotanja in vedno pri roki, tudi brez nahrbtnika.
SIC 2.0 (opcijsko)
Polintegriran prtljažnik SIC 2.0 poveča uporabnost vašega kolesa. Preprosto ga namestite in pretvorite kolo v mestnega, potovalnega ali vsakodnevnega spremljevalca – z lahkoto nosi torbe, prtljago ali nakupe.
Gravity Casting - Casting with gravity
Tehnologija Gravity Casting omogoča ulivanje tekočega aluminija v kompleksne oblike okvirja, kar rezultira v izjemno močnih in trdnih strukturah, odpornih na visoke obremenitve. Pri modelih Hybrid lahko Cube s to metodo oblikuje nosilec motorja, ki je posebej prilagojen za prenašanje obremenitev, ne da bi pri tem povečali težo ali žrtvovali vzdržljivost.
X-connect
The X-Connect system allows you to quickly and easily connect the compatible acid lamp. The connection is integrated into the steering bearing, and the cables are hidden inside the frame. Installation is extremely easy - just connect the lamp and you are ready to drive. Safe, clean and efficient.
Specifikacije
| Frame | Aluminum Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp | ||
| Frame material | Aluminum | ||
| Wheel size | Size Split: 27.5: S // 29: M L XL XXL | ||
| Speeds | 1x12 | ||
| Color | Black´n´metal | ||
| Fork | RockShox Recon Silver RL Air, Tapered, 15x100mm | ||
| Front fork input | 120mm (27.5: 100mm) | ||
| Zavore | Shimano Br-MT420, Hydr. DISC Brake (203) | ||
| Zavorni rotorji | 203/203mm | ||
| The steering bearing | ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2 "(ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface | ||
| The handlebar carrier | CUBE Performance Stem E-MTB 35, FPI-Link | ||
| Helm | Cube rise trail bar 35 | ||
| Handles | Acid react pro | ||
| Seat | Acid sequence pro 160 | ||
| Sedežna opora | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm | ||
| Driver | Acid MTB Hybrid Pro, 38t | ||
| Rear transmission | Shimano XT RD-M8100-SGS, Shadowplus, 12-Speed | ||
| Gear shifters | Shimano Deore SL-M6100-IR, Direct Attach | ||
| Chain protection | Reverse Flip-Guide e-Chain Guide, Direct Mount, I-Plate | ||
| Rear | Shimano Deore M6100, 10-51t | ||
| Coat | Schwalbe Smart Sam, Active, 2.60 | ||
| Anterior pesto | CUBE Engineered by Newmen, 15mm, Boost, Centerlock | ||
| Rear | CUBE Engineered by Newmen, 12mm, Boost, Centerlock | ||
| Ring | CUBE EX30, 32H, DISC, Tubeless Ready | ||
| Screen | Bosch Purion 200 with Integrated Display | ||
| Torch | Bosch PowerTube 800 | ||
| Charger | Bosch 2a | ||
| Motor | Bosch Drive Unit Performance Line CX 85Nm Gen.5, (BDU38), Smart System | ||
| Pedal | Acid PP MTB | ||
| Maximum thesis | 140 kg (cyclist weight + bicycle + equipment) | ||
| Weight | It starts at 24.6 kg |
A size table
Properly selected bike size is crucial for your safety and comfort. The appropriate size is selected based onour body height.
