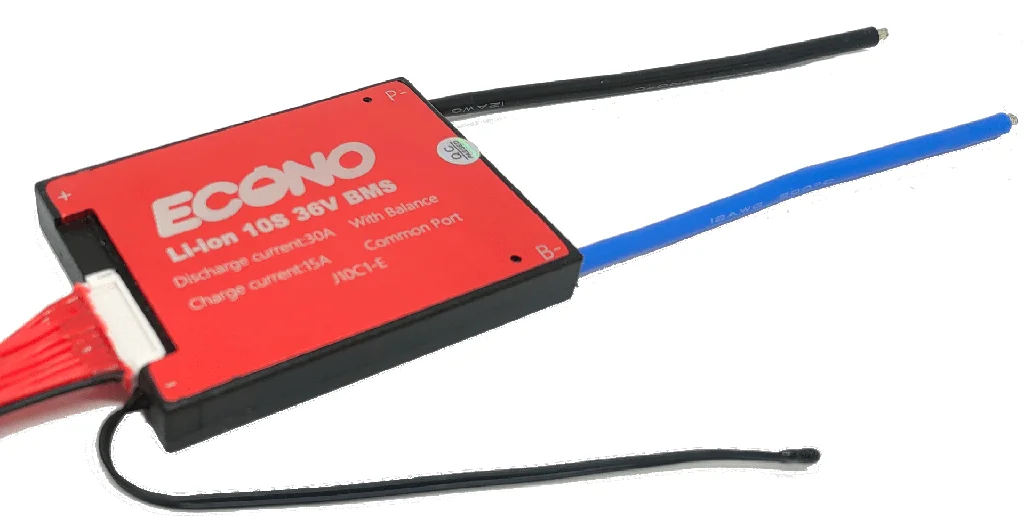

BMS ECONO 10S 36V 30A common port

BMS ECONO 10S 36V 30A common port

Code:
(0 review)
The BMS circuit is designed to protect and control the battery. It's designed for Li-ion cells.
29.41 € 29.41 € (Tax included)
Recommended retail price incl. VAT: 0.00 €

Estimated delivery:
  • Brand
Add to cart
Add to wishlist
Contact Us
About productSpecificationsPackage included

About product

The BMS circuit is designed to protect and control the battery. It's designed for Li-ion cells. BMS functions:

  • cell overcharging protection

  • cell overheating protection

  • oversupply protection

  • short-circuit protection

  • emptied protection

  • balancing cells (keeping all cells at the same voltage level)

Specifications

Rated voltage: 36v
No. consecutive branches: 10s
Min. voltage: 28v
Max. charging flow: 10a
Max. current cleared: 30a
Cell balancing: YES
Off temperature:
 65 ° C
Dimensions:
 34mm x 59mm x 9mm
Separate output for charger:
 NO

Package included

  • 1x BMS circuit Econo 10s 30a common port

  • 1x Besides the cell balancing cable

BSM CIRCUIT ECONO

The ECONO BMS circuit is designed to protect and control the battery. It's designed for Li-ion cells. BMS has a built-in temperature sensor and a range of other battery protection mechanisms. Next to BMS, a cell balancing cable is also available.

Rated voltage /binding: 36v /10s

Rated charging/ discharge current: 10a / 30a

Off-mode: 65°C

Dimensions: 34mm x 59mm x 9mm

BMS security features


Cell overcharging protection


Short-circuit protection


Cell overheating protection


Emptied protection


Over-current protection


Balancing cells

Keeping all cells at the same voltage level
