About

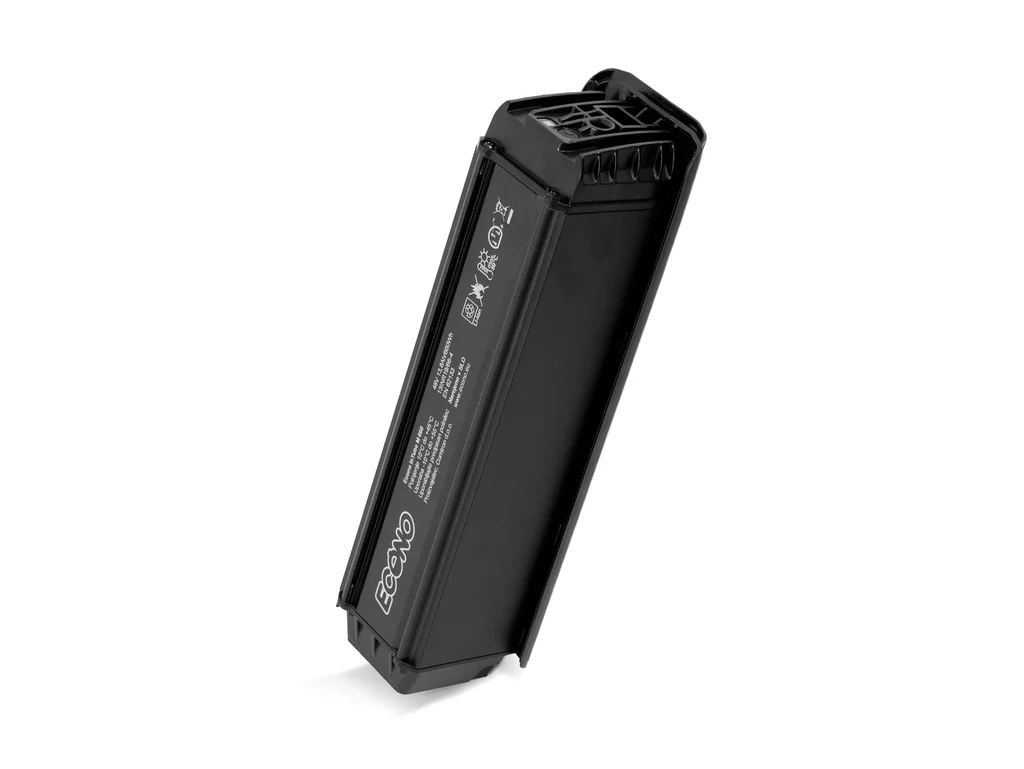

Econo Equus InTube L 730 battery is an ECONO e-bike battery, assembled in Slovenia. It has a capacity of 730Wh and a voltage of 36V. It is designed to be mounted inside the down tube of the bicycle frame. The battery comes with two keys, allowing you to lock it to the bike using the integrated lock.
The battery is compatible with ECONO Equus bikes. The battery has a charging port and a battery charge indicator. The battery capacity of 730Wh (20.3Ah) provides enough power for short trips around town as well as for countryside excursions. The battery is only compatible with the original Econo 2A or 4A charger with a 3-pin connector, which ensures greater safety and temperature monitoring during charging.
Easy to handle
The battery can be locked to the bike with a key. It can be charged on or off the bike.
Long battery life
The Econo Battery Management System (BMS) protects the Li-ion cells from operation in extreme conditions such as high temperatures, overvoltage.
No self discharging
Even after long periods of storage. This means that Econo rechargeable batteries do not need to be charged after a longer break (such as after winter).
No memory effect
Econo batteries can be charged at any time, regardless of the current charge level.
Pictures
Battery range
The graph below shows the maximum range of the ECONO Equus InTube L 730 battery in combination with different assist levels of the mid-drive motor at an average speed of 20km/h, a total weight of 100kg, on predominantly flat terrain.
Charge time
Our batteries needs to charge only with original ECONO charger.
Charger Econo / 2A 3pin
Charge to 50%
Približno 6 ur
Charge to100%
Približno 11 ur
Charger Econo / 4A 3pin
Charge to 50%
Približno 2,5 ure
Charge to 100%
Približno 5,5 ur
Specifications
| Capacity | 730Wh (20,3Ah) |
| Nominal voltage | 36V |
| Max. voltage | 42V |
| Min. voltage | 28V |
| Max. charging current | 4A |
| Charge temperature | from 10°C to 45°C |
| Discharge temperature | from -20°C to 50°C |
| DC port | 3 pin |
| Technology | Li-ion |
| Cell brand | Samsung |
| Dimensions | 42,5 x 9 x 8 |
| Weight | 4,41 kg |
| Included | Battery, instructions |
| Standard | EN 15194 |
| Warranty | 12 months |
Package include
Econo Equus InTube L 730
1x Instructions
