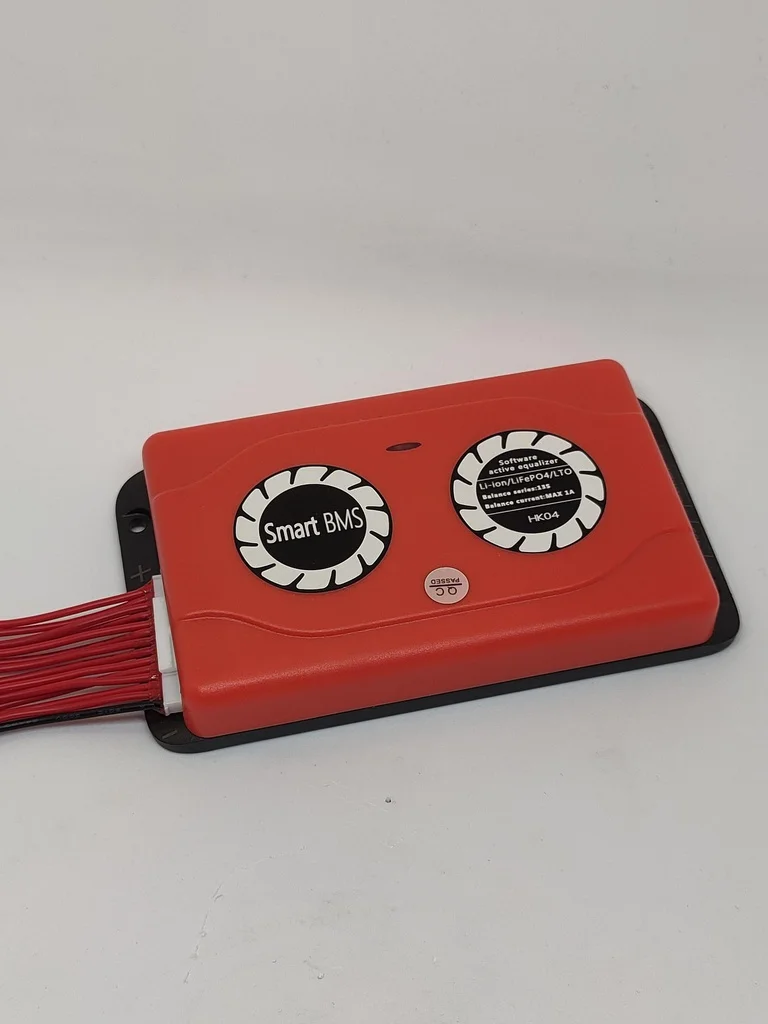

13S aktivni balanser Li-ion

13S aktivni balanser Li-ion

Code:
(0 review)
O izdelkuSpecifikacijeObseg paketa

O izdelku

BMS vezje je namenjeno za zaščito in nadzor baterije. Namenjeno je za Li-ion celice. Funkcije BMS-a:

  • zaščita pred prenapolnjenostjo celic

  • zaščita pred pregrevanjem celic

  • zaščita pred prevelikim tokom

  • zaščita pred kratkim stikom

  • zaščita pred izpraznitvijo

  • balansiranje celic (ohranjanje vseh celic na enakem napetostnem nivoju)

Specifikacije

Nazivna napetost:36V
št. zaporednih vej:10s
Min. napetost:28V
Max. tok polnjenja:8A
Max. tok praznjena:16A
Balansiranje celic:DA
Temperatura izklopa:
65°C
Dimenzije:
34mm x 59mm x 9mm
Ločen izhod za polnilec:
NE

Obseg paketa

  • 1x BMS vezje ECONO 10s 16A common port

  • 1x Kabel za balansiranje celic

BSM VEZJE ECONO

BMS vezje ECONO je namenjeno za zaščito in nadzor baterije. Namenjeno je za Li-ion celice. BMS ima vgrajen senzor temperature in vrsto drugih mehanizmov za zaščito baterije. Zraven BMS se dobi tudi kabel za balansiranje celic.

Nazivna napetost / vezava: 36V / 10s

Nazivni tok polnjenja / praznjenja: 10A / 16A

Temperatura izklopa: 65°C

Dimenzije: 34mm x 59mm x 9mm

Zaščitne funkcije BMS-a


Zaščita pred prenapolnjenostjo celic


Zaščita pred kratkim stikom


Zaščita pred pregrevanjem celic


Zaščita pred izpraznitvijo


Zaščita pred prevelikim tokom


Balansiranje celic

Ohranjanje vseh celic na enakem napetostnem nivoju

58.92 € 58.92 € (Tax included)
Recommended retail price incl. VAT: 0.00 €

Estimated delivery:
  • Brand
Add to cart
Add to wishlist
Contact Us
About productSpecificationsPackage included

About product

The BMS circuit is designed to protect and control the battery. It's designed for Li-ion cells. BMS functions:

  • cell overcharging protection

  • cell overheating protection

  • oversupply protection

  • short-circuit protection

  • discharge protection

  • balancing cells (keeping all cells at the same voltage level)

Specifications

Rated voltage:36V
No. consecutive branches:10s
Min. voltage:28V
Max. charging current:8A
Max. current emptying:16A
Cell balancing:YES
Temperature off:
65°C
Dimensions:
34mm x 59mm x 9mm
Separate output for charger:
NO

Package included

  • 1x BMS circuit ECONO 10s 16A common port

  • 1x Cable for balancing the cells

BSM CIRCUIT ECONO

The ECONO BMS circuit is designed to protect and control the battery. It's designed for Li-ion cells. BMS has a built-in temperature sensor and a range of other battery protection mechanisms. Next to the BMS, also a cable for balancing the cell balancing is available.

Rated voltage / binding: 36V / 10s

Rated charging / discharge current: 10A / 16A

Temperature Off-mode: 65°C

Dimensions: 34mm x 59mm x 9mm

BMS security features


Cell overcharging protection


Short-circuit protection


Cell overheating protection


Emptied protection


Over-current protection


Balancing cells

Keeping all cells at the same voltage level
