About product
The enthusiastic explorers of your search are over: The Cube Aim Pro is an affordable, powerful bike you need to propel your off-road passions. A lightweight and agile aluminium frame, together with a set of reliable and powerful components, is an ideal choice for exploring unpaved cycling routes.
Despite the good price, do not miss many details, such as the internal wiring of the cables for elegant appearance and the smooth operation of the gear assembly with minimal maintenance and integrated attachments for mounting the rear trunk and muzzles. The Size Split system allows each cyclist to find the perfect bike for themselves.
Technology
Aluminium Lite
Aluminium alloy 6061 is resistant to corrosion and load and is suitable for lightweight tubes with high rigidity.
Advanced hydroforming
This method of production reduces the number of welds, reduces the mass of the frame and increases its durability.
Comfortable Geometry
With a special frame, you can comfortably travel longer distances.
Hydraulic brakes
Hydraulic brakes for maximum braking power in all conditions.
Quick Release Axle
QR Axle for faster removal and fixing of wheels.
Size Table
The rightly selected bike size is key to your safety and comfort. We choose the appropriate size based on our height.
Specifications
| Frame | Aluminum Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready | ||
| Fork | SR SUNTOUR XCE, 100 mm | ||
| Rear shock | - | ||
| Wheel size | Size Split: 27.5':XS, S/29'': M, L, XL, XXL | ||
| Number of gears | 24 gears | ||
| Front gear lever | Shimano Altus SL-M315, Rapidfire-Plus, 3 gears | ||
| Rear gear lever | Shimano Altus SL-M315, Rapidfire-Plus, 8 gears | ||
| Front derailleur | Shimano FD-TY700-TS6, Topswing, 31.8 mm Clamp | ||
| Rear derailleur | Shimano Tourney RD-TX800 | ||
| Crank | Shimano FC-TY501, 42x34x24t, 170 mm | ||

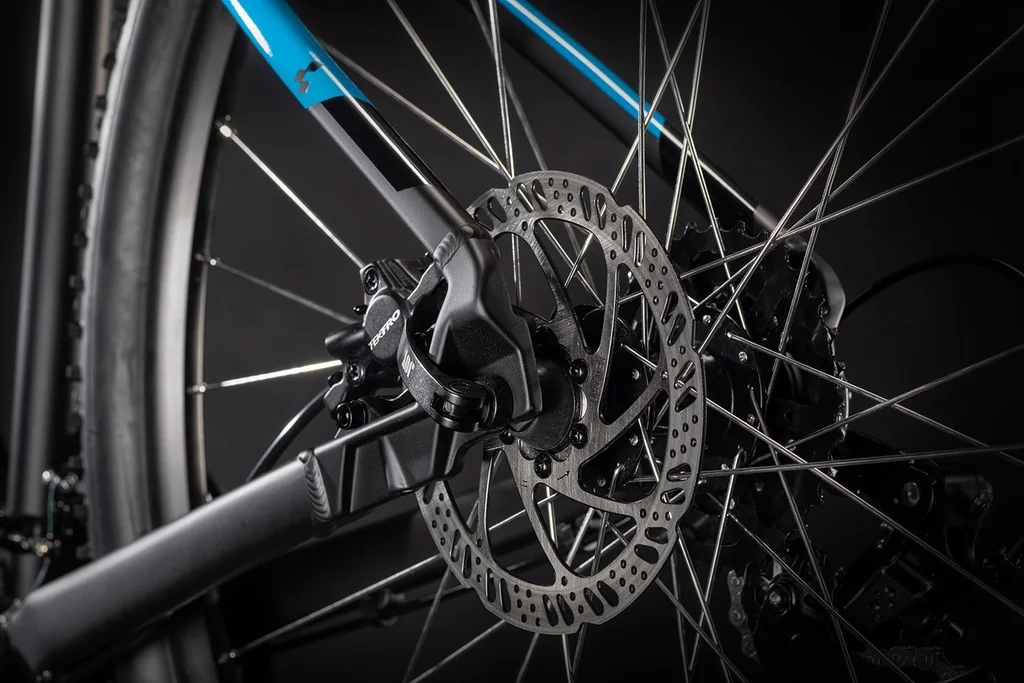

| Front brake | Tektro MD-275, hydraulic disc brakes | ||
| Rear brake | Tektro MD-275, hydraulic disc brakes | ||
| Front brake disc | 160 mm | ||
| Rear brake disc | 160 mm | ||
| Tyres | CUBE IMPAC Smartpac, 2.1 | ||
| Rims | CUBE ZX20, 32 holes, disk | ||
| Front hub | Cube Alloy Light, QR, 6-Bolt | ||
| Rear hub | Cube Alloy Light, QR, 6-Bolt | ||
| Rear sprockets | Shimano CS-HG200, 12-32T | ||
| Handlebar | Cube rise trail bar, 680 mm | ||
| Stem | CUBE Performance Stem, 31.8 mm | ||
| Seat post | CUBE Performance Post, 27.2 mm | ||
| Seat | Natural Fit Wreath Lite | ||
| Pedal | Cube pp mtb | ||
| Load capacity | 130 kg | ||
| Weight | 14.4 kg |
Package included
1x MOUNTAIN BIKE AIM Pro 2021
1x Navodila za uporabo in garancijski list
